9.14 Document Detection Sensor PCB/First Side Document Scanning Position
Sensor PCB/Second Side Document Scanning Position Sensor PCB
(1) Release the Hook, remove the Document detection sensor PCB, and disconnect
the Document detection sensor harness.
(2) Release the Hook, remove the First side document scanning position sensor PCB,
and disconnect the First side document scanning position sensor harness.
(3) Release the Hook, remove the Second side document scanning position sensor
PCB, and disconnect the Second side document scanning position sensor harness.

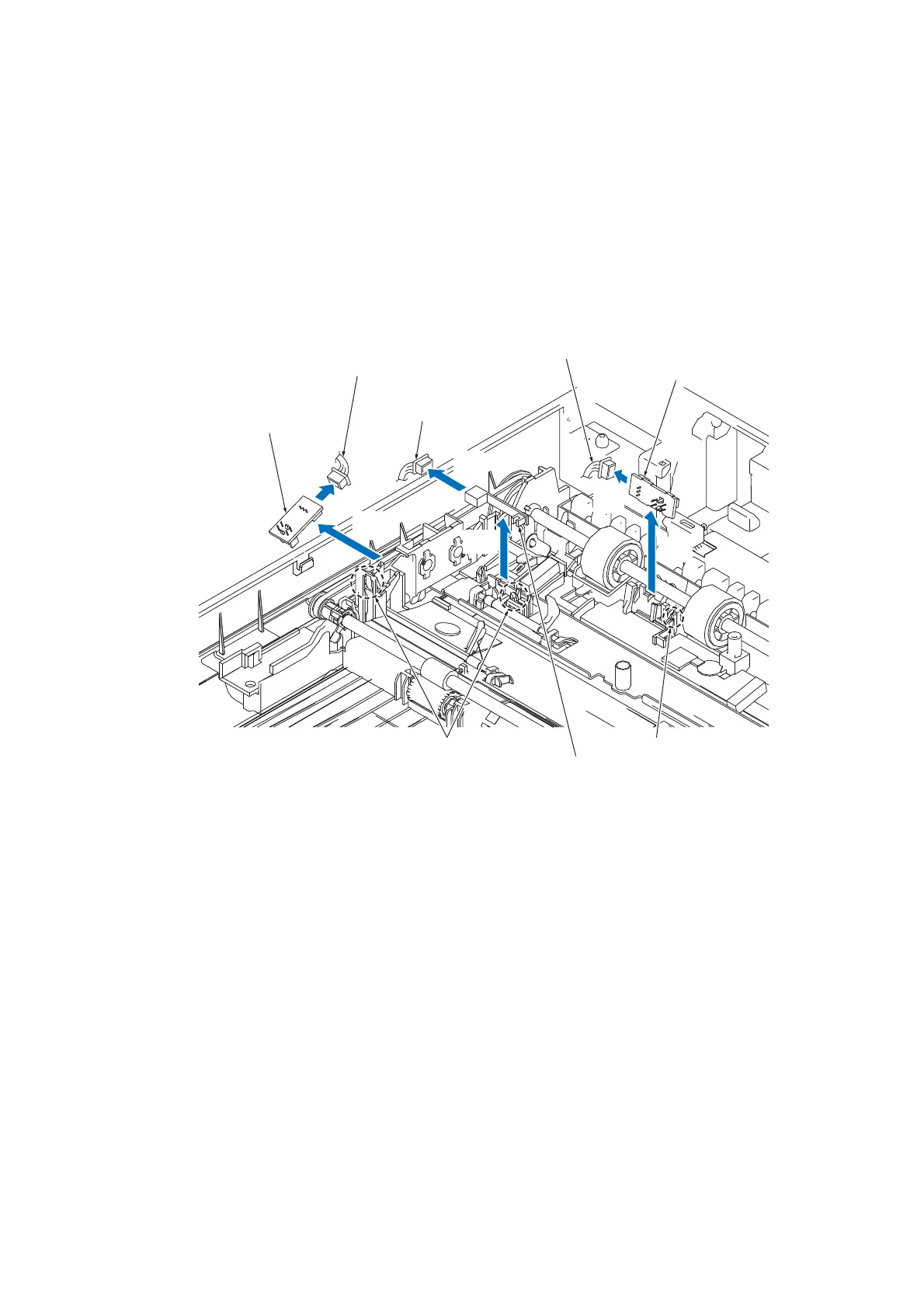

Fig. 3-39
Second side document
scanning position
sensor harness
First side document scanning
position sensor harness
First side document scanning
position sensor PCB
Document detection
sensor harness
Document detection
sensor PCB
Hooks
Hook
Second side document scanning
position sensor PCB
1a
1b
3a
3b
2a
2b
