Chapter 3 Featured Functions

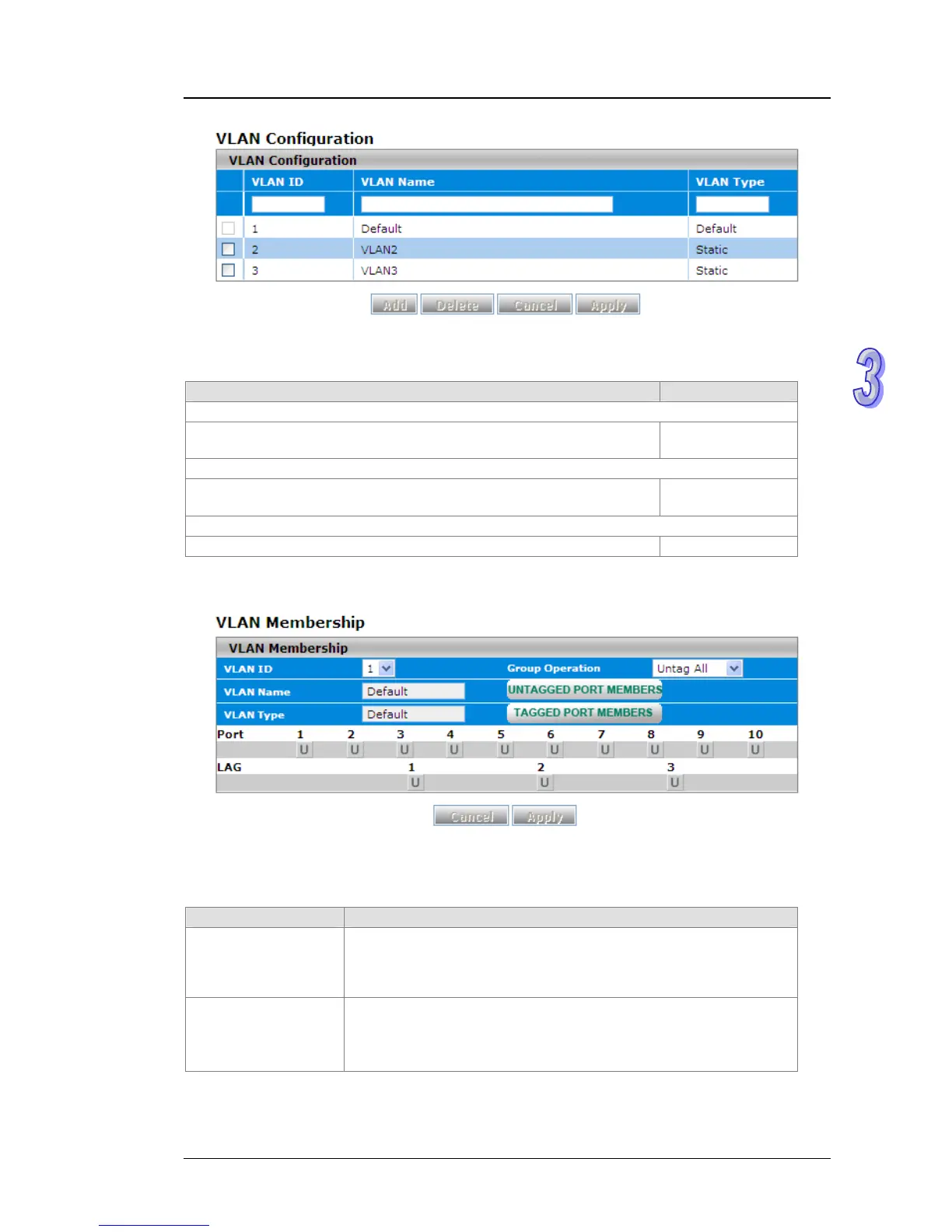

VLAN Configuration
Description Factory Default
VLAN ID
Enter the identifier for the new VLAN. The range can be set in the
range of 1 to 4094.
None
VLAN Name
Enter a name for the VLAN. The name can be up to 32 alphanumeric
characters long, including blanks.
None
VLAN Type
When you create VLAN, the VLAN type always displays Static. Static
3.4.2 VLAN Membership
An interface or LAG can be a tagged (T) or untagged (U) VLAN member.
VLAN Square Status
Status Description
blank square (Auto)
If the interface or LAG is not a member of VLAN, the square must
keep blank. The port currently is not the static member of the VLAN,
but it can be added dynamically by other protocol, for example by
GVRP.
T (Tagged)
If the square status of the interface or LAG is T, frames transmitted
from the interface or LAG is tagged with the port VLAN ID.
Click Tagged Port Members to view which interfaces and LAGs are
tagged.
3-57
