Section 7 — Effect Parameters TS-12 Musician’s Manual
38
ON Range: -96 to +00 dB
Sets the upper threshold level at which the noise gate passes audio. This higher second threshold
prevents false “turn ons.”
RELEASE Range: 1 msec to 10.0 sec
Sets the amount of time after the signal has elapsed for the noise gate to shut down. For a longer
sustain, set this parameter higher.
HIGH FC Range: 4 to 1000 Hz
Filters out the low frequencies of the main amp prior to the speaker. The higher the value, the
less low frequencies pass through.
LOW FC Range: 2.0 to 15.0 KHz
Filters out the high frequencies of the speaker. The lower the value, the less high frequencies
pass through. True speaker emulations are provided as separate algorithms.
MID-1 FC Range: 0000 to 9999 Hz
Determines the filter center-frequency of the parametric in the main amp stage. Higher values
have a brighter sound.
Q Range: 1 to 18
Determines the width of the resonant peak at the filter center. While the Filter center parameter
determines where (at what-frequency) this peak will occur, the Q setting controls the presence of
the peak.
LEVEL Range: -48 to +24 dB
Adjusts the amount of boost or cut applied to the main amp parametric.
MID-2 FC Range: 0000 to 9999 Hz
Determines the filter center-frequency of the second parametric in the main amp stage. Higher
values have a brighter sound.
Q Range: 01 to 18
Determines the width of the resonant peak of the second filter center.
LEVEL Range: -48 to +24 dB
Adjusts the amount of boost or cut applied to the second main amp parametric.
66 VCF- -DISTORTION- -VCF
VCF- -DISTORTION- -VCF combines a voltage control filter, a raspy distortion, and a second
voltage control filter. Three effects can be obtained: Distortion, Wah-wah, and Auto-wah. The
last two functions use the same VCF. These filters can be disabled or used as EQ if desired. The
second VCF that exists after the distortion can be set to act like a simple speaker simulator, or it
can be modulated in parallel with the pre-distortion VCF.

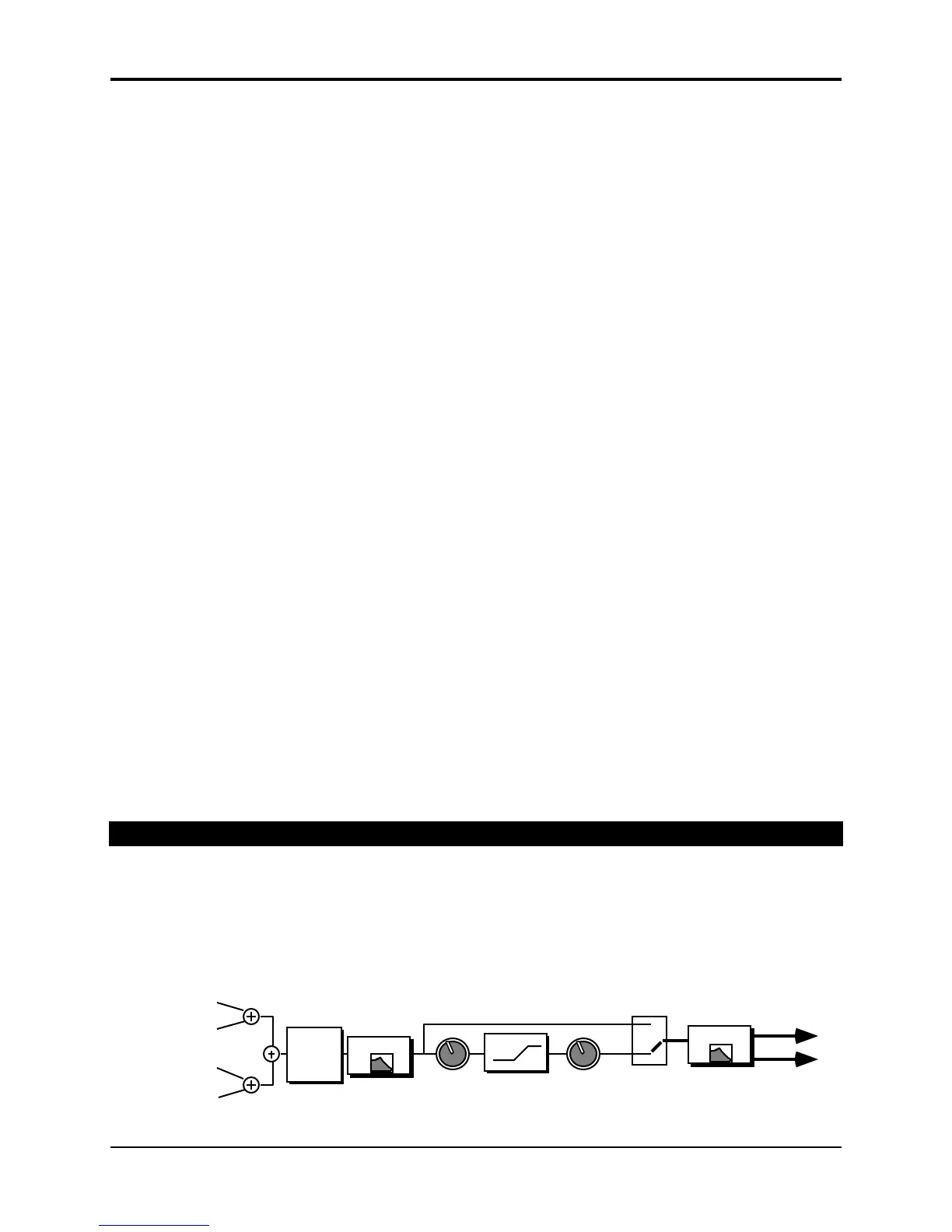

VCF- -DISTORTION- -VCF Signal Routing
R
L
Main
Outputs
Distortion
Level In
Post-Dist
VCF
Pre-Dist
VCF
Distortion
Level Out
Clip
Env Fol
Env FolDistortion
Bypass
Variable
HiPass
Filter
FX1 Left
FX2 Left
FX1 Right
FX2 Right
