TS-12 Musician’s Manual Section 15 — Sampled Sound Parameters
7
ENV1, ENV2, ENV3 Pages
The ENV1, ENV2, and ENV3 Pages, parameters and ranges are all the same except where
indicated below. We will use ENV3 as our example, since its effect on the volume of the
WaveSample is immediately apparent.

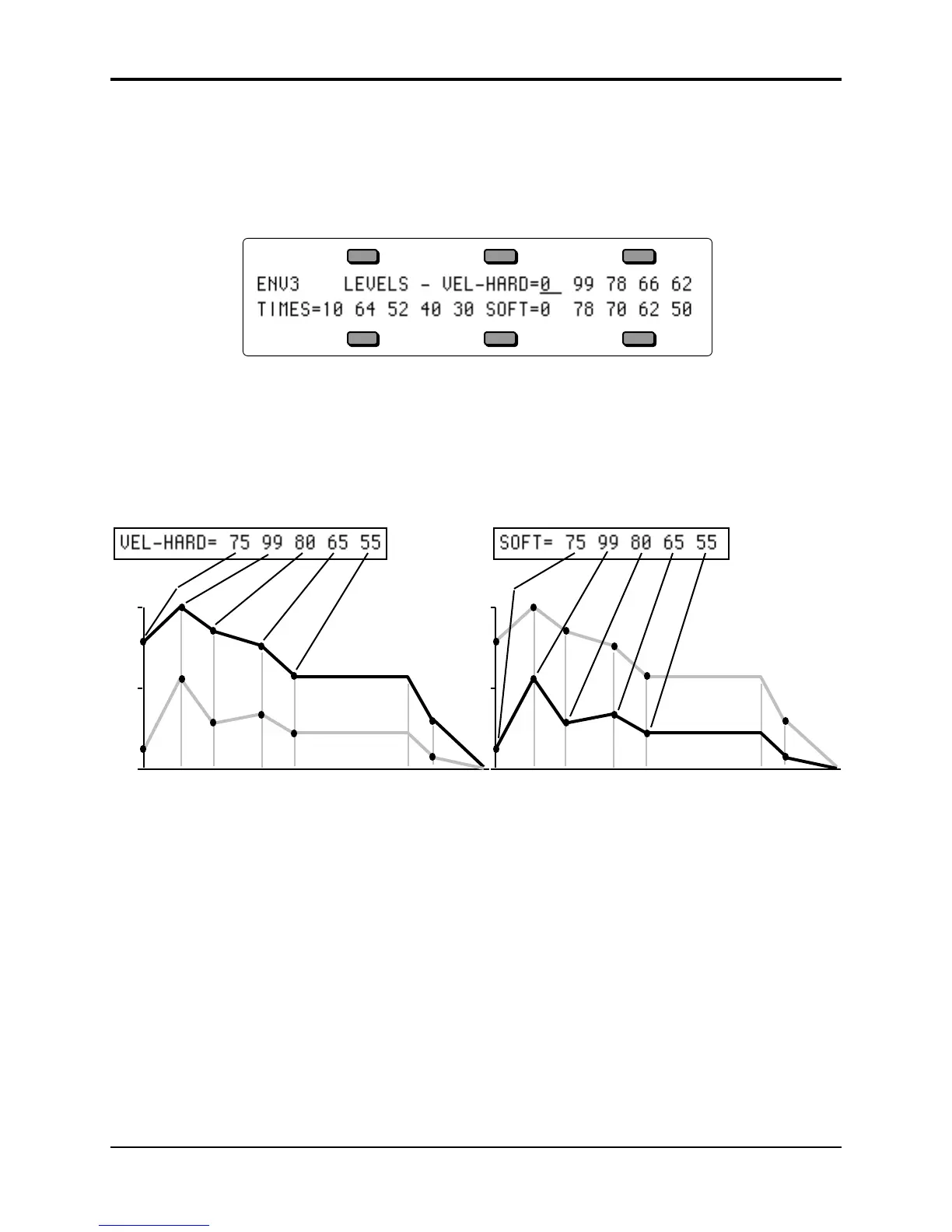

Press the Env 3 button. The display shows the first ENV3 sub-page.
LEVELS - VEL-HARD Ranges: 0 to 99
VEL-HARD shows the five levels for the envelope that will be used with maximum velocity.
Level-1 is the initial level. In a traditional ADSR shape, Level-1 is always set to zero. Level-5 is
the sustain level.
LEVELS - SOFT Ranges: 0 to 99
SOFT shows the five levels for the envelope that will be used with minimum velocity.
99
3
1
2
4
5
0
3
1
2
4
5
TIMES Ranges: 0 to 99
TIMES shows five time parameters. The first four are the times between the five levels. The fifth
time is the (first) release time.
Note that the numbers shown here represent times, not rates. That is, the envelope will take a
fixed amount of time to go from one level to another no matter how close together or far apart
those two levels are.
