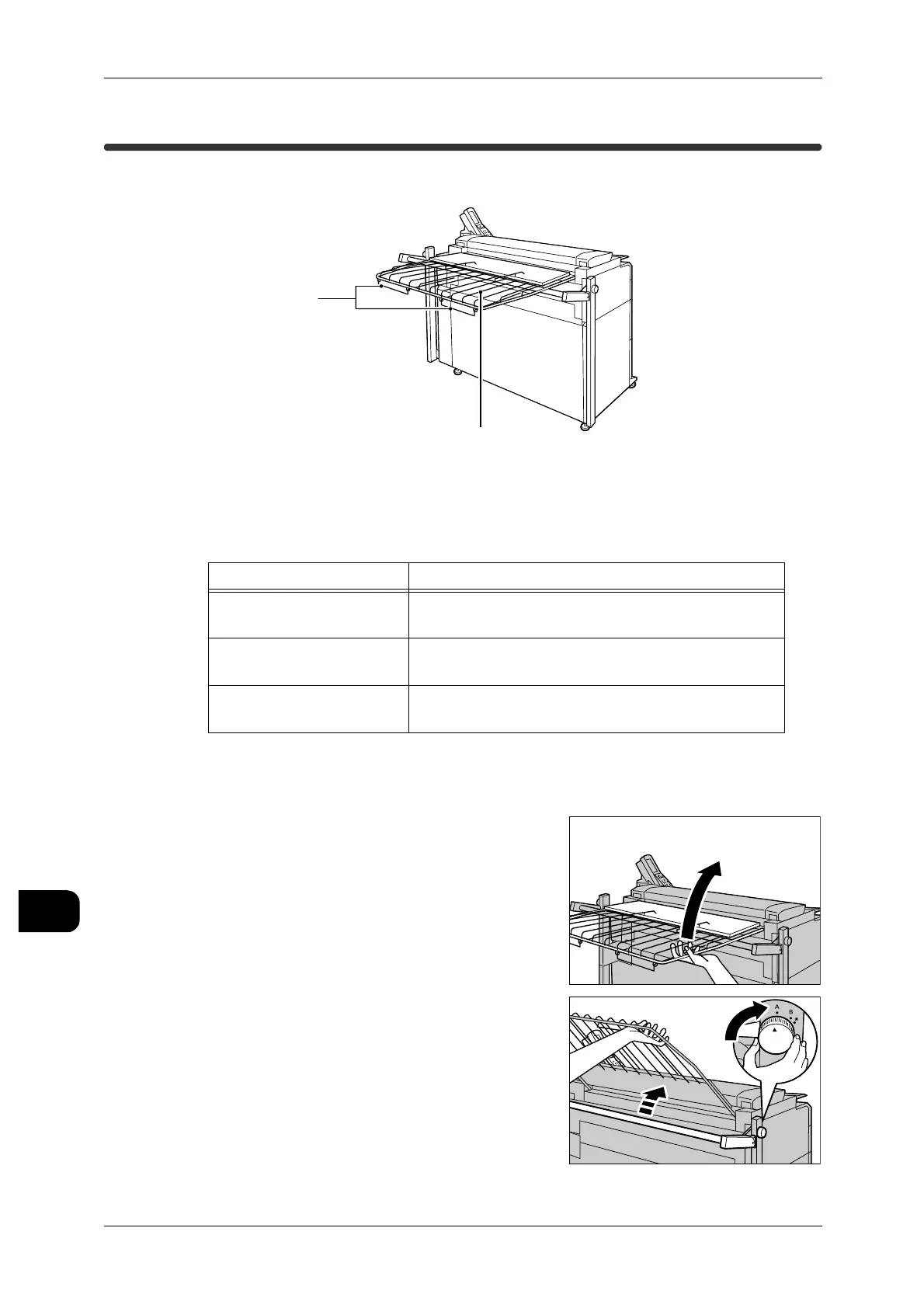

Document Catch Tray
A tray on which documents ejected from the rear of this machine are stocked flatly.
The document catch tray can hold up to 50 documents of the same size of normal 36"
size normal paper or smaller.
You can adjust the angle of the document catch tray between 4/23/29 degrees by
using the dials located on both sides as needed.
Note • Our customer engineers install the document catch tray.
1 Lift the document catch tray with one hand.
2 Turn the indicator of one dial with the other hand
according to the purpose.
3 Turn the other dial to the same position.
Position of Indicator Purpose
A
Adjusts the angle of the document catch tray to
about 4 degree for normal use.
B
Adjusts the angle of the document catch tray to
about 23 degrees when the Simple Folder is used.
＊
Adjusts the angle of the document catch tray to
about 29 degrees for clearing paper jams.
Extension tray
Document catch tray
