Replacing the Pick Roller
Replace the pick roller in following procedure.
1 Turn off the scanner, unplug the power cable and wait for at least 15 minutes.
For details, refer to How to Turn the Power OFF (page 56).
2 Remove all documents from the ADF paper chute (feeder).
3 Remove the ADF paper chute (feeder).

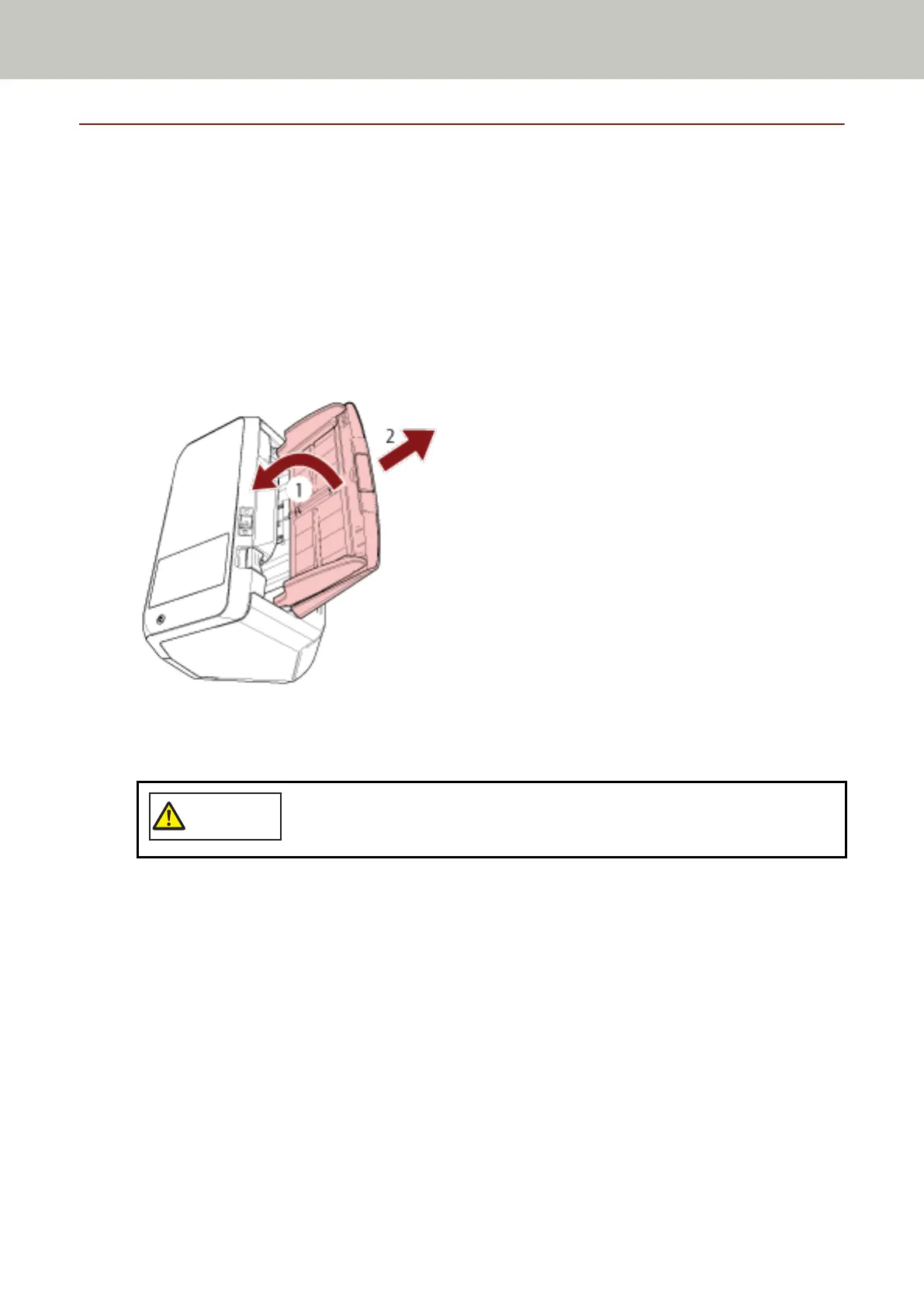

Hold both ends of the ADF paper chute (feeder), then lift it in the direction of arrow 1 and pull it out in the
direction of arrow 2.
4 Open the ADF.
For details, refer to How to Open the ADF (page 62).
When the ADF is open, it might close accidentally. Be careful not to get your fingers
caught.
5 Remove the pick roller.
Replacing the Consumables
132
To Next Page
