175/175 /30 MVA

230/115 /13.8 kV

YNynd1

Phase & amplitude

Correction

Zero sequence filtering

Phase & amplitude

Correction

Zero sequence filtering

Protected

zone

P643

V03117

Phase & amplitude

Correction

Zero sequence filtering

+5% / -15%

19 taps

1200 :5

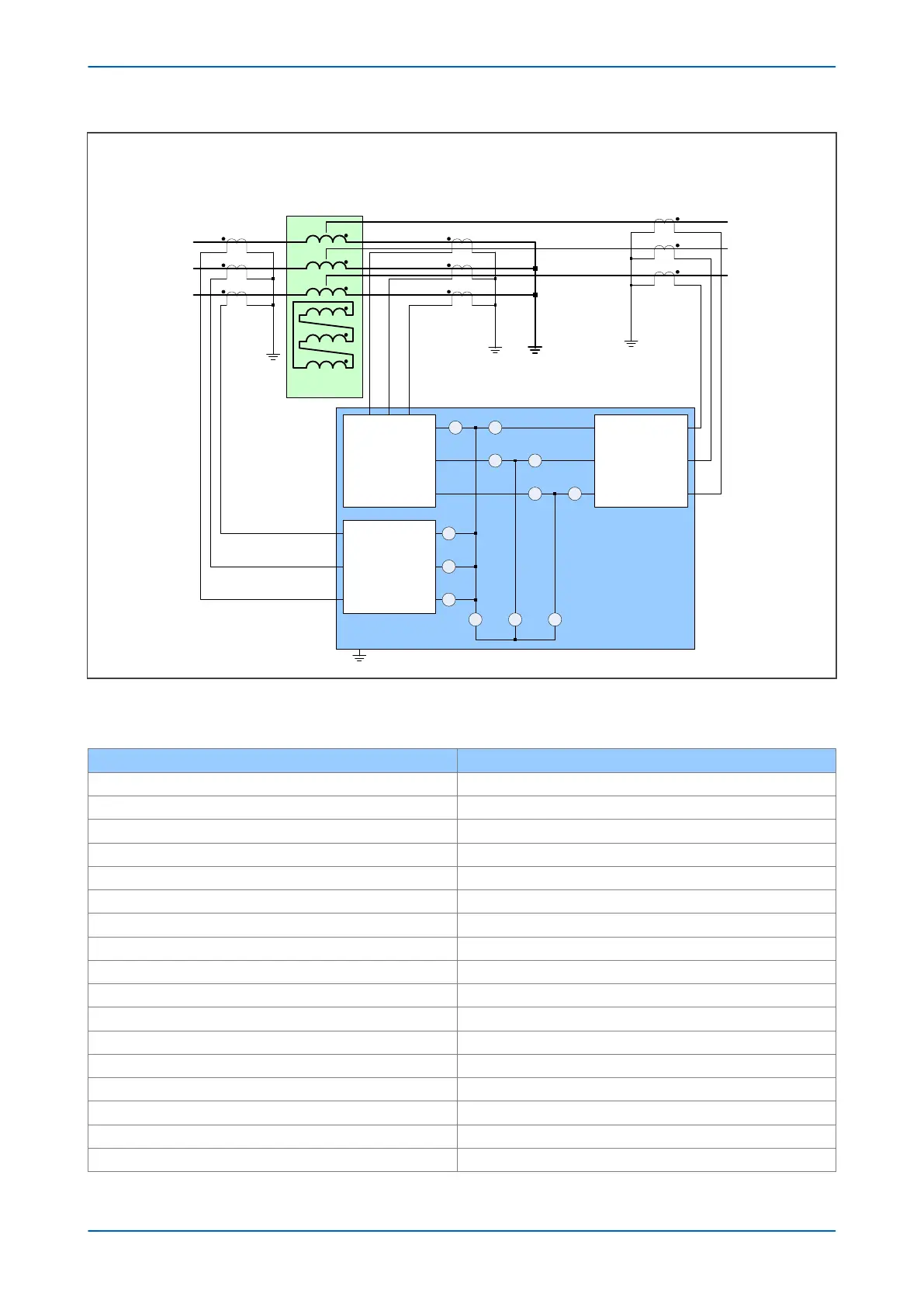

Figure 54: P643 used to protect an autotransformer with unloaded delta winding

Set the following parameter

s in the SYSTEM CONFIG column:

Setting in GROUP 1 SYSTEM CONFIG Value

Winding Config HV+LV+TV

Winding Type Auto

HV CT Terminals 001

LV CT Terminals 100

TV CT Terminals 010

Ref Power S 175.00 MVA

Ref Vector Group 0

HV Connection Y-Wye

HV Grounding Ungrounded

HV Nominal 230.0 kV

HV Rating 175.00 MVA

% Reactance 10.00%

LV Vector Group 0

LV Connection Y-Wye

LV Grounding Ungrounded

LV Nominal 230.00 kV

LV rating 175.00 MVA

Chapter 6 - Transformer Differential Protection P64x

128 P64x-TM-EN-1.3
