Start
Read status word from
register 3x0001
Is disturbance bit
(bit 4) set?
Select next oldest non-
extracted record by writing
0x04 to register 4x00400
Send command to accept
and select next record by
writing 0x0C to register
4x00400
Extract disturbance record
Yes
No
FirstTime = True
FirstTime = True
Is FirstTime =
True?
Yes
No
FirstTime = True
FirstTime = False
Error

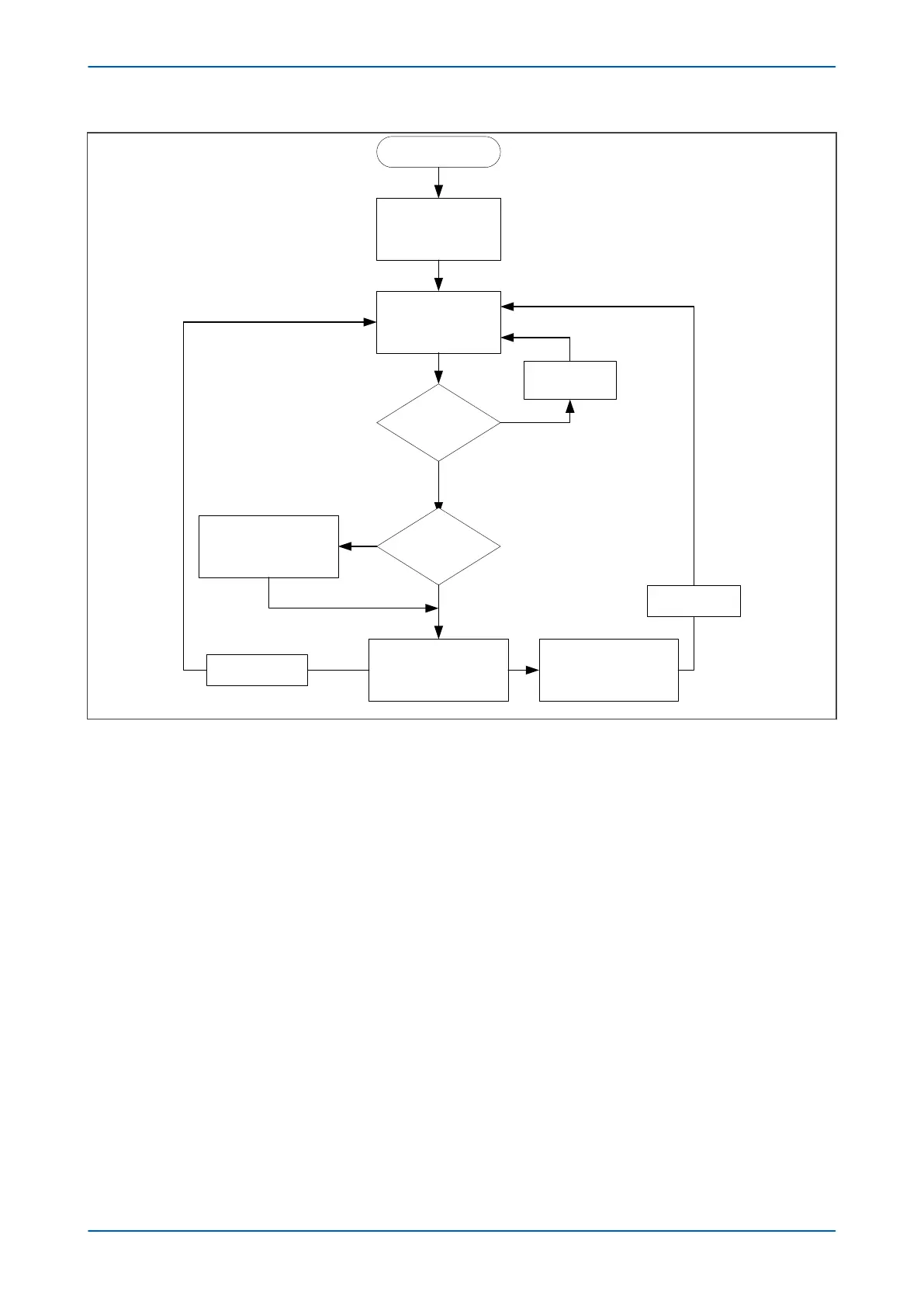

Figure 157: Automatic selection of disturbance record - method 2
6.4.6.3 EXTRACTING THE DISTURBANCE DATA
The extraction of the disturbance record is a two-stage process that involves extracting the configuration file first
and then the data file. fir
st the configuration file must be extracted, followed by the data file:
