Step 17g: Detach the four-port Ethernet PCI card from the riser
card
To detach the four-port Ethernet PCIcard from the riser card:

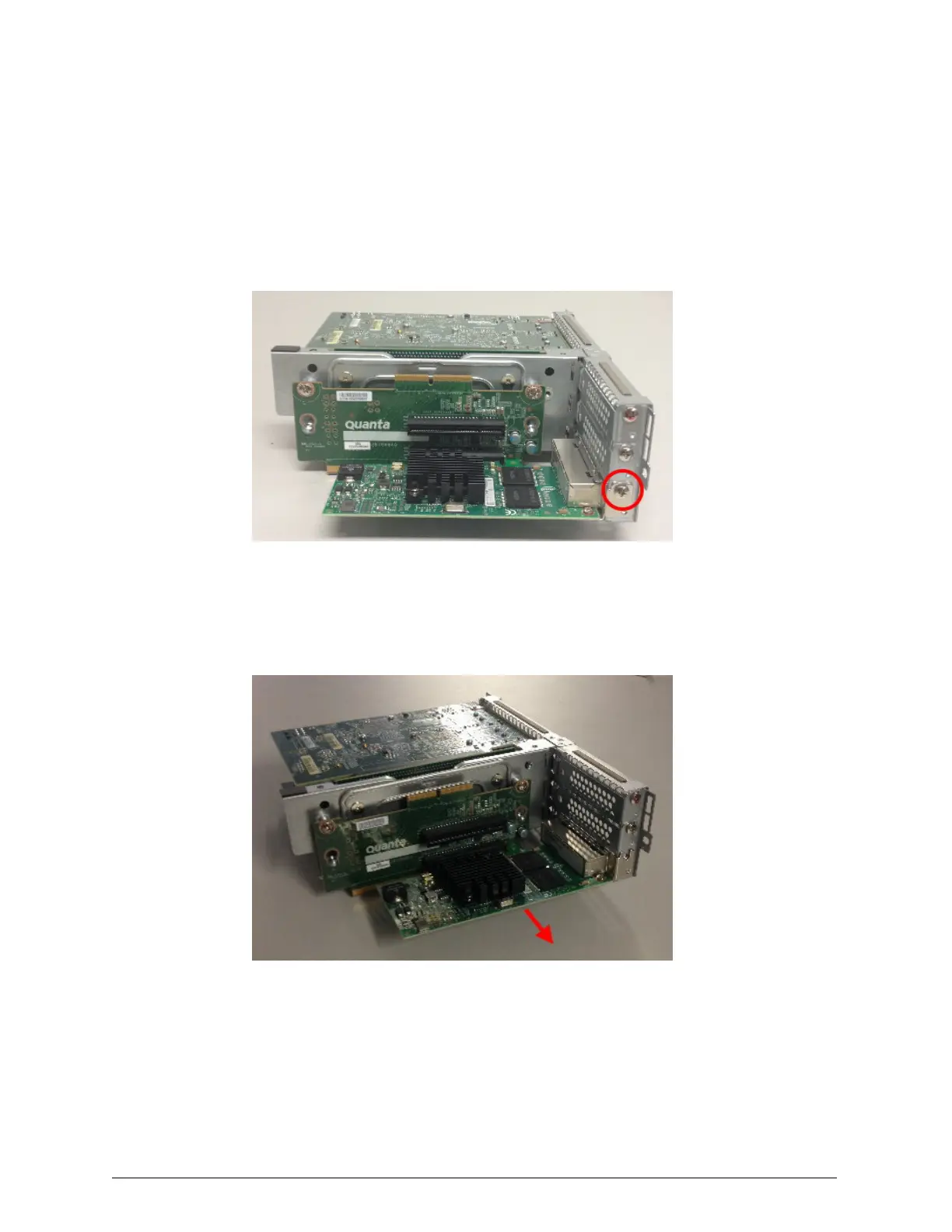

1. Using the #2 Phillips screwdriver, unscrew the bottom screw in the lip at
the edge of the shorter side of the riser card bracket.
2. While holding the four-port Ethernet PCI card by the middle of its long
edge, gently but firmly pull the PCI card away from the riser card so that
the pins on the PCI card come straight out of the PCIconnector on the
riser card.
Chapter 4: Refurbishing an HCP S30 Node
91
