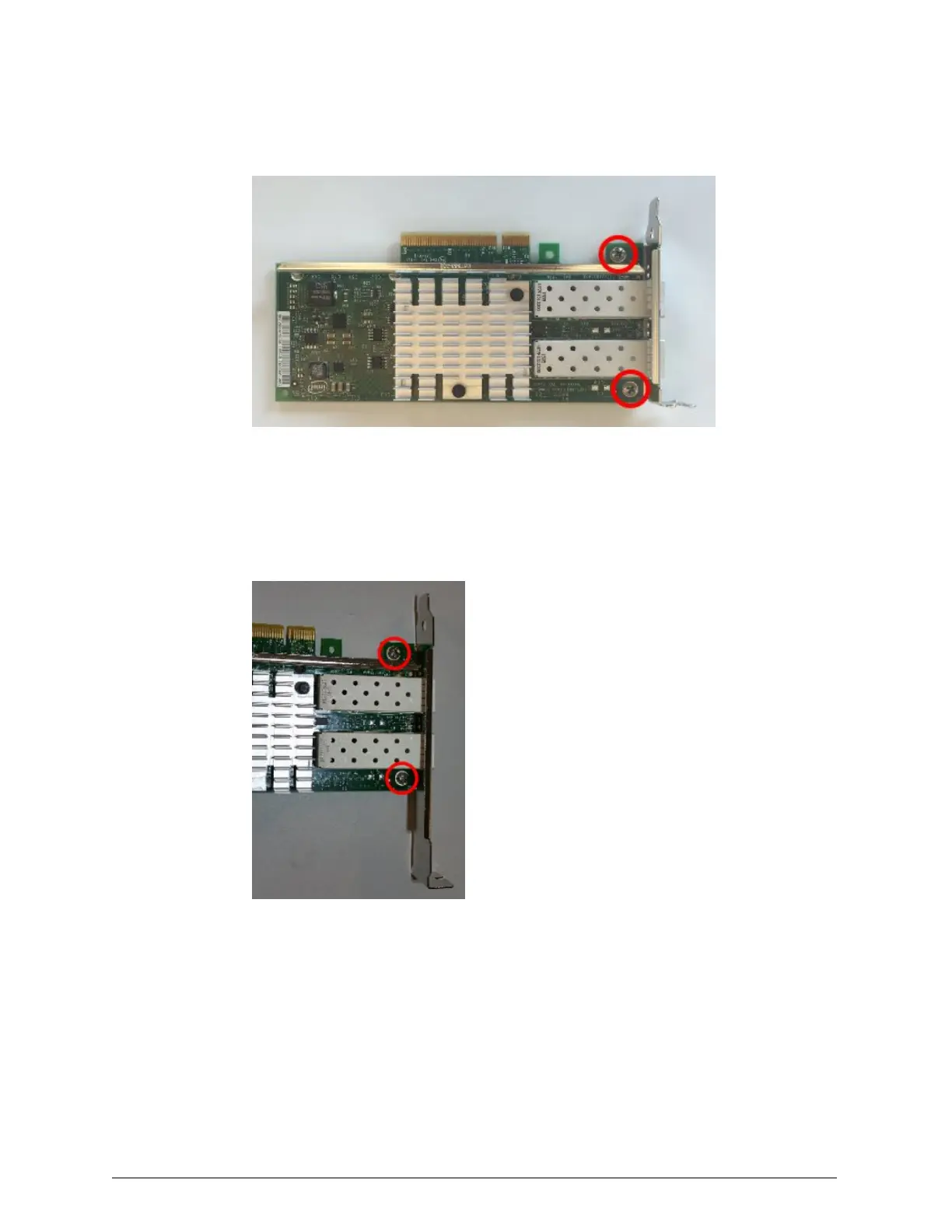

5. Using the #1 Phillips screwdriver, unscrew the two screws that attach
the short face plate to the PCIcard.
6. With the lip of the long face plate under the edge of the PCI card, align
the screw holes in the face plate with the screw holes in the PCIcard.
7. Screw the two screws you removed from the PCI card back into the holes
on the card to attach the long face plate to the card.
8. Pack the two-port Ethernet SFP+ PCIcard and the short face plate in the
applicable packaging.
Step 17i: Detach the SAS PCI cards from the riser card
Two SAS PCI cards are attached to the riser card. You need to detach both
of them.
Chapter 4: Refurbishing an HCP S30 Node
95
HCP S Series Node Refurbishment
Step 17: Unrack, disassemble, and pack the server modules
