inner mounting rails attached to it. In this case, too, you need to remove
the inner rails from the enclosure.

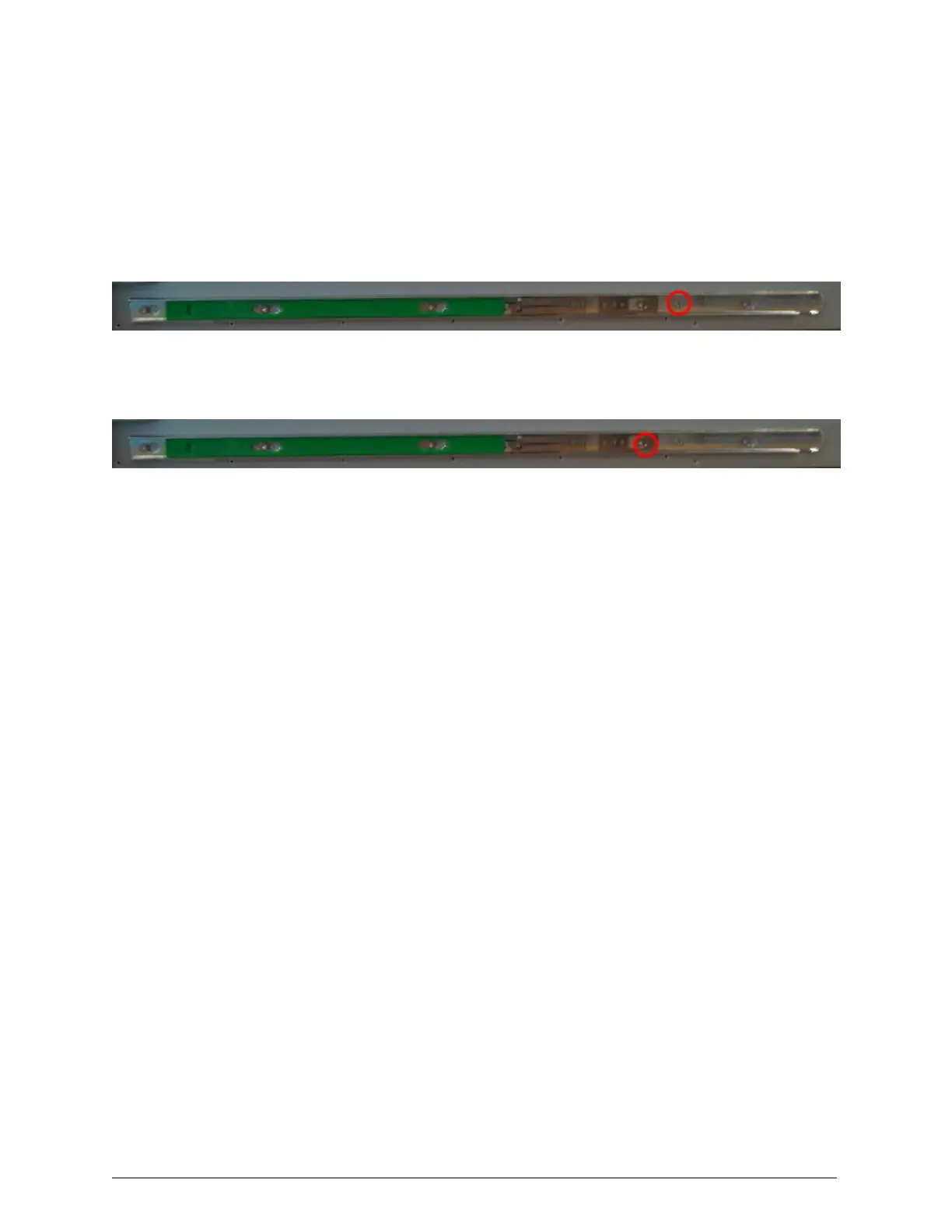

To remove the inner rails from the enclosure, for each inner rail:
1. Using the #1 Phillips screwdriver, unscrew and remove the silver chassis
screw that attaches the rail to the enclosure.
2. While lifting the silver tab on the rail, slide the rail toward the front of
the enclosure as far as the rail goes. Then pull the rail off the enclosure.
3. Put the silver chassis screw in its original bag from the box for the
enclosure mounting rails or in a bag that you supply.
Step 18g (conditional): Remove the outer enclosure rails from
the rack
If the enclosure was returned racked, after removing the enclosure from the
rack, you need to remove the outer enclosure mounting rails from the rack.
Removing an outer enclosure rail from the rack requires two people — one
at the front of the rack and one at the rear.
To remove an outer enclosure rail from the rack:
•
At the front of the rack, using the #2 Phillips screwdriver, unscrew and
remove the six screws that attach the front of the rail to the rack.
While unscrewing the top two screws, hold onto the screw plate and
shelf locking bracket so they don't fall. While unscrewing the last screw,
support the rail with your other hand so the rail doesn't fall.
•
At the rear of the rack, using the #2 Phillips screwdriver, unscrew and
remove the four screws that attach the back of the rail to the rack.
While unscrewing the screws, hold onto the screw plate so it doesn't fall.
While unscrewing the last screw, support the rail with your other hand
so the rail doesn't fall.
Chapter 4: Refurbishing an HCP S30 Node
123
HCP S Series Node Refurbishment
Step 18: Unrack and pack the enclosures
