3. Using the #1 Phillips screwdriver, screw the pin back in. Tighten the pin.
Step 20 (conditional): Insert the inner enclosure rails into
the outer rails
If the inner enclosure mounting rails are separated from the outer enclosure
mounting rails, you need to insert each inner rail into the corresponding
outer rail. Insert the left inner rail into the left outer rail. Insert the right
inner rail into the right outer rail.
To insert an inner enclosure mounting rail into an outer enclosure mounting
rail:

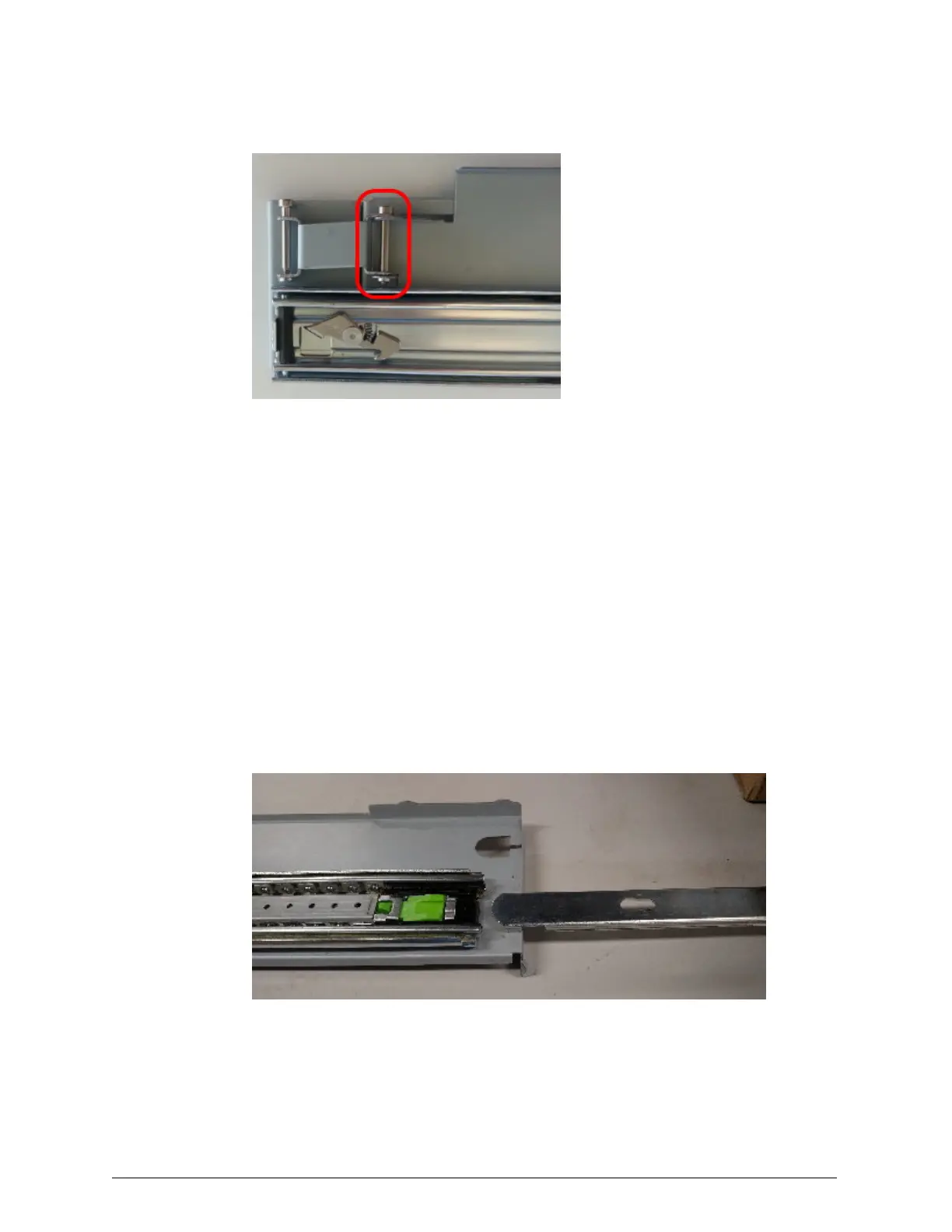

1. With the flat side of the inner rail facing away from the outer rail, align
the rear of the inner rail (the end with the rounded edge) with the slider
on the outer rail at the front of the outer rail.
2. Slide the inner rail into the slider on the outer rail until the inner rail
clicks into place.
54
Chapter 3: Refurbishing an HCP S10 Node
HCP S Series Node Refurbishment
Step 20 (conditional): Insert the inner enclosure rails into the outer rails
