Step 17j: Reinsert the riser card into the server module
To reinsert the riser card into the server module:
1. Pull up the handle in the riser card.
2. Using the handle to hold the riser card, align the card with the server
module so that:
¡

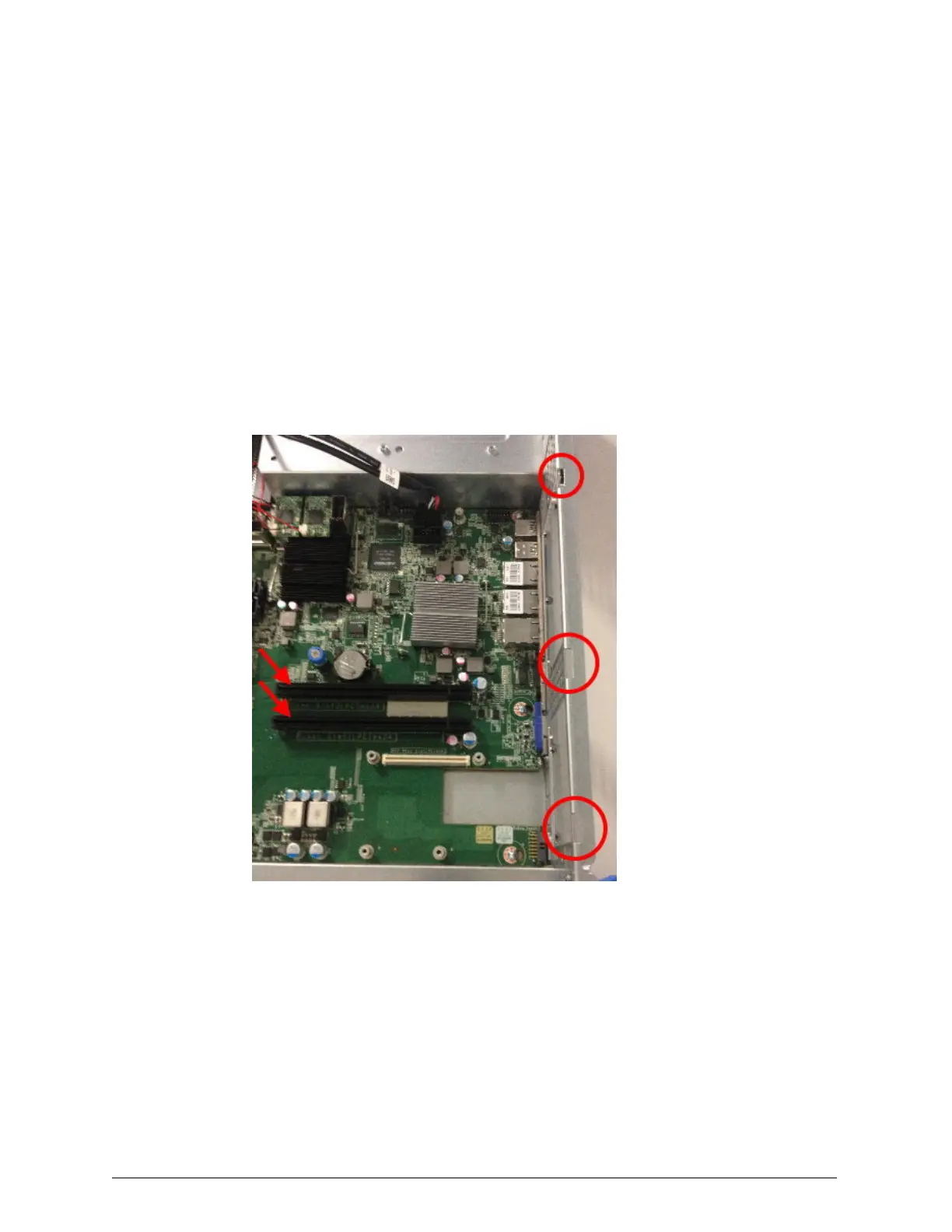

The three metal hooks on the rear lip of the riser card are aligned
with the three slots in the top rear lip of the server module
¡
The two sets of pins on the bottom of the riser card are aligned with
the two riser card connectors on the motherboard
3. Insert the three metal hooks on the rear lip of the riser card into the
three slots in the top rear lip of the server module.
98
Chapter 4: Refurbishing an HCP S30 Node
HCP S Series Node Refurbishment
Step 17: Unrack, disassemble, and pack the server modules
