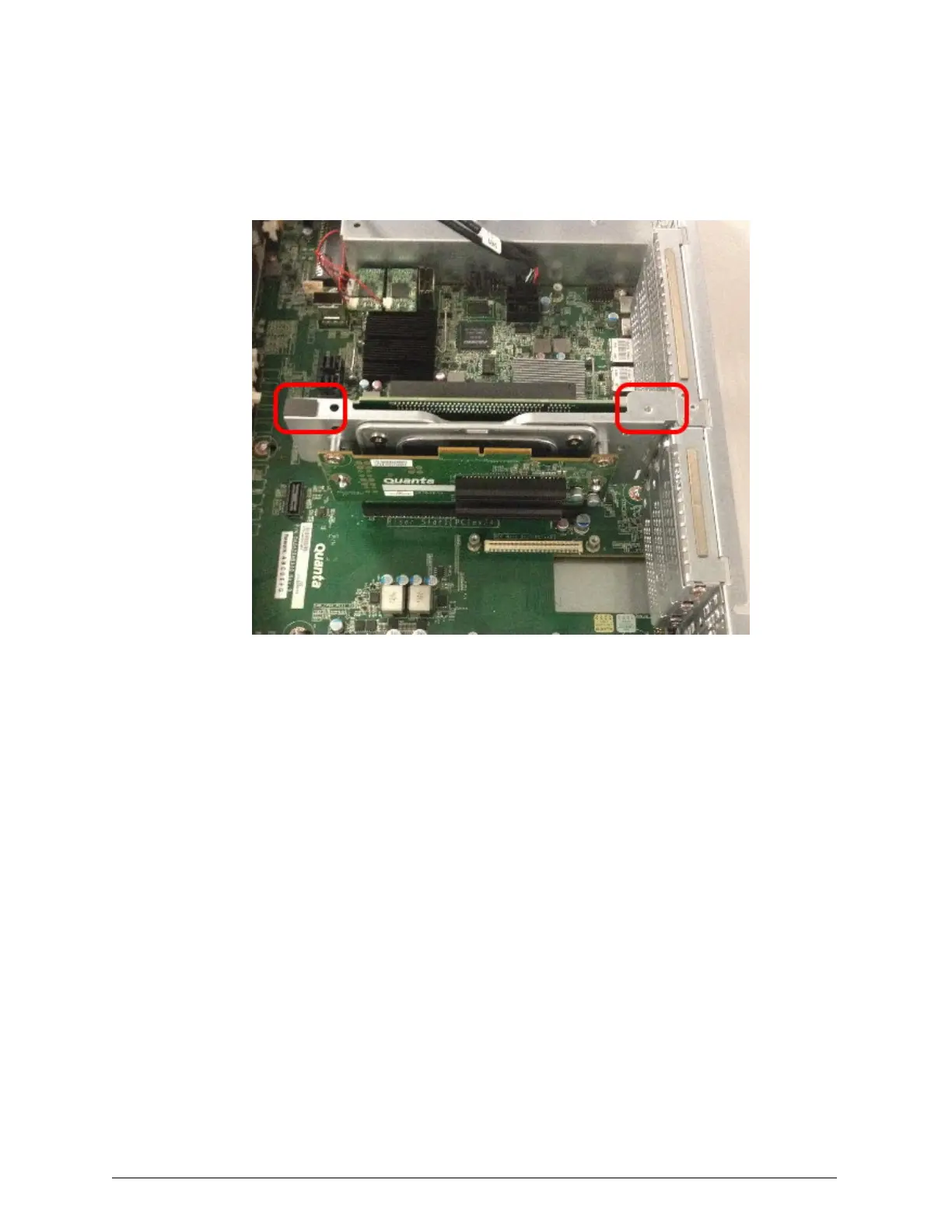

4. Gently but firmly press down the ends of the metal middle section of the
riser card until the card is seated in the connectors on the motherboard
and the hooks on the card are flush with the top of the rear lip of the
server module.
5. Turn the two thumbscrews on the rear of the server module until they
click, locking the riser card in place.
Step 17k: Remove the SSDs from the server module
The server module contains two SSDs. You need to remove both of them
from the module.
Chapter 4: Refurbishing an HCP S30 Node
99
HCP S Series Node Refurbishment
Step 17: Unrack, disassemble, and pack the server modules
