10. Press and release the knob on the top part of the CPUinsertion tool to
release the CPU from the clamp. When this is done correctly, you should
hear a click.

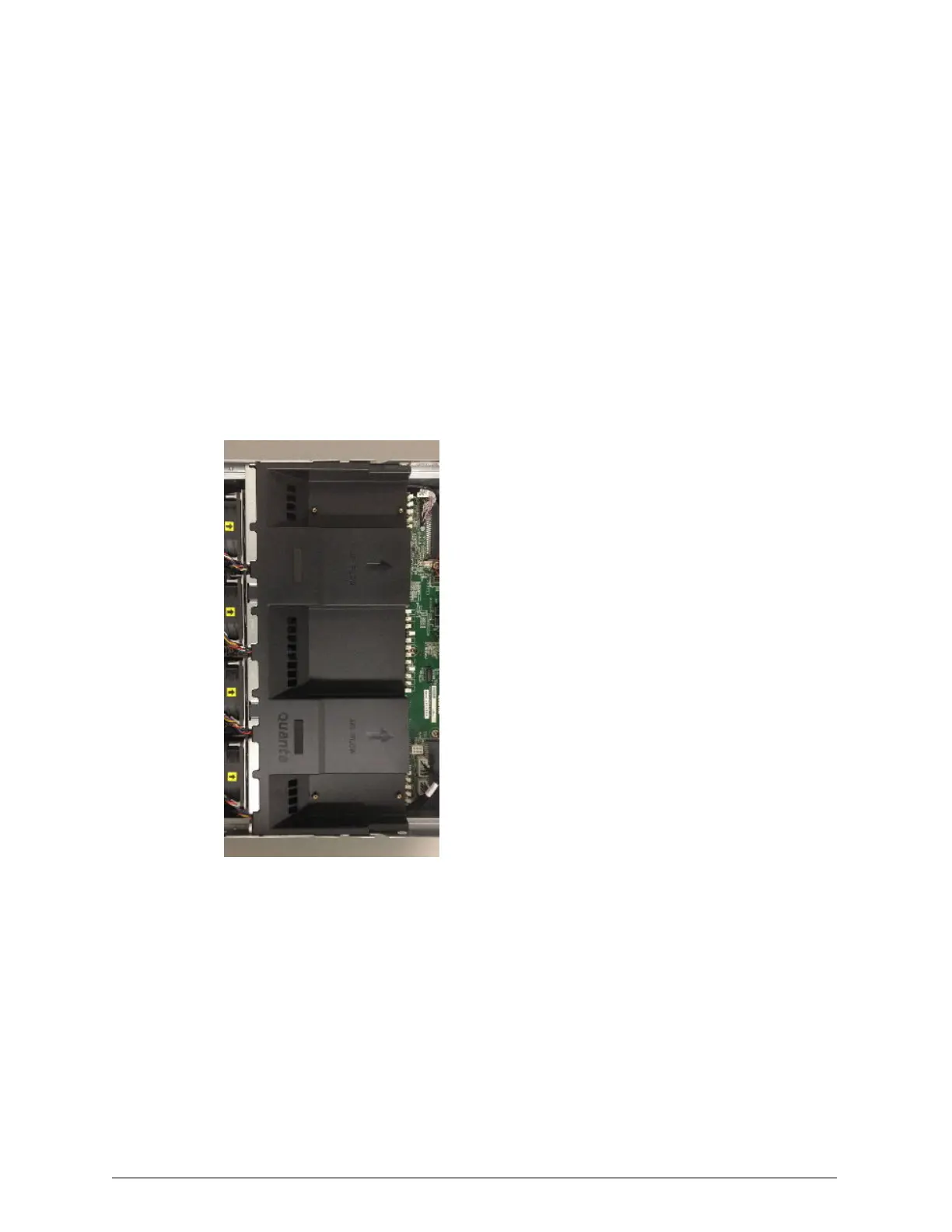

Step 17p: Reinsert the airflow baffle into the server module
To reinsert the airflow baffle into the server module, set the airflow baffle
straight down into the server module so that:
•
The small tabs on the front edge of the baffle fit into the notches on the
lip of the fan section
•
The lips of the large tabs on the front edge of the baffle fit into the slots
in the lip of the fan section
112
Chapter 4: Refurbishing an HCP S30 Node
HCP S Series Node Refurbishment
Step 17: Unrack, disassemble, and pack the server modules
