3. Raise the platform to just below the enclosure, aligning the platform so
that the bulk of the enclosure will rest on it when the enclosure is pulled
out of the rack.
4. While pressing in the green tabs on the rails on both sides of the
enclosure, pull the enclosure to release it from the rack. Then pull the
enclosure completely out of the rack.
5. Using the lift, position the enclosure next to the bottom of the enclosure
carton.
6. Put the two straps around the enclosure.
7. With another person, use the two straps that are around the enclosure
to move the enclosure onto the foam packing pieces that you placed on
the bottom of the carton.
Caution: Do not try to move the enclosure by yourself. Doing so may
result in injury.
Step 17 (conditional): Remove the inner rails from the
enclosure
If the S10 Node was returned racked, after removing the enclosure from the
rack, you need to remove the inner mounting rails from the sides of the
enclosure. If the S10 Node was returned unracked, it may still have the
inner mounting rails attached to it. In this case, too, you need to remove
the inner rails from the enclosure.

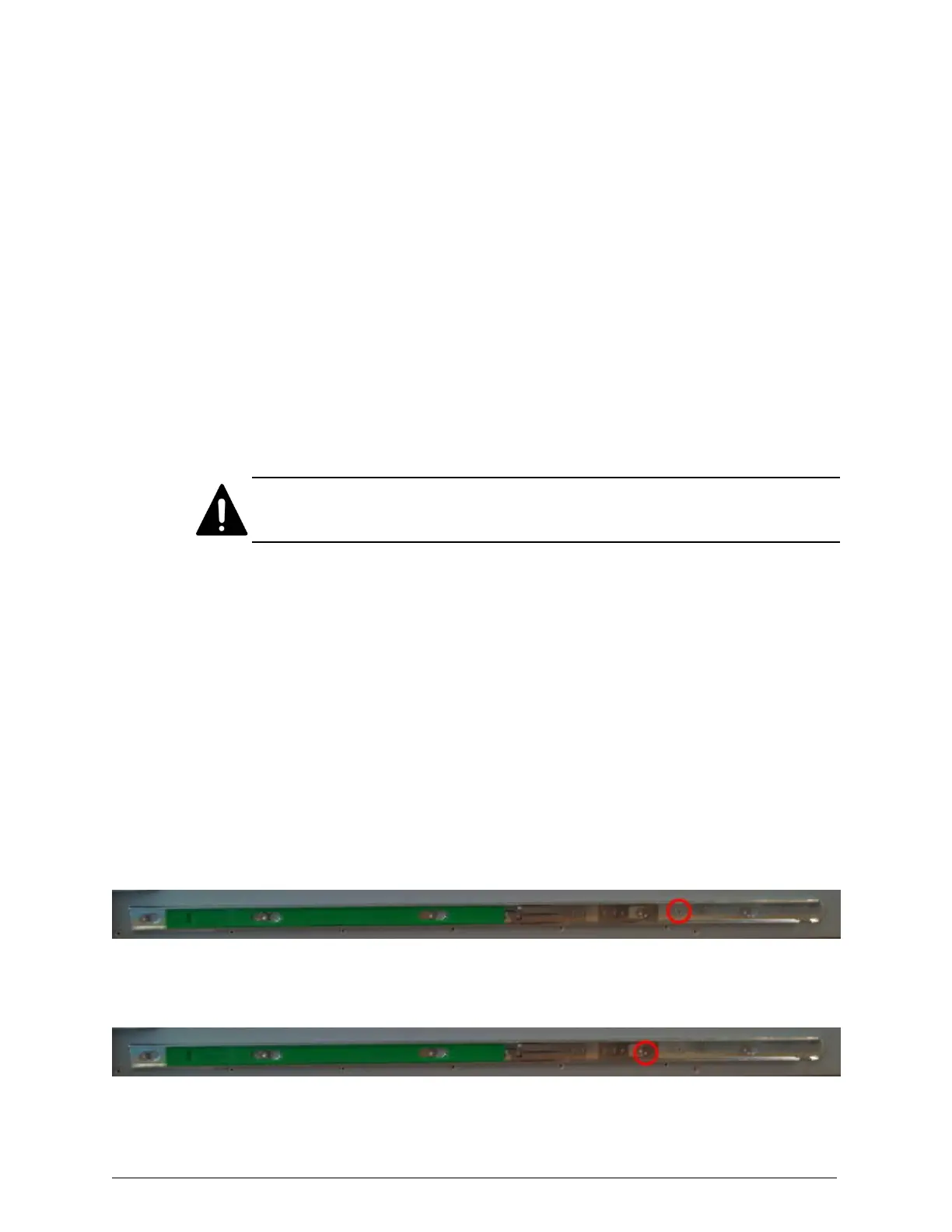

To remove the inner rails from the enclosure, for each inner rail:
1. Using the #1 Phillips screwdriver, unscrew and remove the silver chassis
screw that attaches the rail to the enclosure.
2. While lifting the silver tab on the rail, slide the rail toward the front of
the enclosure as far as the rail goes. Then pull the rail off the enclosure.
50
Chapter 3: Refurbishing an HCP S10 Node
HCP S Series Node Refurbishment
Step 17 (conditional): Remove the inner rails from the enclosure
