4.3.7 Emulated Encoder Output Setup
The function of encoder pulse output is to provide position feedback for host controller. During motor
operation, this function will send pulse signals with the output format of A/B phase to host controller based
on the set encoder output ratio. Before using this function, confirm servo drive’s output bandwidth, host
controller’s receiving bandwidth and motor’s maximum operating velocity.
The procedure of emulated encoder output setup is as below.
1. Click Emulated Encoder Output Setup to enter emulated encoder output setup page.

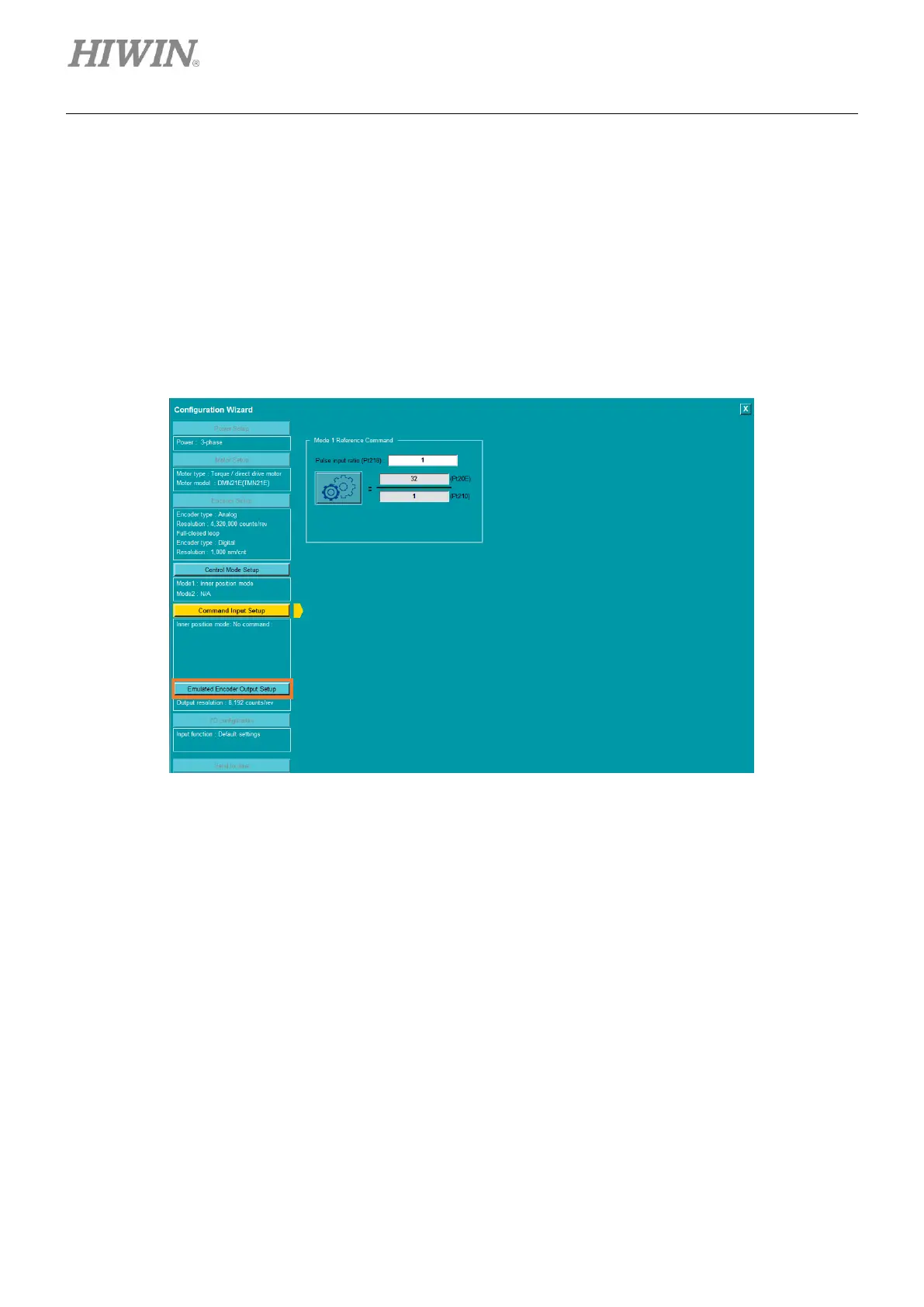

Figure 4.3.7.1
