E1 Series Servo Drive Thunder Software Operation Manual Advanced Functions
HIWIN MIKROSYSTEM CORP. 9-41
MD12UE01-2012
9.8 Dynamic brake resistor wizard
9.8.1 Brief introduction
When the motor operates at high speed with heavy load, the built-in brake resistor may not able to absorb
the kinetic energy in time. Thus longer braking distance is required. Users can follow the procedure below
to calculate the suitable resistor.
CAUTION
◆ When main circuit power supply or control circuit power supply is OFF, use dynamic brake to stop the motor.
This function cannot be closed via Pt parameters.
◆ Pay attention to the contact point current when relay is used. If the current is too large, use magnetic contactor
and the contact point of the magnetic contactor must be able to withstand large current.
◆ For 1 kW E1 series servo drive or above, dynamic brake resistor (10 Ohm) is already installed inside the
servo drive.

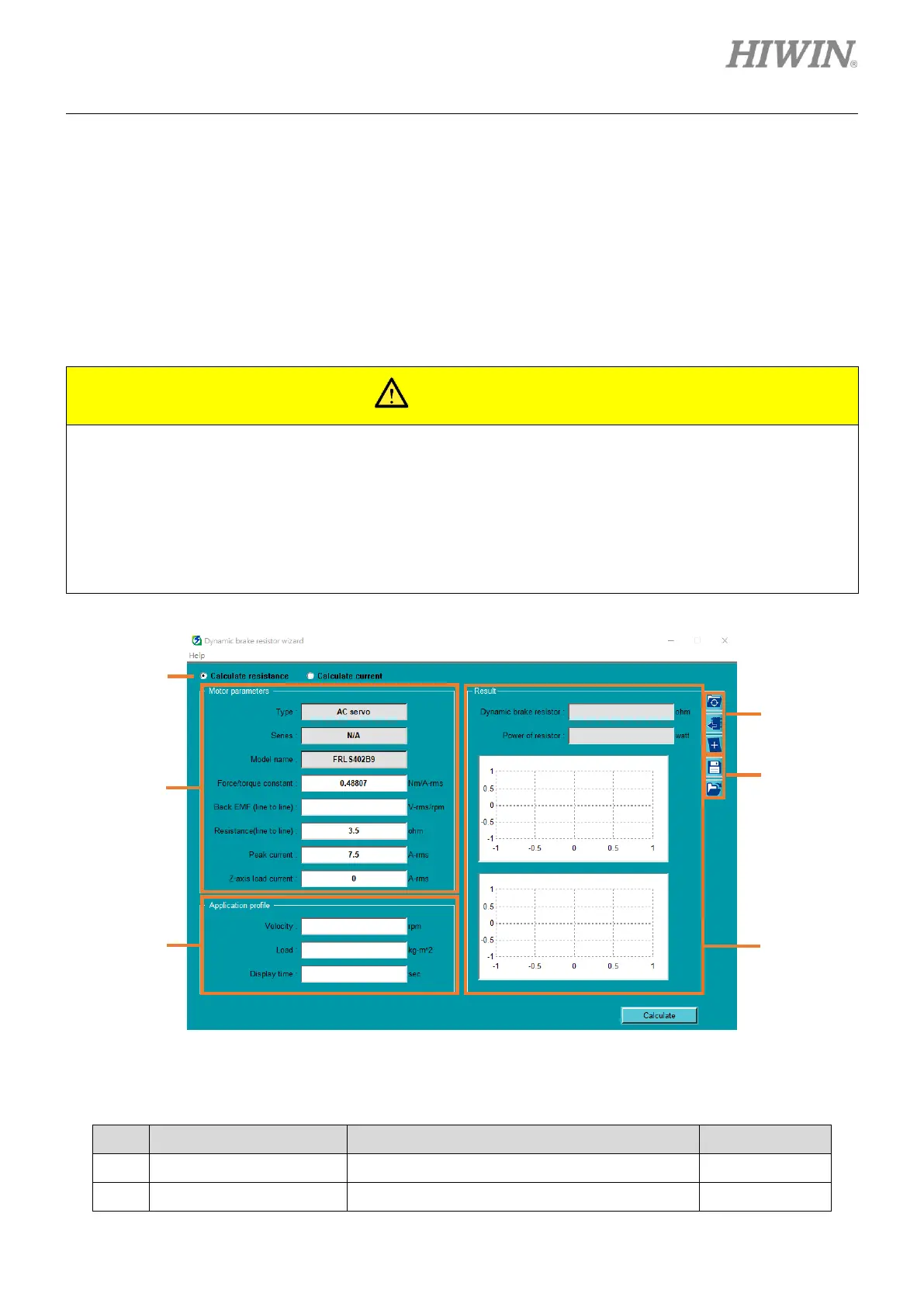

Figure 9.8.1.1
Table 9.8.1.1
No.
Item
Description
Reference
(1)
Motor parameters setting
Connect motor parameters.
section 9.8.2
(2)
Application parameters
Fill in application parameters.
section 9.8.3
(1)
(2)
(3)
(4)
(2)
(1)
