Hiwin E1 Series Manual

Appendix E1 Series Servo Drive Thunder Software Operation Manual
11-10 HIWIN MIKROSYSTEM CORP.
MD12UE01-2012
11.1.3 Linear motor
Connect linear motor to servo drive’s motor power connector (CN2) and encoder connector (CN7). Refer
to section 5.4 in “E1 Series Servo Drive User Manual” for the wiring of servo motor.
With linear motor, users must select motor parameters. This section takes linear motor LMSA12 as an
example to demonstrate the basic settings of servo drive. Follow the procedure below to complete servo
drive configuration.

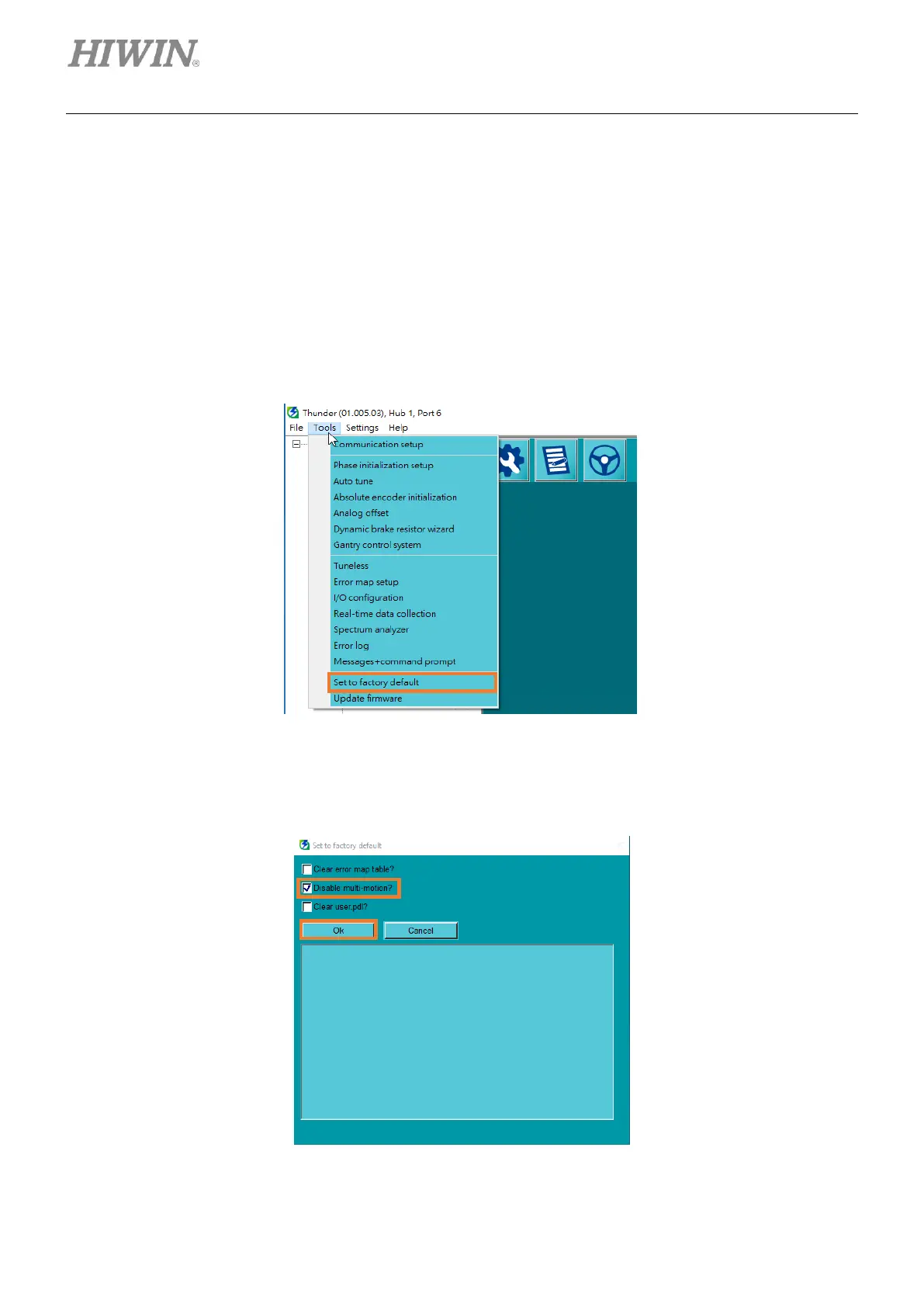

1. Select Tools in the menu bar and click Set to factory default.
Figure 11.1.3.1
2. Click Ok.
Figure 11.1.3.2
