Servo Drive Configurat
ion
E1 Series Servo Dr
ive Thunder Software Operati
on Manual
4-
22
HIWIN MIKROSYST
EM CORP
.
MD12UE01-
2012
4.3.5
Control Mod
e Setup
Set the desired con
trol mod
e. The procedu
re of control
mode setup is as
below
.
1.
Click
Control Mode
Setup
to ente
r control
mode setup page.

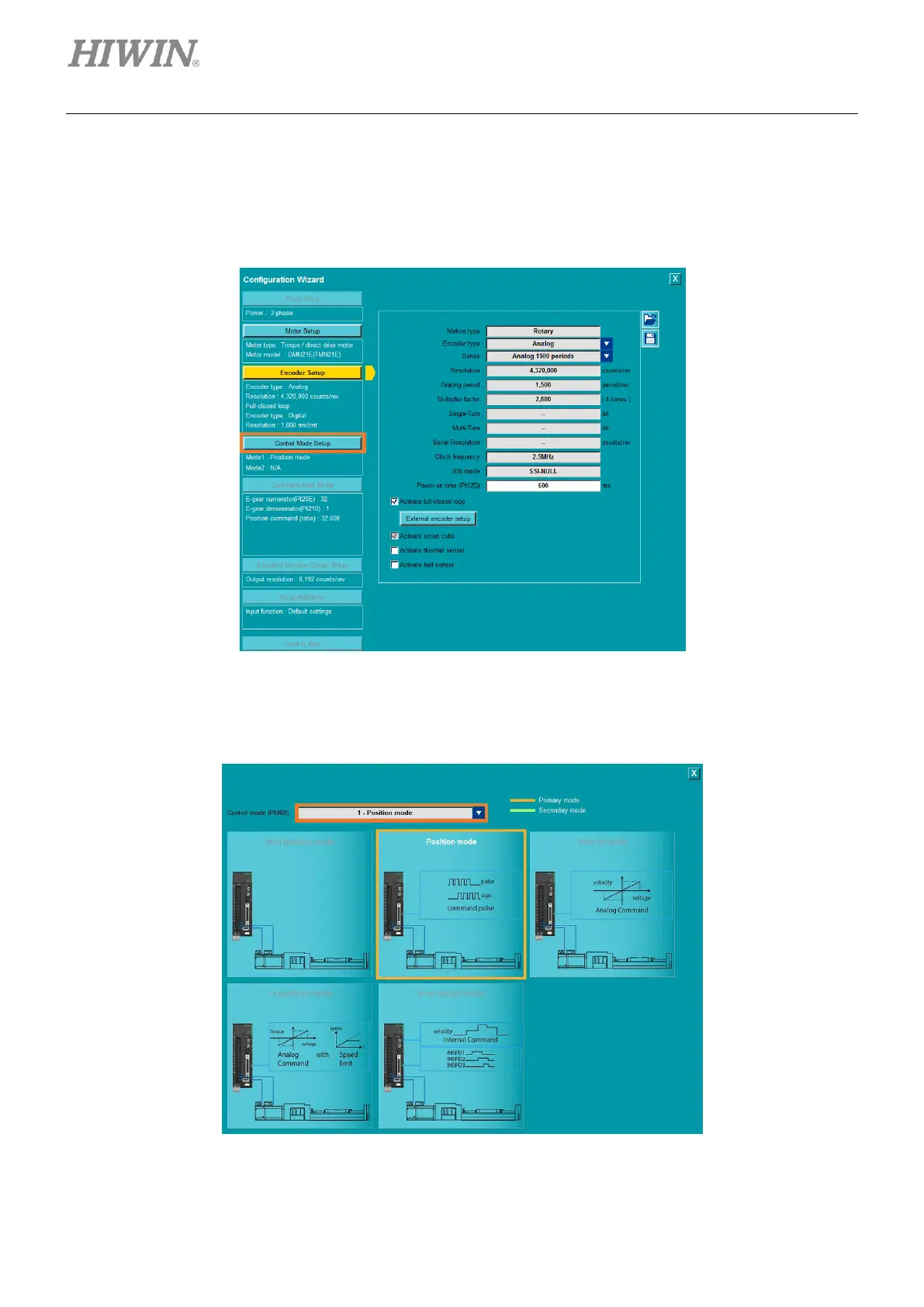

Figure 4.3.5.1
2.
Open the menu
to select control
mode.
Figure 4.3.5.2
85
87
