E1 Series Servo Drive Thunder Software Operation Manual Monitoring
HIWIN MIKROSYSTEM CORP. 7-43
2. Complete adding new tab.

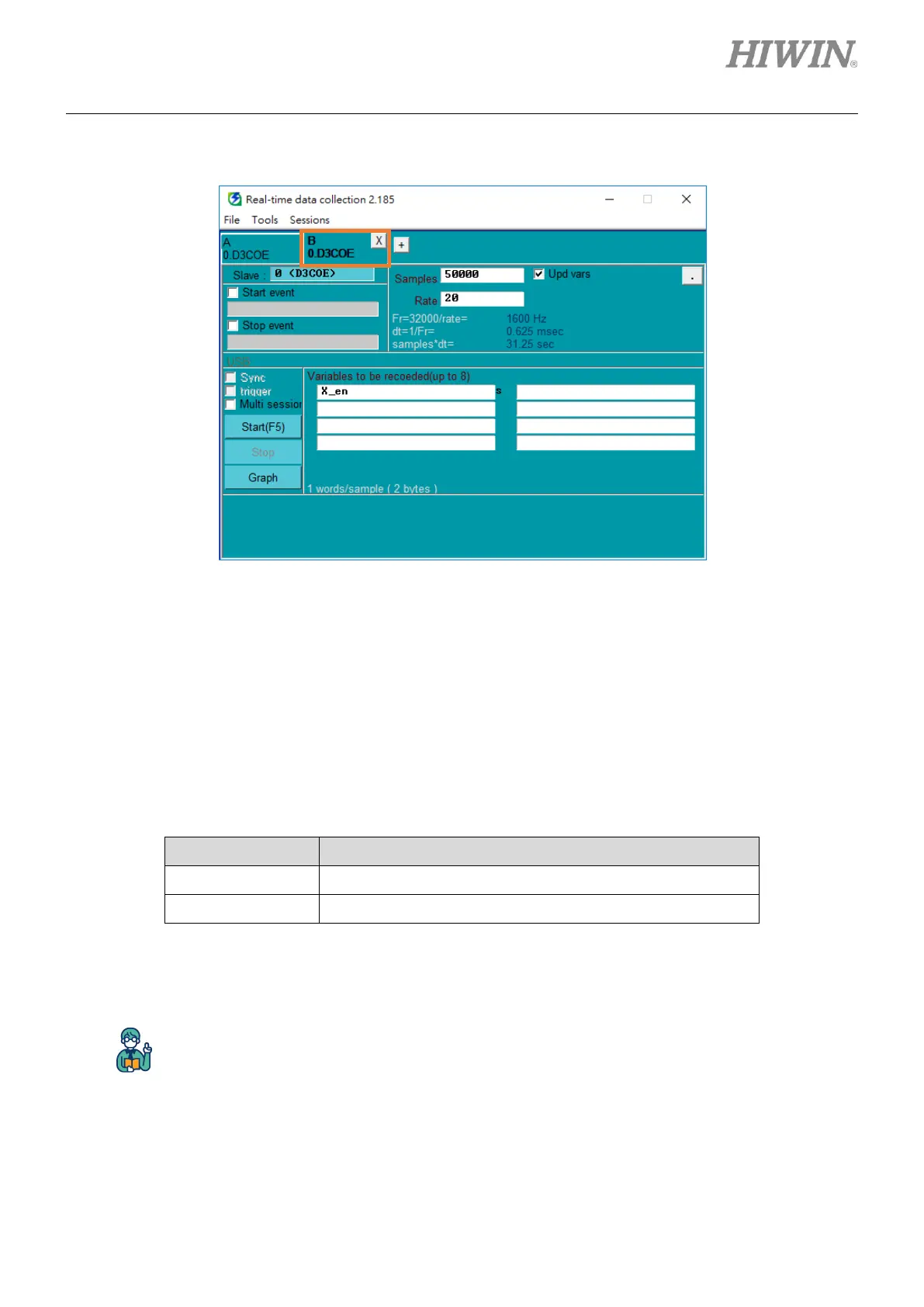

Figure 7.6.1.4.2
7.6.1.5 Sampling settings
Users can set sampling number and sampling rate based on requirement, and perform background
updating.
◼ Sampling number and sampling rate
Table 7.6.1.5.1
Sampling number of each variable.
Sample a data every number of interrupts decided by users.
1. Set sampling number and sampling rate to decide collection frequency, collection cycle and
collection time.
If users set sampling number as 200000 and sampling rate as 2, the following results will be
automatically calculated by Thunder: collection frequency is 16000 Hz, collection cycle is
0.0625 msec and collection time is 12.5 sec.
