E1 Series Servo Drive Thunder Software Operation Manual Servo Drive Configuration
HIWIN MIKROSYSTEM CORP. 4-33
MD12UE01-2012
(2)
Diagram of mechanical structure
and the calculated result of
electronic gear ratio
Display the diagram of mechanical structure selected by users
and the calculated result of electronic gear ratio.
(3)
Parameters of electronic gear ratio
Key in feed constant, reduction ratio and control unit.
Important

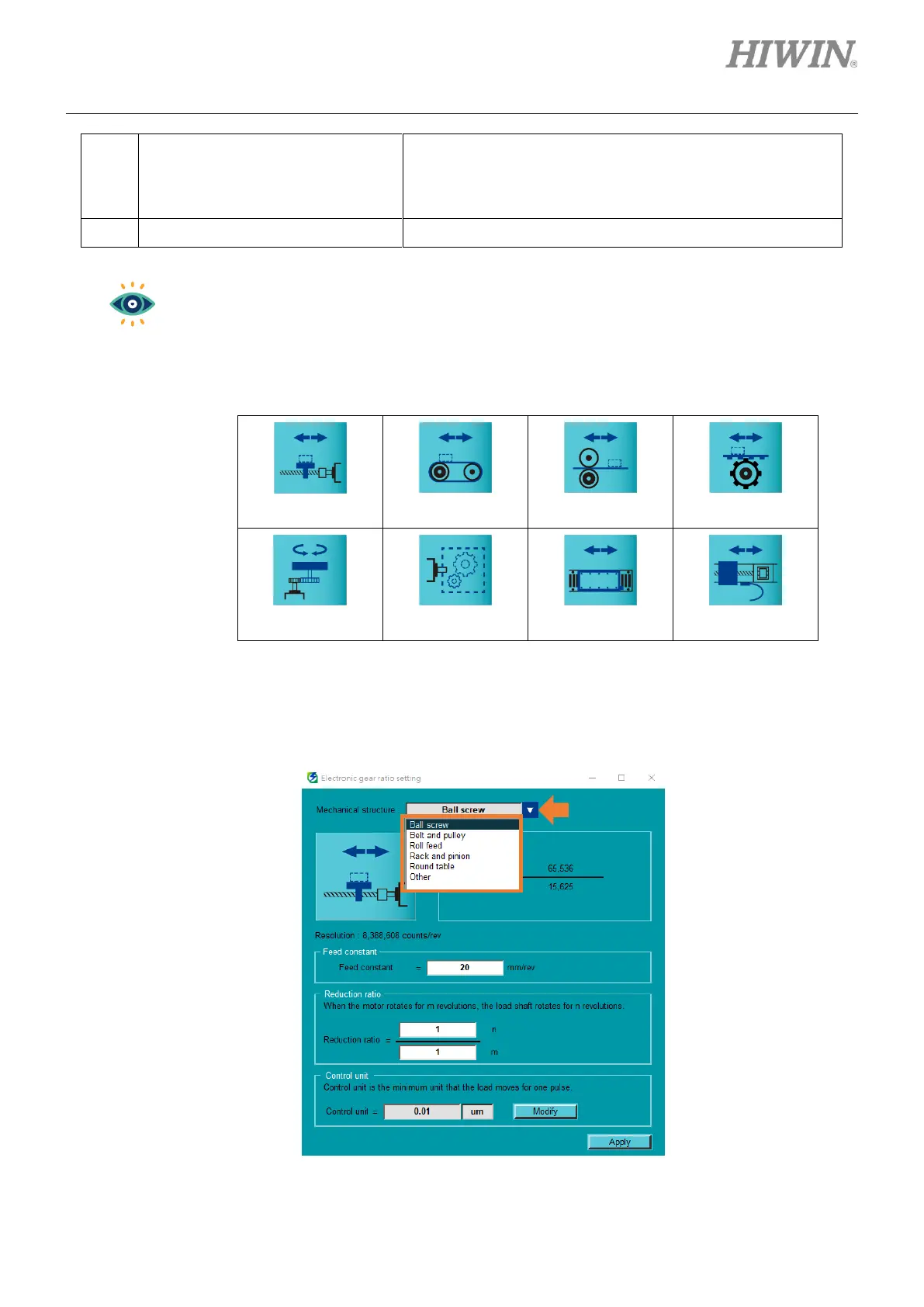

There are eight kinds of mechanical structures, as the following table shows. “Linear motor”
and “Full-closed loop” will be automatically selected based on motor type and encoder setting.
If the mechanical structure is unknown or there is no suitable option, select “Other”.
Table 4.3.6.3.3
Ball screw
Belt and pulley
Roll feed
Rack and pinion
Round table
Other
Linear motor
Full-closed loop
◼ All mechanical structure’s electronic gear ratio setting (except for linear motor and full-closed loop)
1. Select mechanical structure.
Figure 4.3.6.3.2
