E1 Series Servo Dr
ive Thunder Software Operation
Manual
Servo Drive Configurat
ion
HIWIN MIKROSYST
EM CORP
.
4-
69
MD12UE01-
2012
4.4.6.4
Disable multi-motion function
Follow the procedu
re below to clear and
disable the
multi-motion function
existed in se
rvo drive.

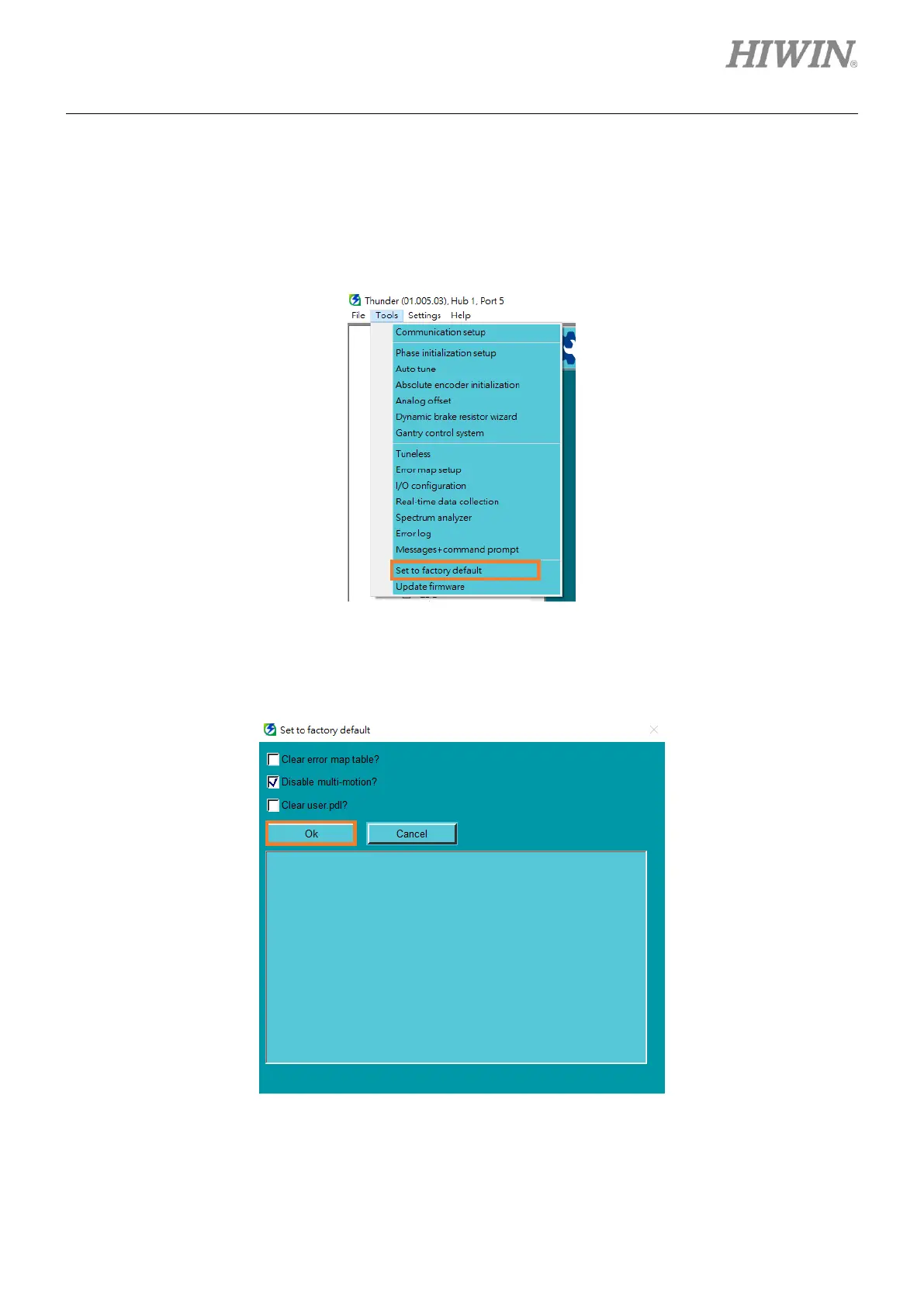

1.
Select
T
ools
in the menu bar
, and click
Set to factory de
fault
.
Figure 4.4.6.4.1
2.
Click
Ok
to
restore servo
drive paramete
rs and disable multi-motion
functi
on.
Figure 4.4.6.4.2
132
134
Table of Contents
