11.1.1 AC servo motor (EM1 series)
Connect AC servo motor (EM1 series) to servo drive’s motor power connector (CN2) and encoder
connector (CN7). Refer to section 5.4 in “E1 Series Servo Drive User Manual” for the wiring of servo motor.
With EM1 series motor, Thunder will automatically fill in motor parameters. This section takes AC servo
motor EM1-C-M-40-2-B-F-0-A as an example to demonstrate the basic settings of servo drive. Follow the
procedure below to complete servo drive configuration.

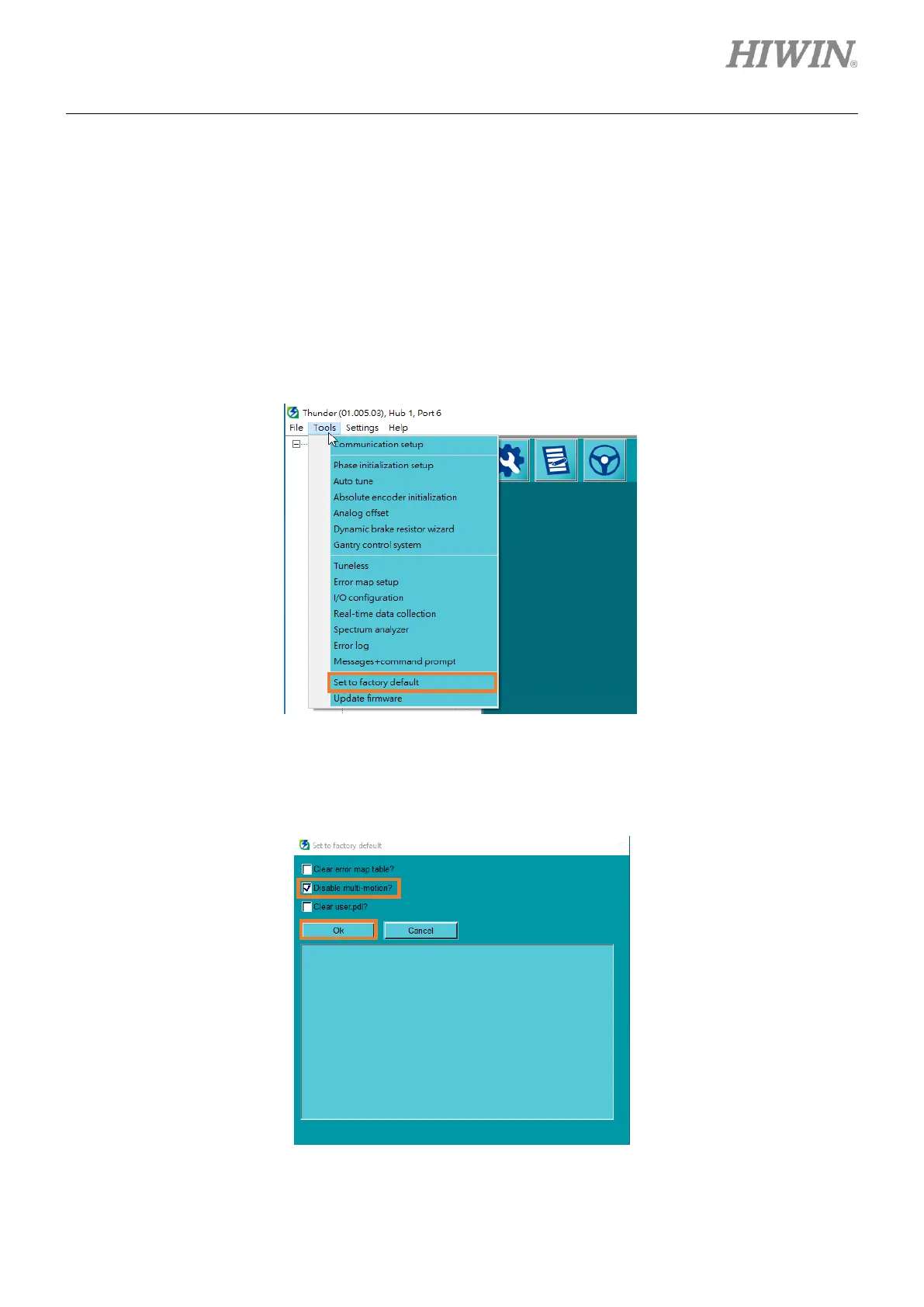

1. Select Tools in the menu bar and click Set to factory default.
Figure 11.1.1.1
2. Click Ok.
Figure 11.1.1.2
To Next Page
