Advanced Functions E1 Series Servo Drive Thunder Software Operation Manual
9-12 HIWIN MIKROSYSTEM CORP.

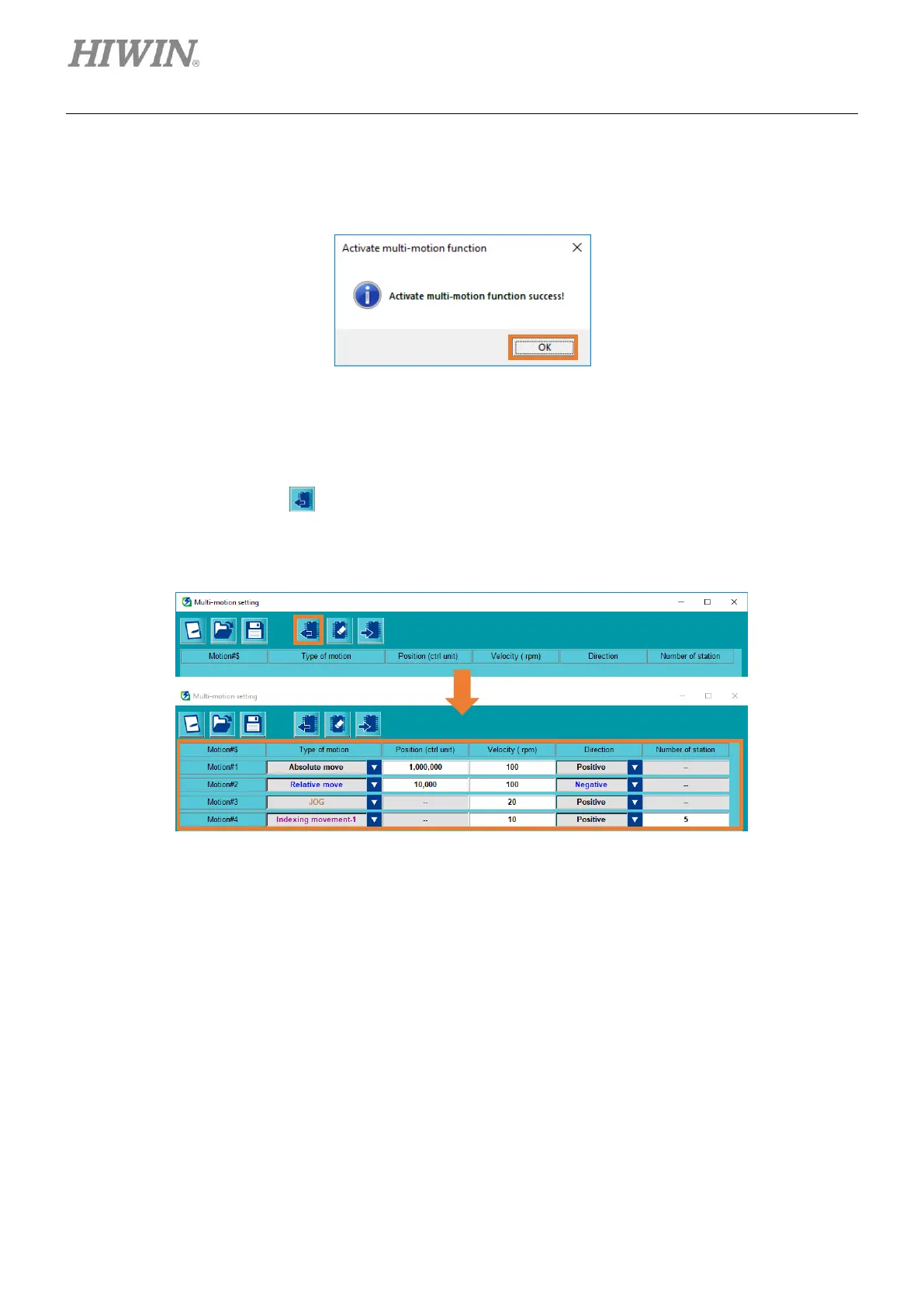

3. After the servo drive is power cycled, “Activate multi-motion function success!” window will pop up.
After users click OK, the data will be successfully saved to servo drive and multi-motion function will
be activated.
Figure 9.2.4.3
9.2.5 Read multi-motion parameters from servo drive
Click “Read from drive” icon to read and display the multi-motion parameters saved in servo drive.
Users can modify motion number, the configuration of input pins, type of motion and other motion
parameters before saving them to servo drive again.
Figure 9.2.5.1
