Monitoring
E1 Series Servo Dr
ive Thunder Software Operation
Manual
7-
56
HIWIN MIKROSYST
EM CORP
.
MD12UE01-
2012

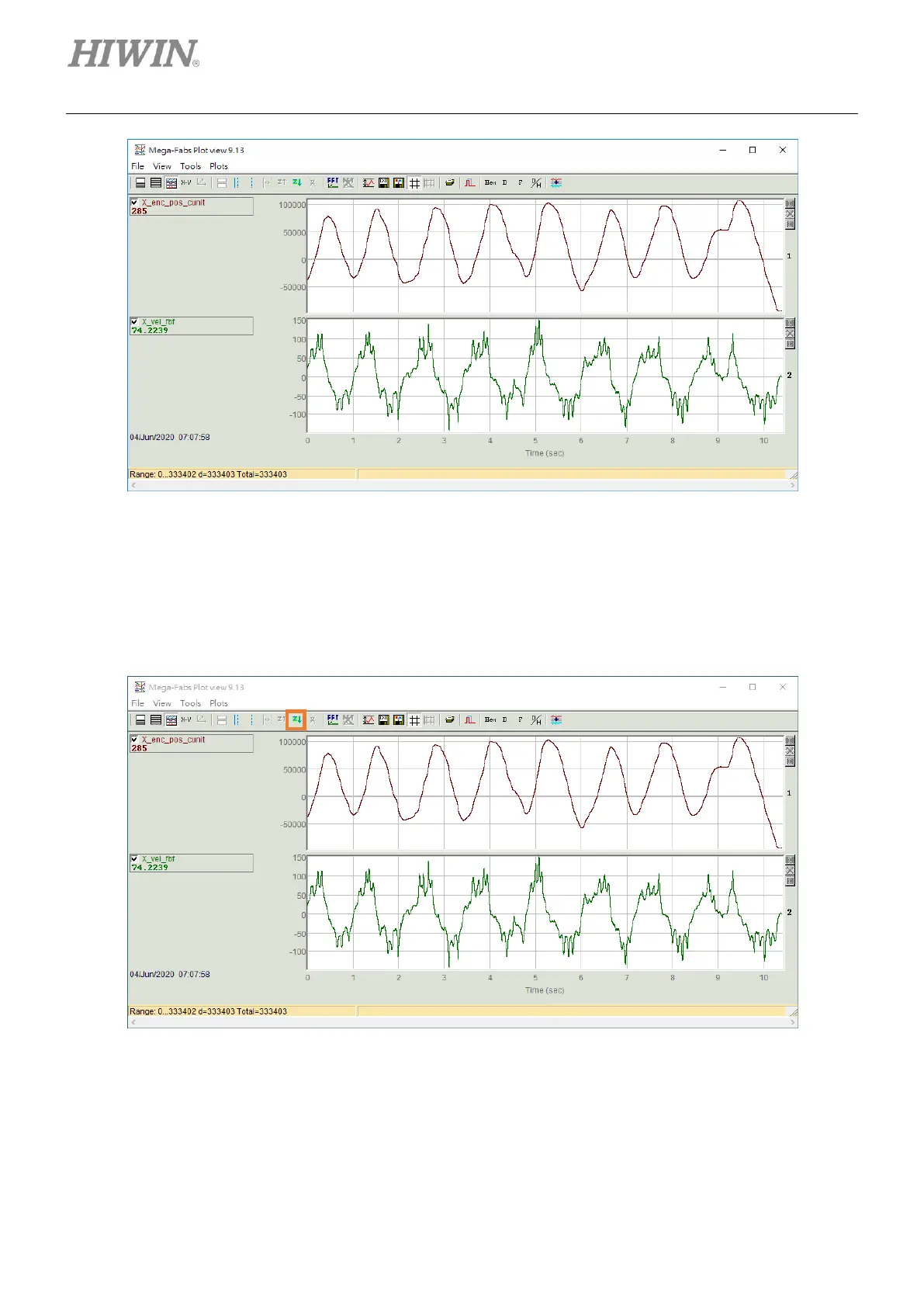

Figure 7.6.2.6.2
7.6.2.7
Redo zoom
If “Und
o zoo
m” f
unction
has
been used, use
rs can
click “Redo
zoom” icon
to
zoom
in
the w
aveform
a
gain.
Figure 7.6.2.7.1
251
253
