E1 Series Servo Drive Thunder Software Operation Manual Advanced Functions
HIWIN MIKROSYSTEM CORP. 9-47
MD12UE01-2012
9.8.2.4 Other brand motor
If it is an other brand motor, after clicking , users must select “Type” and fill in “Model name”, “Force /
torque constant”, “Resistance (line to line)” and “Peak current”.

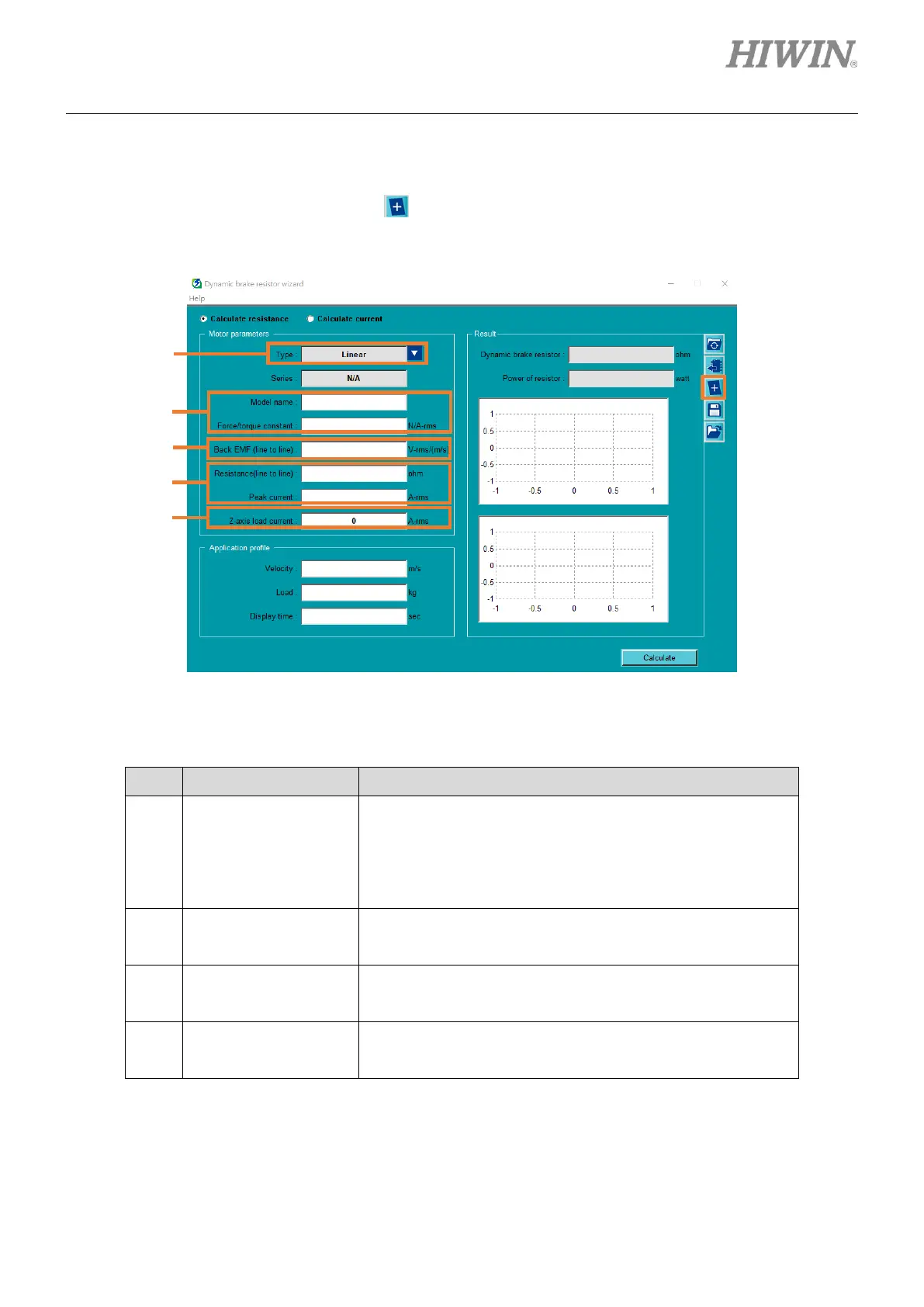

Figure 9.8.2.4.1
Table 9.8.2.4.1
No.
Item
Description
(1)
Motor type
Select the connected motor type via drop-down menu.
◆ Linear
◆ Torque / direct drive
◆ AC servo
(2)
Motor parameters
Fill in “Model name”, “Force / torque constant”, “Resistance
(line to line)” and “Peak current” based on the configuration.
(3)
Back EMF (line to line)
Fill in the corresponding motor back EMF, which can be found
from the catalog.
(4)
Z-axis load current
For the application of Z axis, fill in the current that the motor is
enabled and remains static.
(2)
(3)
(1)
(2)
(4)
