9.8.3 Application parameters setting
Fill in application parameters based on system brake performance requirement to evaluate the proper
resistance for dynamic brake. There are two kinds of calculation, calculate resistance and calculate current.
◆ Calculate resistance
Fill in application parameters based on performance requirement to get the minimum resistance of
dynamic brake.

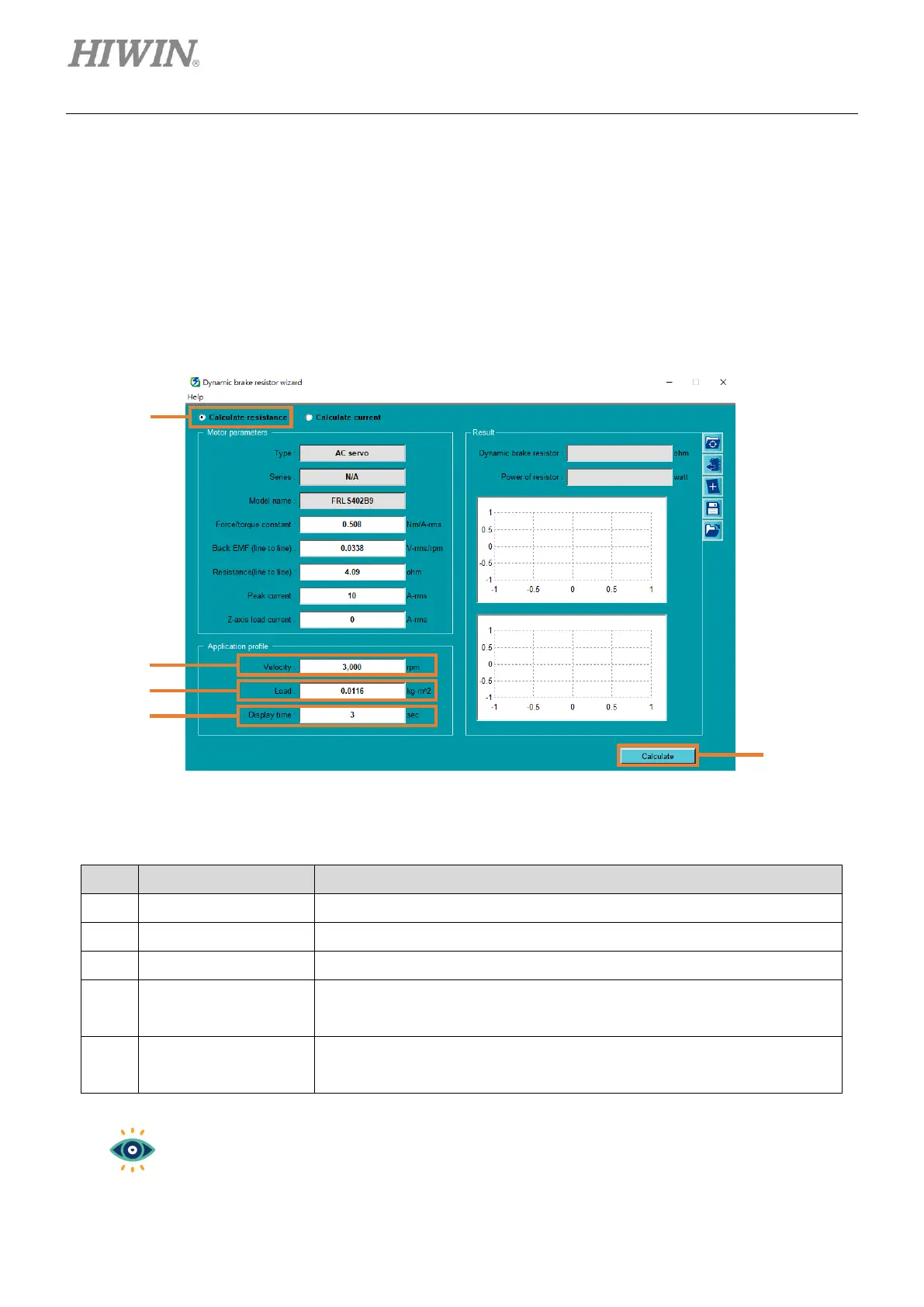

Figure 9.8.3.1
Table 9.8.3.1
No.
Item
Description
(1)
Calculate resistance
Select Calculate resistance.
(2)
Velocity
Fill in the maximum moving velocity of the system based on actual situation.
(3)
Load
Fill in the load of the system based on actual situation.
(4)
Display time
It is display time for the simulated trends on the right side. Users can fill in
the time to be observed.
(5)
Calculate
After parameters setting is done, click Calculate to get the resistance to be
used.
Important
If the simulated trends from deceleration to stop cannot be fully displayed, users must increase
the value of “Display time” and click Calculate again.
(2)
(3)
(4)
(5)
(1)
