Connectors, LEDs, and Switches
Interlock Status
Improperly seated components in the interlock chain cause the LED associated with the fault
origination point to illuminate on the system board. Figure 4-7 and Table 4-7 identify the
location and status of each of the LEDs.
NOTE: Interlock components are required for the system to power up.
IMPORTANT: ProLiant DL580 Generation 2 servers are not equipped with chassis door or access
panel interlocks.

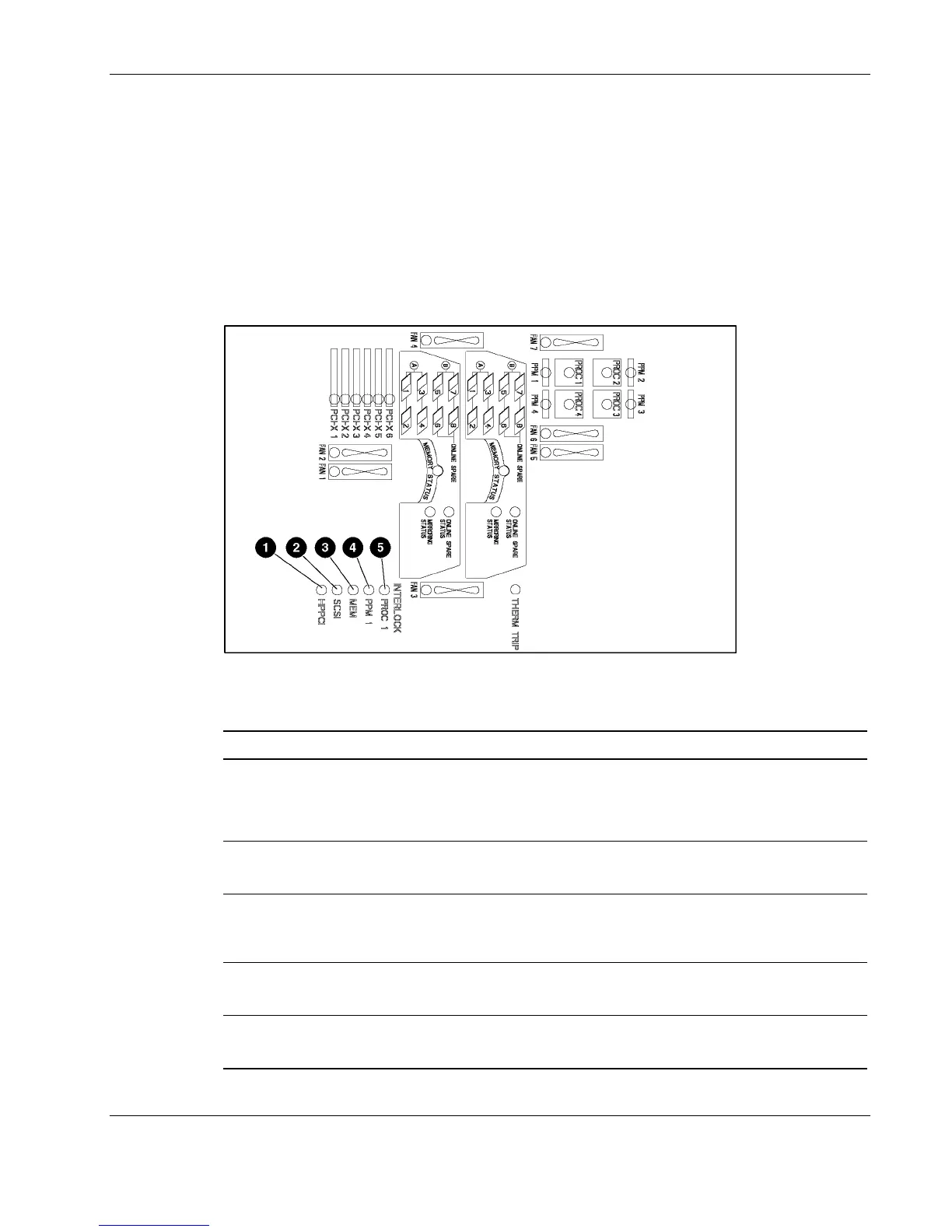

Figure 4-7: Interlock LEDs
Table 4-7: Interlock LEDs
Item Name Status Description
Amber PCI Hot Plug PCA cable or PCI-X Hot Plug board
not installed properly
1 HPPCI
Off Normal
Amber SCSI backplane not seated properly
2 SCSI
Off Normal
Amber No memory boards detected; memory boards not
installed properly
3 Mem
Off Normal
Amber Processor Power Module 1 not installed properly
4 PPM 1
Off Normal
Amber Processor 1 not installed properly 5 Proc 1
Off Normal
HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide 4-9
