Removal and Replacement Procedures
Memory Board LEDs and Icons
Use Figure 2-15 and Table 2-3 through 2-7 to identify icons and LEDs and their status on the
memory board. Each table represents the LEDs for a specific memory mode. Be sure you are
referring to the correct table for the specific mode.

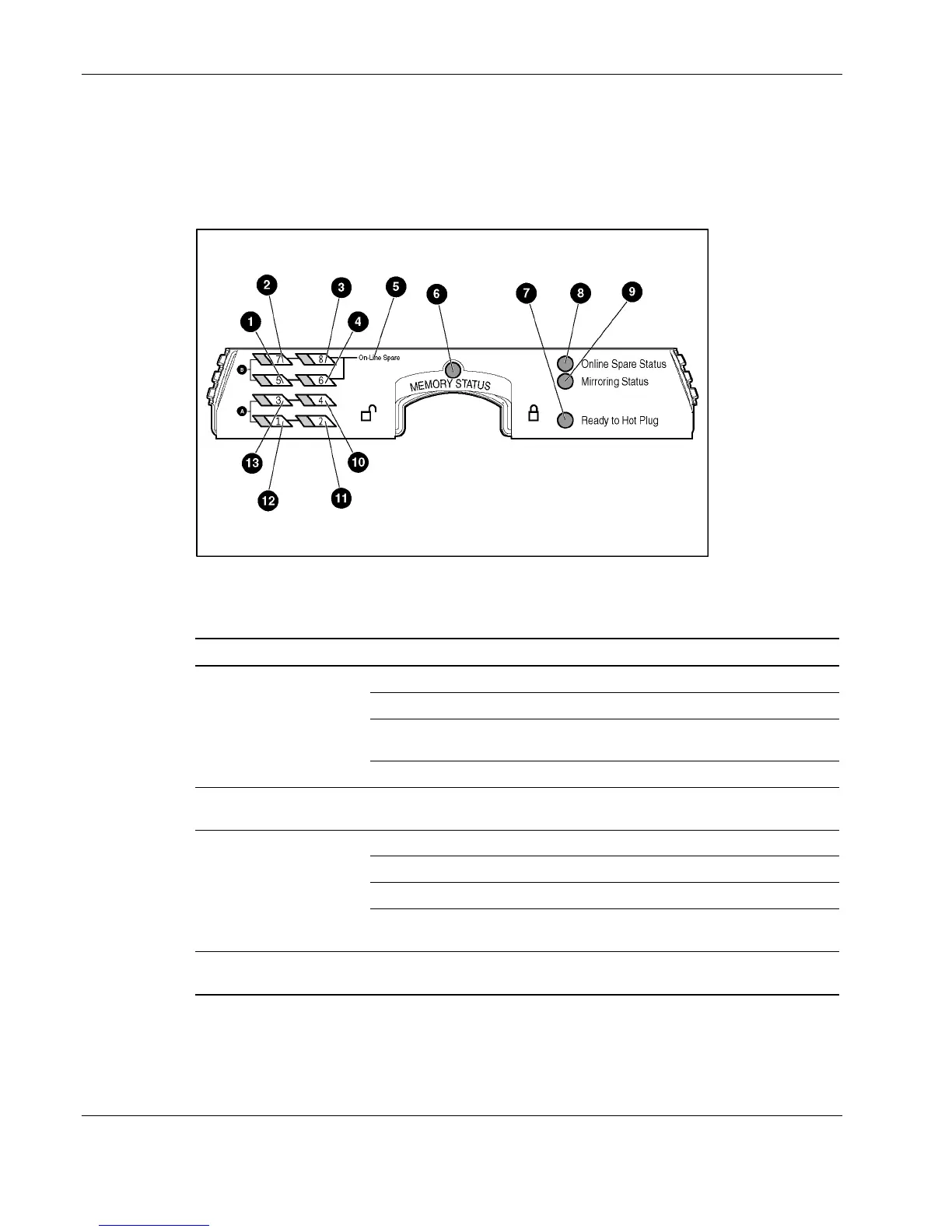

Figure 2-15: Memory board LEDs and icons
Table 2-3: Advanced ECC (Standard) Memory LEDs
Item Description Indicator Status
Off Memory board is offline.
Green Memory board is online.
Flashing
green
Memory board is busy.
6 Memory
Status
Amber Memory error has occurred on this memory board.
7 Ready to
Hot Plug
Off Do not remove memory board. Advanced ECC
memory does not support hot-removal of boards.
Off DIMM is not installed.
Green DIMM is installed.
Amber Memory error has occurred on this DIMM.
1-4
and
10-13
DIMMs 1-8
status
Flashing
amber
Configuration error has occurred.
All LEDs Flashing
amber
CAUTION: Memory board is in use; relock it
immediately.
2-18 HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide
