HP ProLiant DL580 Generation 2 User Manual

Connectors, LEDs, and Switches
Hot-Plug Power Supplies
Determine the power supply status by noting the color of the LED on the power supply unit.

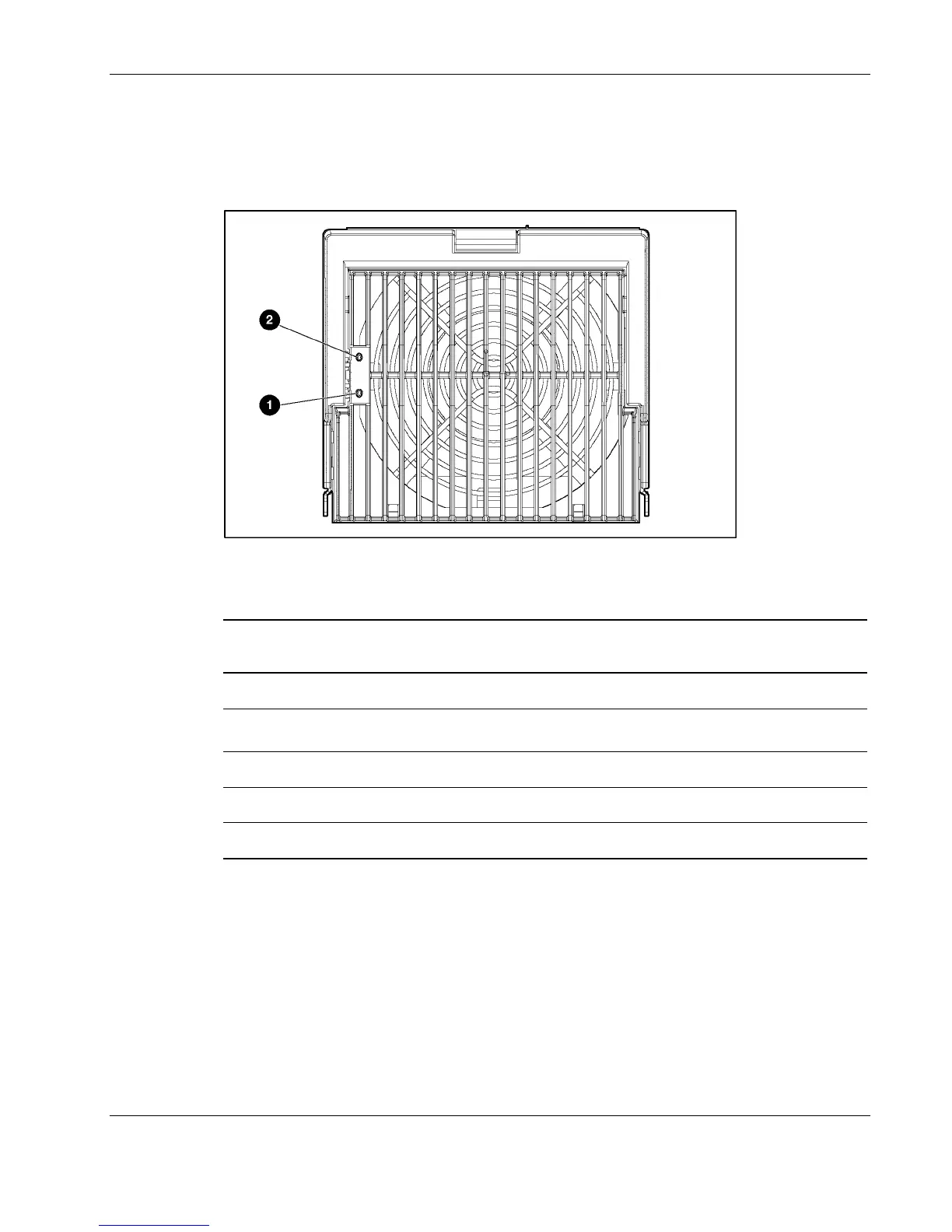

Figure 4-10 and Table 4-10 identify the location and status of each of the LEDs.
Figure 4-10: Hot-plug power supply LEDs
Table 4-10: Hot-Plug Power Supply LEDs
(1) Power LED Status
Green
(2) Fault LED Status
Amber
Description
Off
Off No AC power
Off
On No AC power to power supply or
power supply failure
Blinking
Off Standby mode
On
Off Normal operations
On
Blinking Current limit exceeded
HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide 4-13

HP ProLiant DL580 Generation 2 Specifications

General

Processor Socket	Socket 604
Storage Controller	Integrated Smart Array 6i Controller
Storage	SAS
Network	Integrated Dual Gigabit NICs
RAID Support	RAID 0, 1, 5
Expansion Slots	6 PCI-X slots
Power Supply	Redundant Power Supplies
Form Factor	4U Rack
Management	HP Integrated Lights-Out (iLO)
Operating System Support	Windows Server, Linux
Processor	Intel Xeon (up to 4 processors)
Drive Bays	Up to 6 hot-plug SCSI or SAS drives
