Removal and Replacement Procedures
15. Grasping the two handles, lift the side with the processor handles first, tilting the board to
a 45° angle (1).
16. Lift the entire system board out of the chassis (2).
17. Transfer the processors and PPMs to the replacement system board. Be sure to put them
back in the same slots.
18. Check the SW4, SW7, and SW8 switch settings on the old board against the settings in
chapter 4 to be sure that they are in the correct positions.

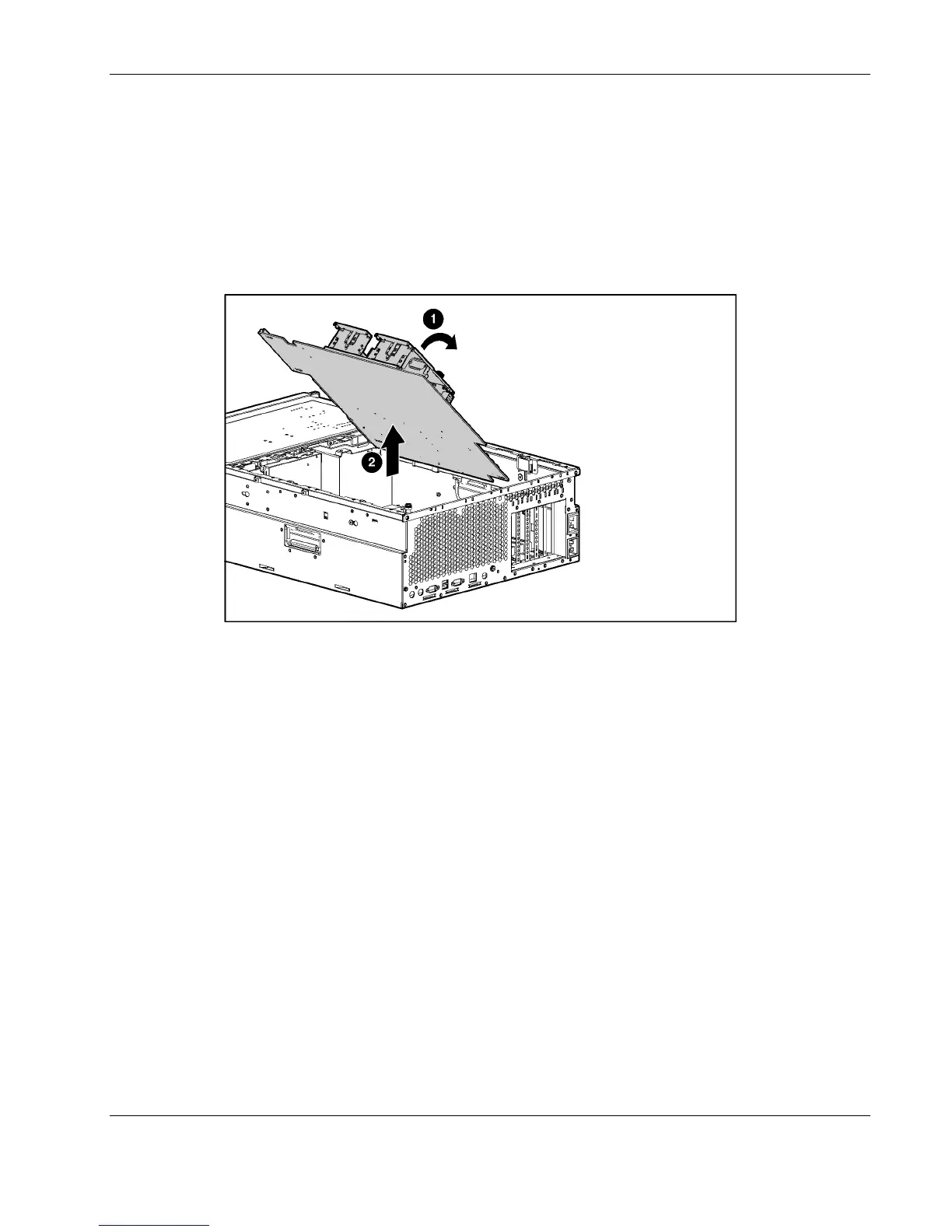

Figure 2-52: Removing the system board from the chassis
Reverse steps 1 through 18 to replace the system board.
IMPORTANT: The server serial number must be re-entered through RBSU after replacing the system
board. Refer to the “Re-entering the Server Serial Number” section.
