HP ProLiant DL580 Generation 2 User Manual

Connectors, LEDs, and Switches
Internal Diagnostic Display
Figure 4-16 and Table 4-19 identify the internal diagnostic display and its status.

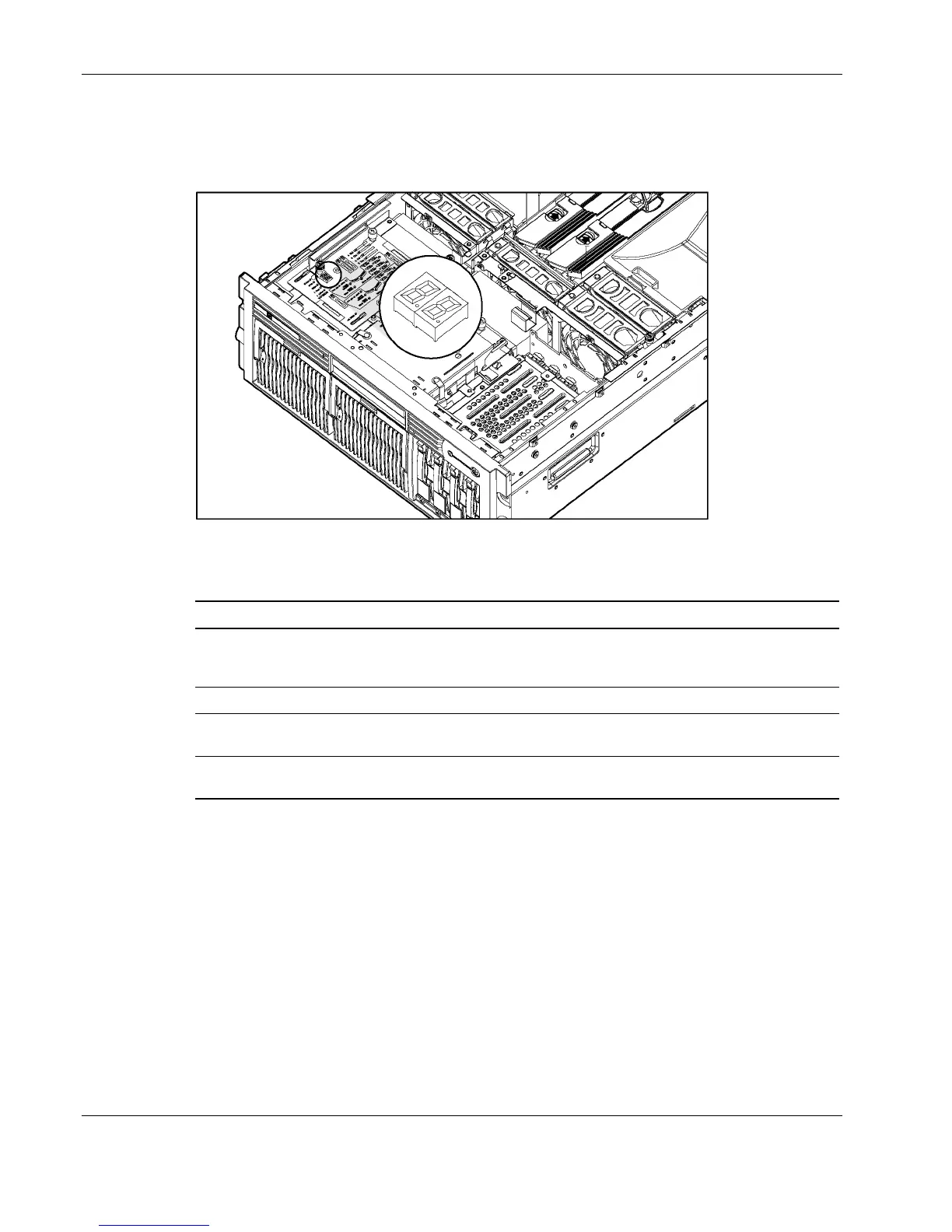

Figure 4-16: Internal diagnostic display LEDs and switches
Table 4-19: Internal diagnostic display switches
Item Switch 1 Switch 2 Description
Port 84 OFF OFF For more information on Port 84, refer to the
Port 84 diagnostic codes that occur during
the boot process.
Reserved OFF ON N/A
iLO ON OFF For more information on iLO, refer to the
Integrated Lights-Out User Guide.
5i Plus ON ON For more information on 5i Plus, refer to the
Smart Array 5i Plus Controller User Guide
4-22 HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide

HP ProLiant DL580 Generation 2 Specifications

General

Processor Socket	Socket 604
Storage Controller	Integrated Smart Array 6i Controller
Storage	SAS
Network	Integrated Dual Gigabit NICs
RAID Support	RAID 0, 1, 5
Expansion Slots	6 PCI-X slots
Power Supply	Redundant Power Supplies
Form Factor	4U Rack
Management	HP Integrated Lights-Out (iLO)
Operating System Support	Windows Server, Linux
Processor	Intel Xeon (up to 4 processors)
Drive Bays	Up to 6 hot-plug SCSI or SAS drives
