Removal and Replacement Procedures
Diagnostics Display Board and Lightpipe
To remove the removable media board:
1. Power down the server. Refer to “Power ing Down the Server” in this chapter.
2. Extend the server from the rack. Refer to “Extending the Server from the Rack” i n this
chapter.
3. Remove the rear access panel. Refer to “Opening and Removing the Rear Access Panel”
in this chapter.
4. Remove the front access panel. Refer to “Re moving the Front Access Panel” in this
chapter.
5. Remove the processor air baffle. Refer to “Processor A ir Baffle” in t his chapter.
6. Remove the front fan cage. Refer to “Front Fan Cage” in this chapter.
7. Remove the pass-through board. Refer to “Pass-Through Board” in this chapter.
8. Eject all devices from the slimline drive bays. Refer to “Slimline Dr ives” in this chapter.
9. Unplug the Power Button/LED cable. Refer to “Power Button/LED Assembly” in this
chapter.
10. Loosen the two thumbscrews holding the removable media board (1).
11. Slide the board to the rear of the unit until it stops, and then lift it up (2).

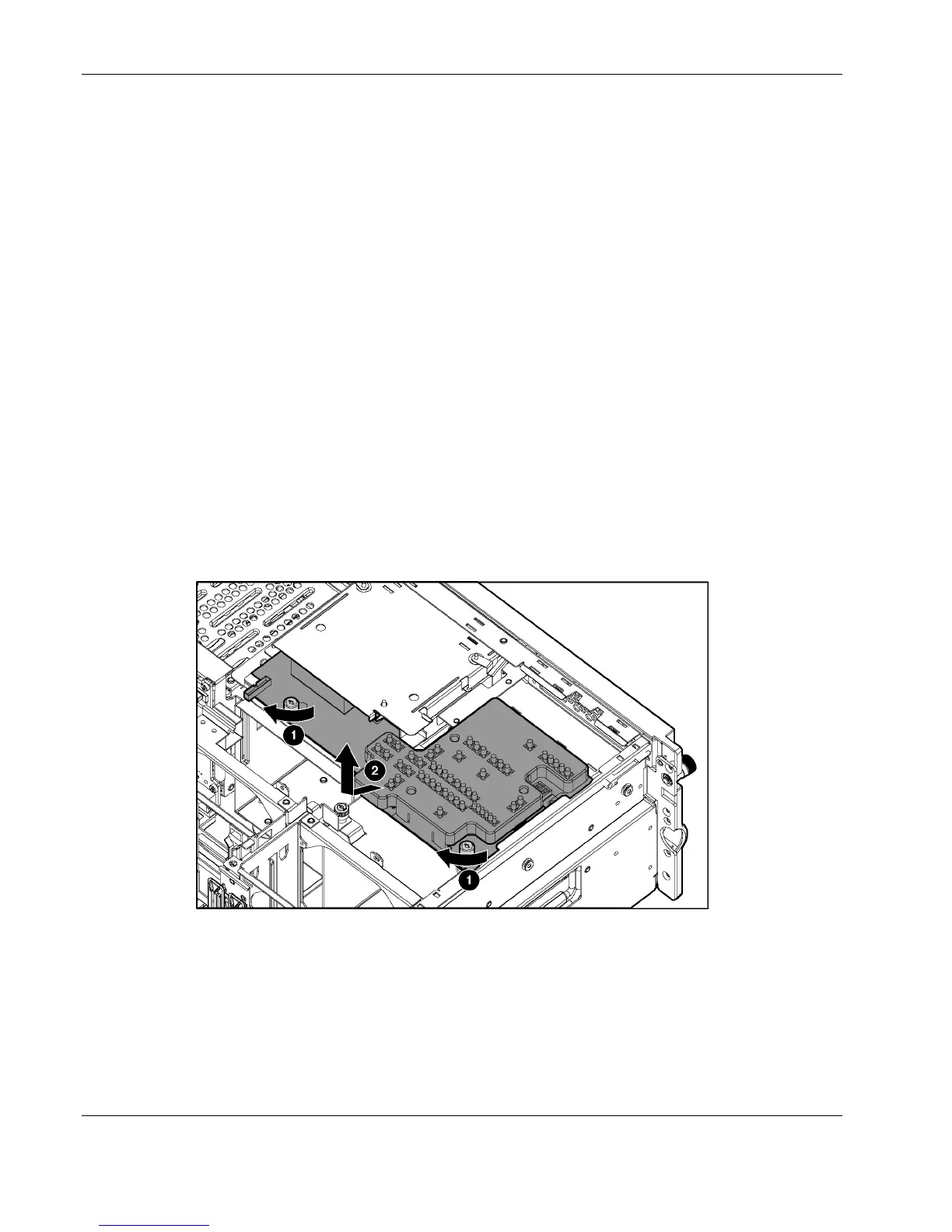

Figure 2-45: Removing the removable media board
12. Lift the board out gently, being careful of the slimline drive bay connector.
Reverse steps 1 through 12 to replace the removable media board.
2-58 HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide
