HP ProLiant DL580 Generation 2 User Manual

Removal and Replacement Procedures
Rear Fan Cage
To remove the rear fan cage:
1. Power down the server. Refer to “Power ing Down the Server” in this chapter.
2. Extend the server from the rack. Refer to “Extending the Rack from the Server” in this
chapter.
3. Open the rear access panel. Refer to “Op ening and Removing the Rear Access Panel” in
this chapter.
4. Remove the hot-plug fans in the rear fan cage. Refer to “Hot-Plug Fans” in this chapter.
5. Remove the processor air baffle. Refer to “Processor A ir Baffle” in t his chapter.
6. Remove the memory boards. Refer to “R emoving a Memory Board” in this ch apter.
7. Loosen the two thumbscrews that secure the rear fan cage to the chassis (1).
8. Remove the rear fan cage from the chassis (2).

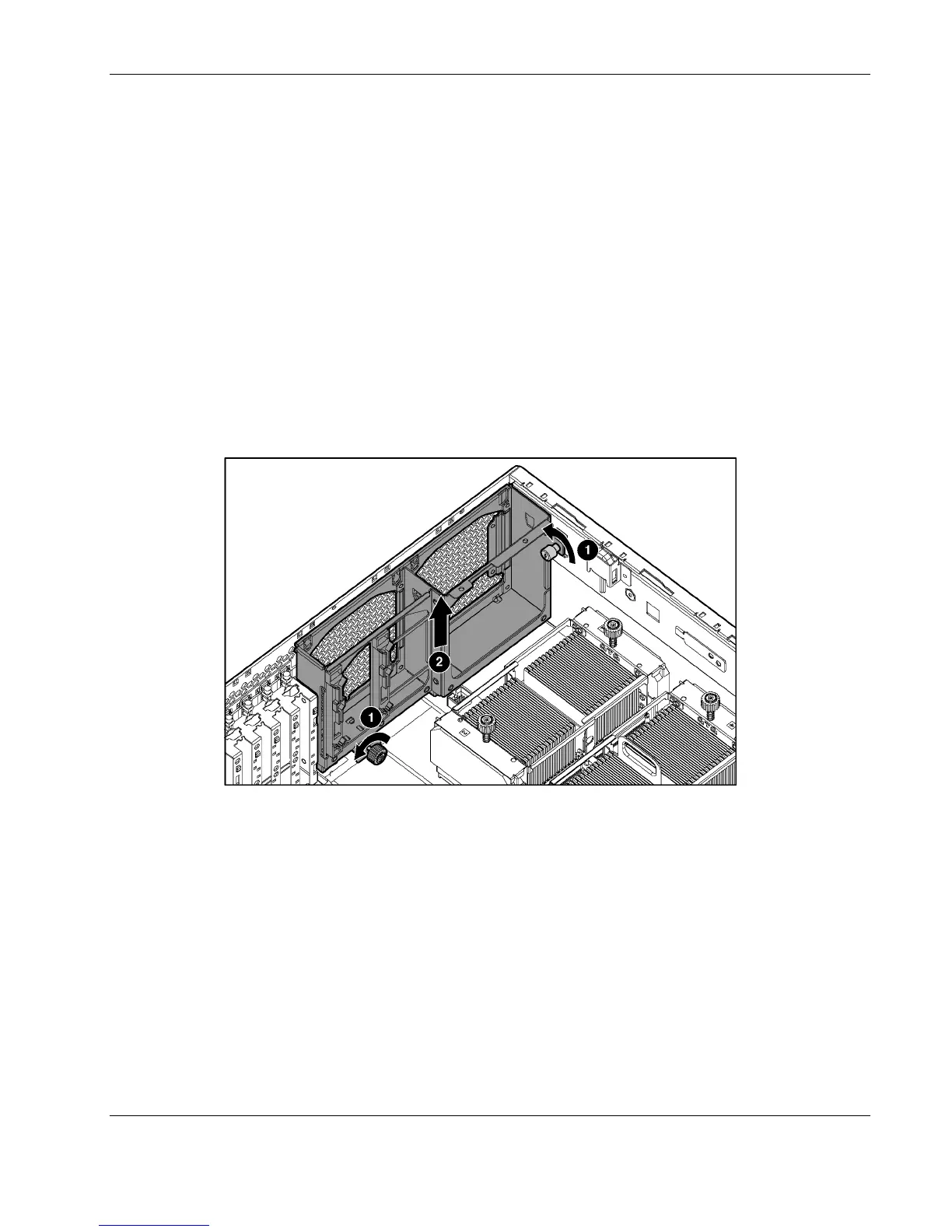

Figure 2-46: Removing the rear fan cage
Reverse steps 1 through 8 to replace the rear fan cage.
