Connectors, LEDs, and Switches
SCSI Backplane Board

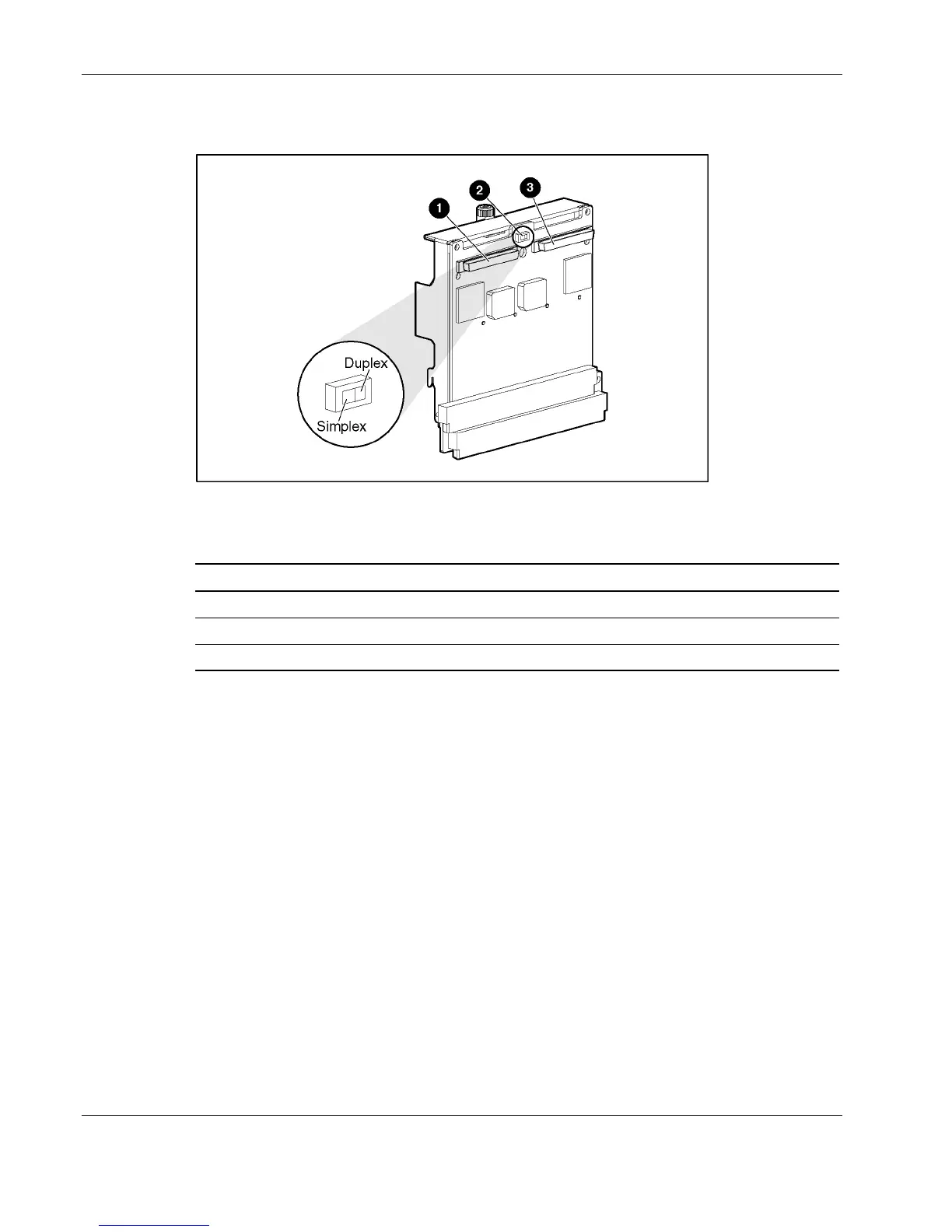

Figure 4-3: SCSI backplane board connectors
Table 4-3: SCSI Backplane Board Connectors
Item Description
1
SCSI channel B
2
SCSI simplex/duplex switch
3
SCSI channel A
4-4
HP ProLiant DL580 Generation 2 Server Mainte
nance and Service Guide
94
96
