HP ProLiant DL580 Generation 2 User Manual

Removal and Replacement Procedures
SCSI Cables
To remove the SCSI cables:
1. Power down the server. Refer to “Power ing Down the Server” in this chapter.
2. Extend the server from the rack. Refer to “Extending the Rack from the Server” in this
chapter.
3. Open the rear access panel. Refer to “Op ening and Removing the Rear Access Panel” in
this chapter.
4. Remove the front access panel. Refer to “Re moving the Front Access Panel” in this
chapter.
5. Disconnect the SCSI cables from the SCSI backplane (1).
6. Disconnect the SCSI cables from the PCI-X expansion boards (2).

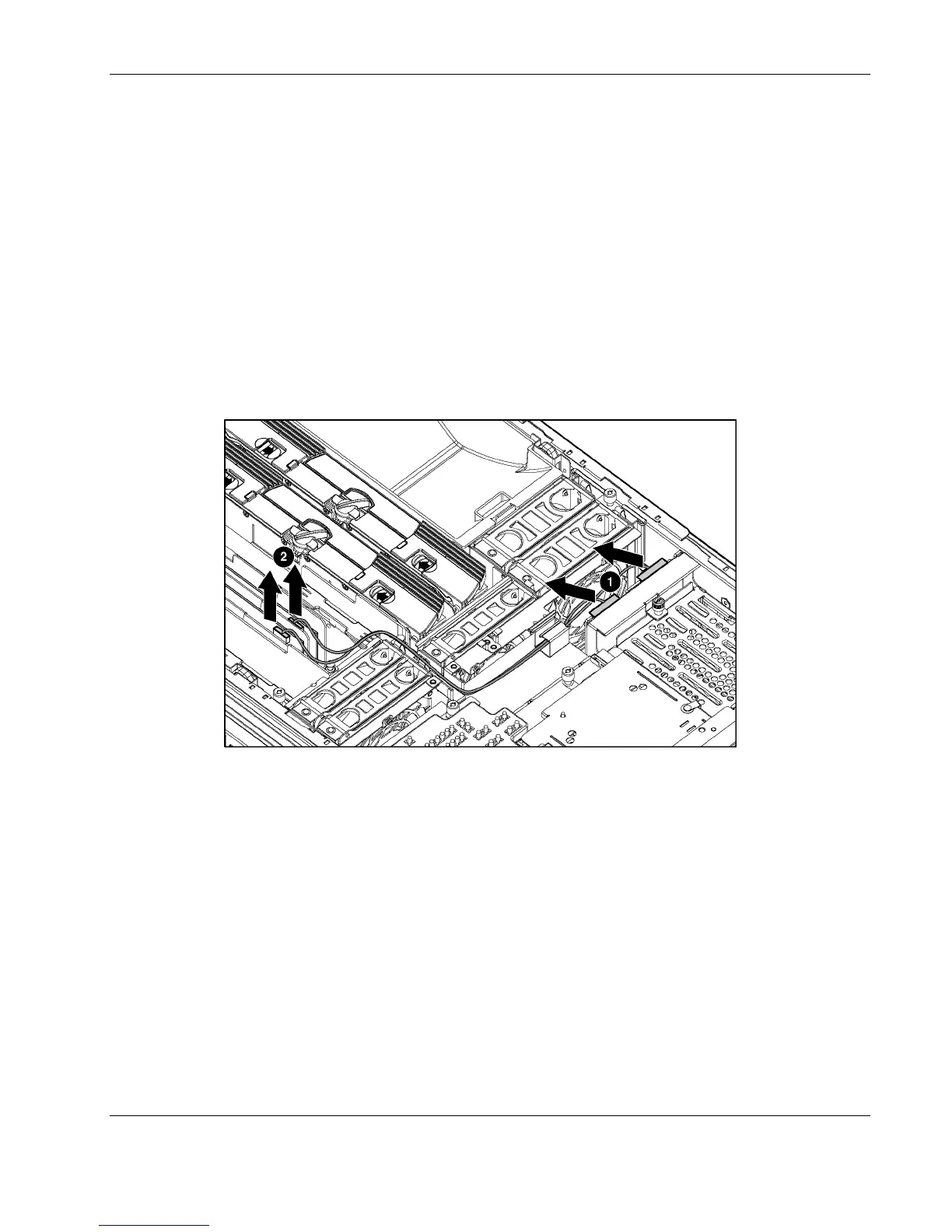

Figure 2-42: Disconnecting SCSI cables from the backplane and
expansion boards
Reverse steps 1 through 6 to replace or install the SCSI cables.
