Removal and Replacement Procedures
Installing a DIMM
To install a DIMM:
1. Align the keyed portion of the bottom edge of the DIMM with the tab in the DIMM slot.
IMPORTANT: The bottom edge of the DIMM is keyed to fit into the DIMM slot only one way.
2. Press the DIMM firmly into the slot (1).
3. Push the latches into place (2).

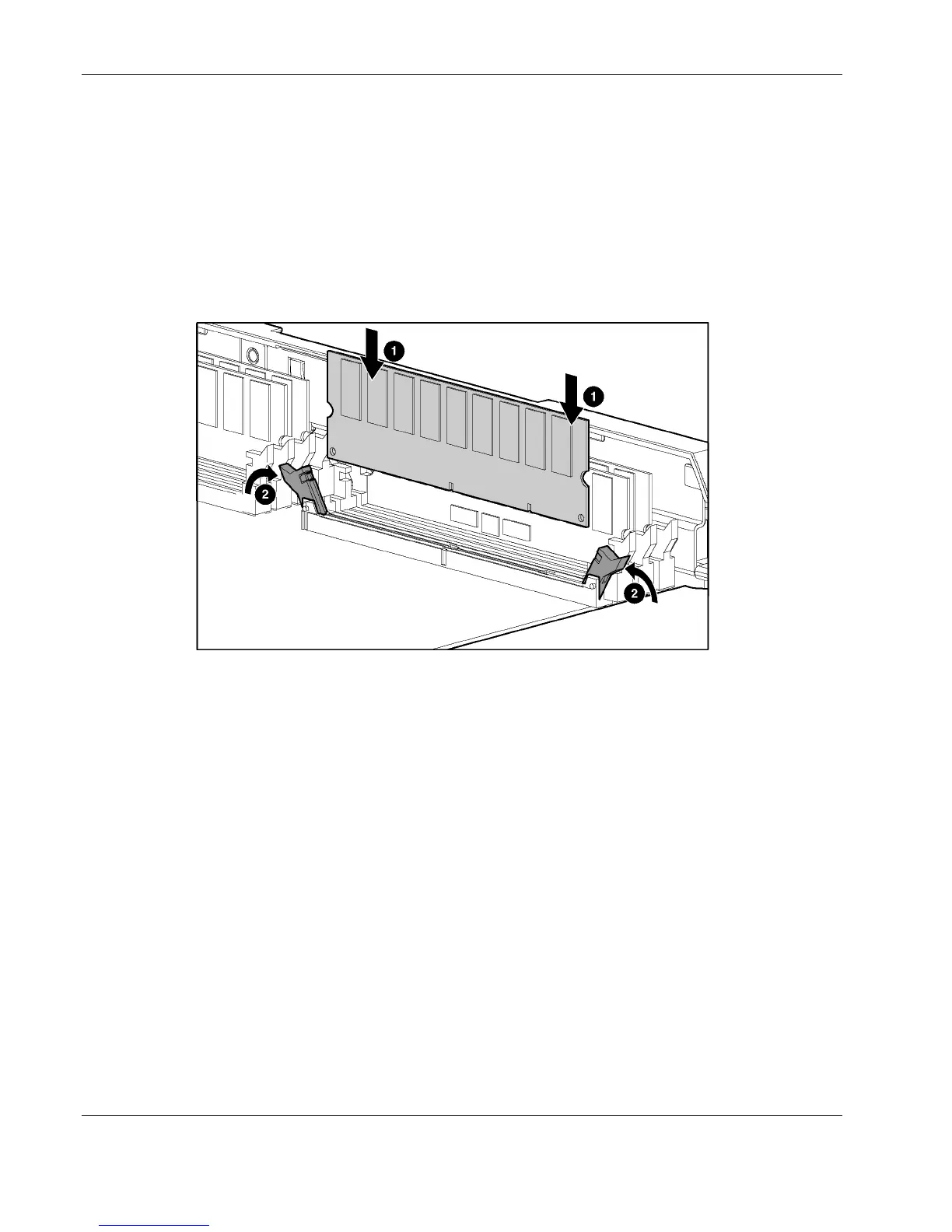

Figure 2-18: Installing a DIMM
2-26 HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide
