Removal and Replacement Procedures
Parts of the Memory Board
Use Figure 2-14 and Table 2-2 to identify the parts of the memory board.

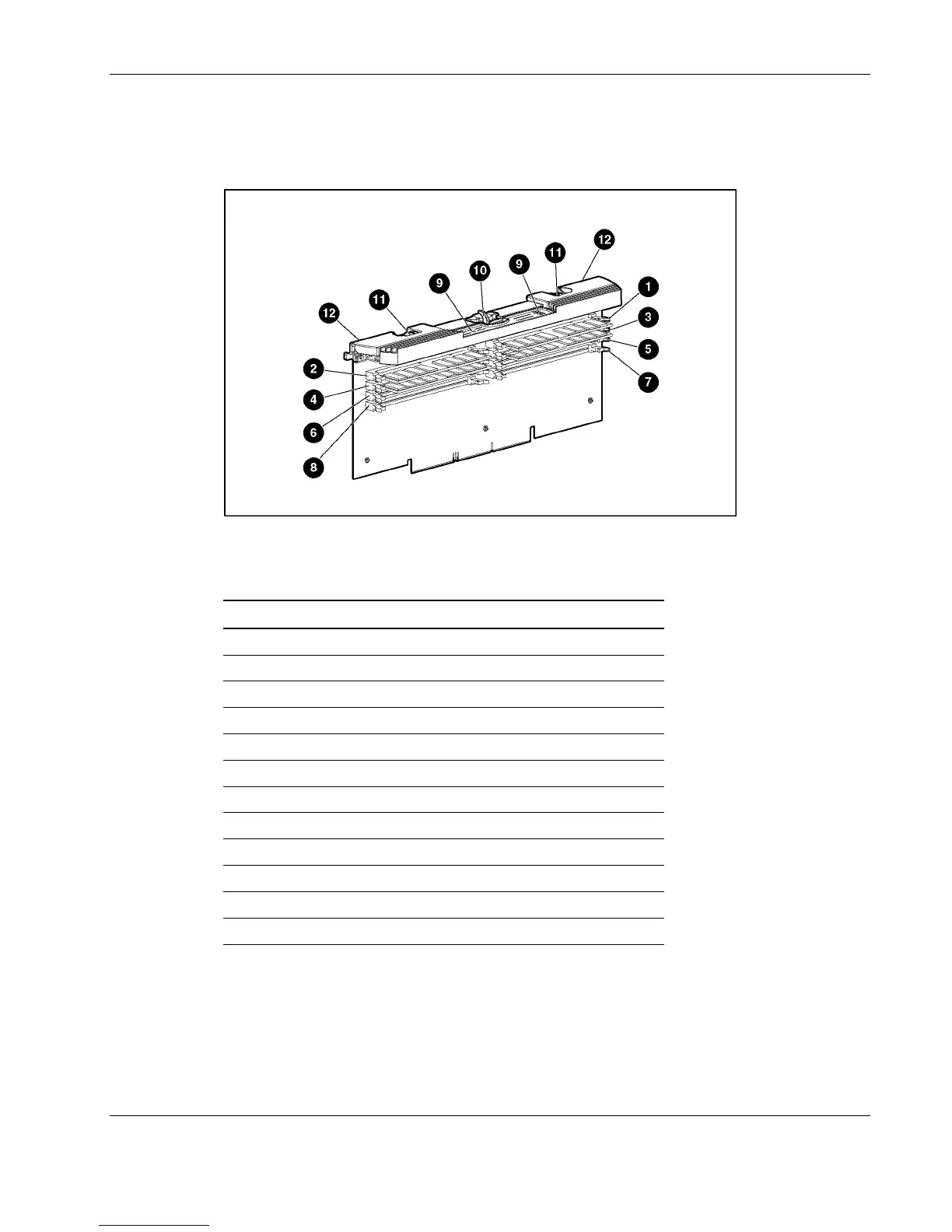

Figure 2-14: Parts of the memory board
Table 2-2: Parts of the Memory Board
Item Description
1 DIMM slot 1, bank A (populated)
2 DIMM slot 2, bank A (populated)
3 DIMM slot 3, bank A (populated)
4 DIMM slot 4, bank A (populated)
5 DIMM slot 5, bank B
6 DIMM slot 6, bank B
7 DIMM slot 7, bank B
8 DIMM slot 8, bank B
9 LEDs
10 Locking switch
11 Release latches
12 Ejector levers
HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide 2-17
