Connectors, LEDs, and Switches
4-30 HP ProLiant DL580 Generation 2 Server Maintenance and Service Guide
NC7770 PCI-X Gigabit Server Adapter Jumper
The NC7770 PCI-X Gigabit Server Adapter (PCA part number 284685-003) is equipped with
a jumper, which is used to write-protect the contents of the onboard serial EEPROM. The
board is shipped standard with the jumper in the Disable position. If a firmware update is
required, the firmware update software may request that you move the jumper to the Enable
position while the firmware is updated.

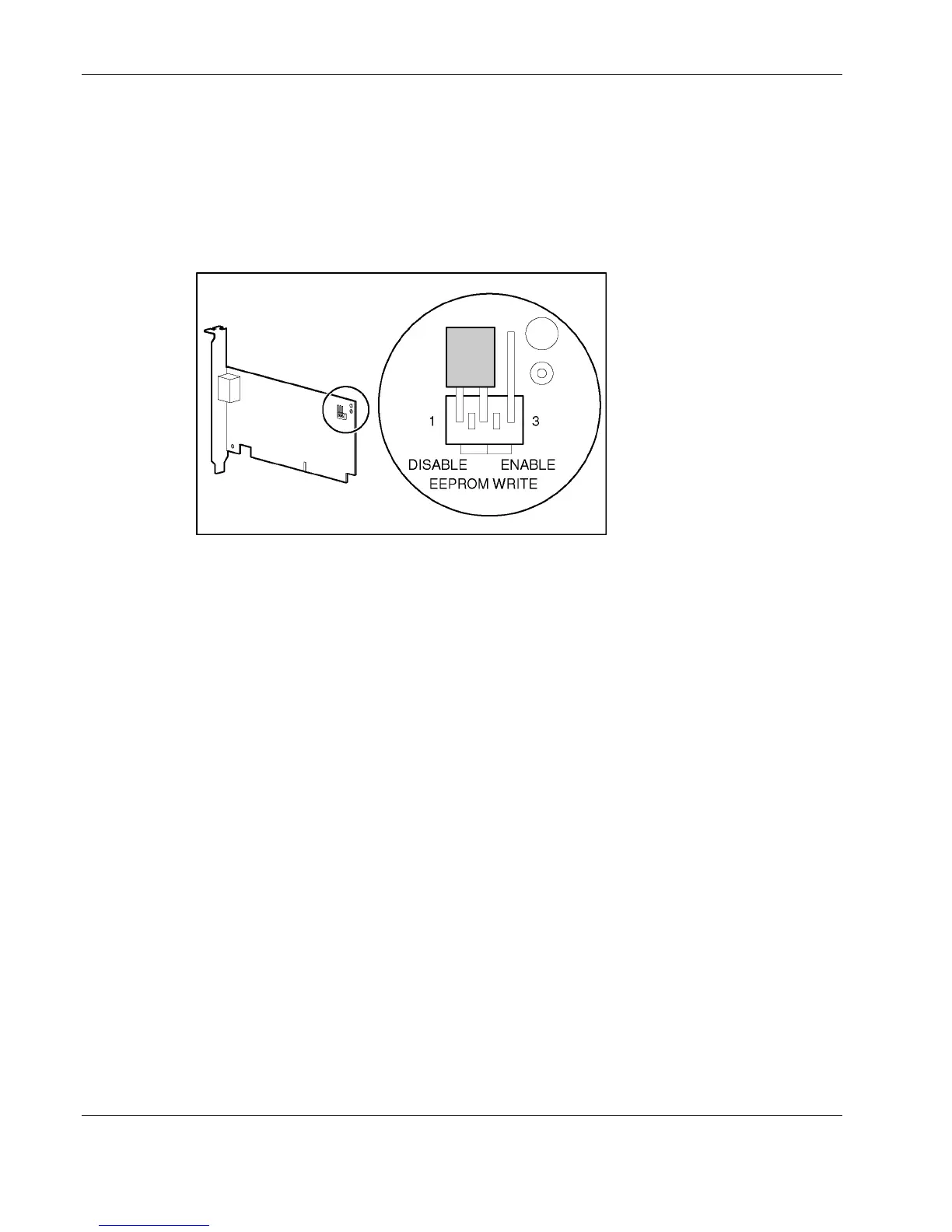

Figure 4-22: NC7770 PCI-X Gigabit Server Adapter jumper settings
