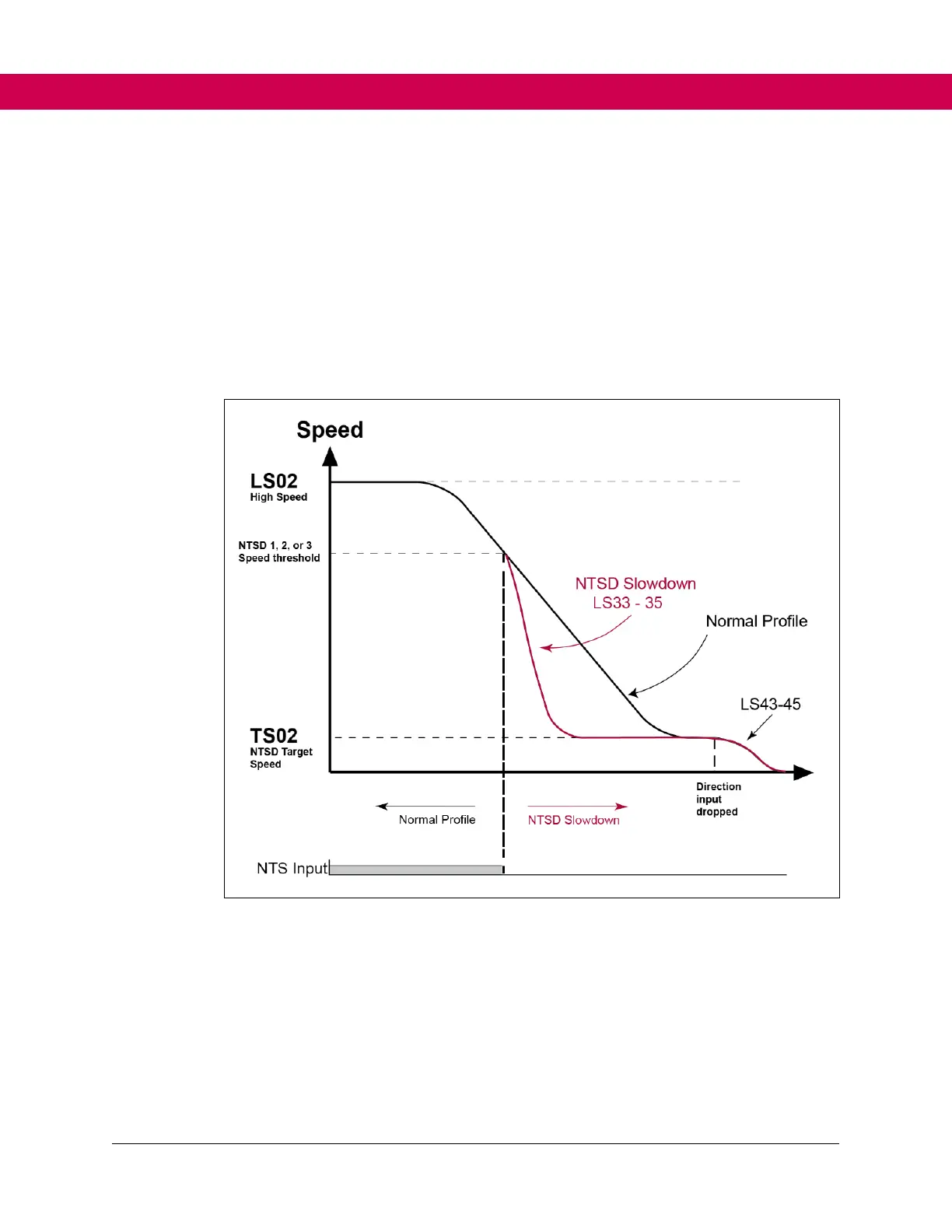

input is dropped then decelerate to zero speed. If the external (analog or serial) speed
command is less than the TS02 NTSD Target Speed, the drive will follow the external
command speed but continue to limit the maximum speed to the TS02 NTSD Target
Speed until the end of the run when the hardware direction command is dropped.
ELSE, IF the encoder speed remains LESS than the corresponding NTSD speed
threshold (TS03-08), the drive will continue as normal.
An output can be assigned (LO05-20) as NTSD Output, indicating when the NTS
slowdown is active. The output turns on when an NTS slowdown is initiated and remains
on until the direction is dropped or while the command speed is below the TS02 NTSD
Target Speed (analog or serial speed control).
