LCD Operator Navigation

can be scrolled through. Press clear (F4) to empty the fault log. See parameter US07

Date Time for setting the date/time.

When accessing the fault log, the banner in the first screen in Figure 15 will display as

the operator collects the faults to display. The faults will then be displayed for the

elevator(s) and the drive inverter in the remaining two screens in Figure 15.

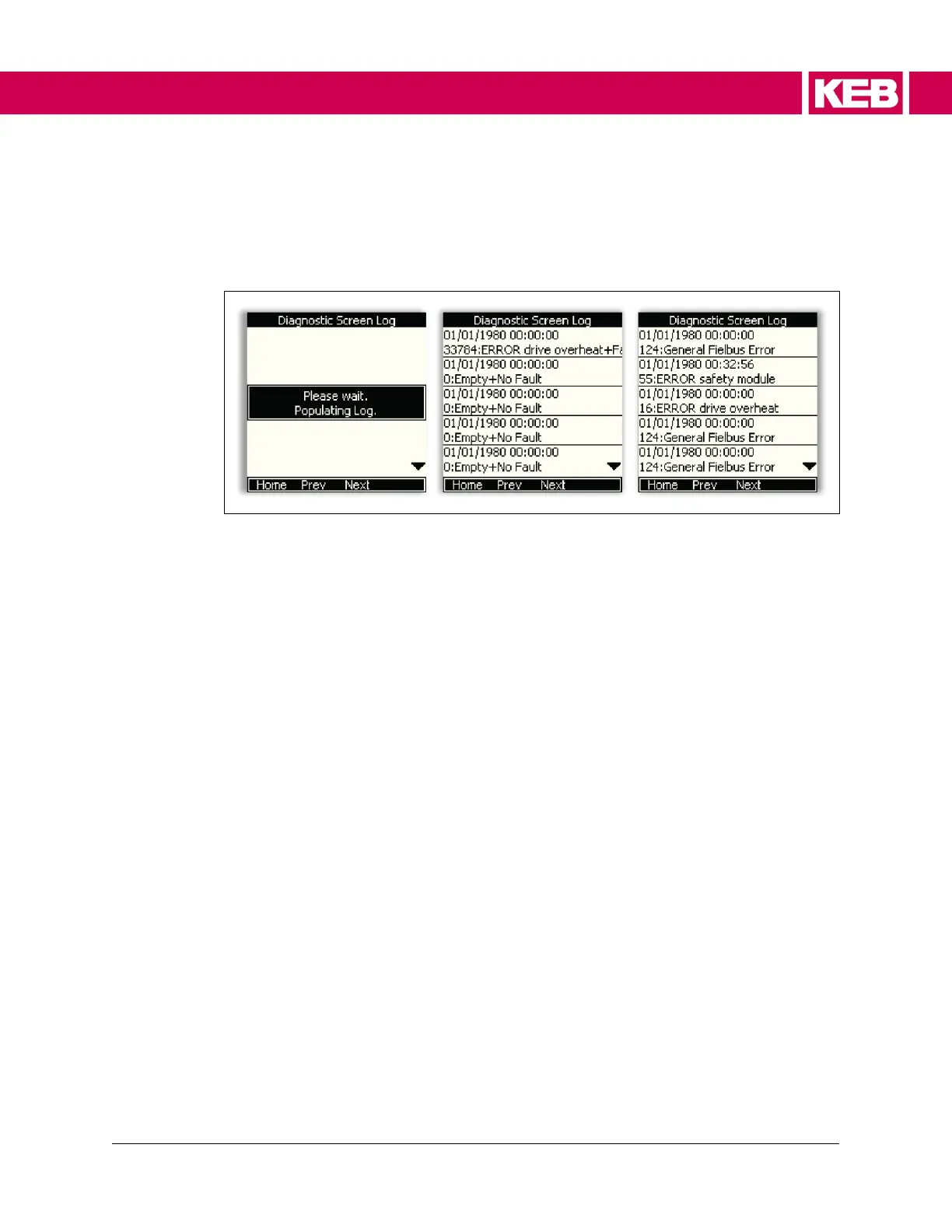

Figure 15. Diagnostic fault log screens
