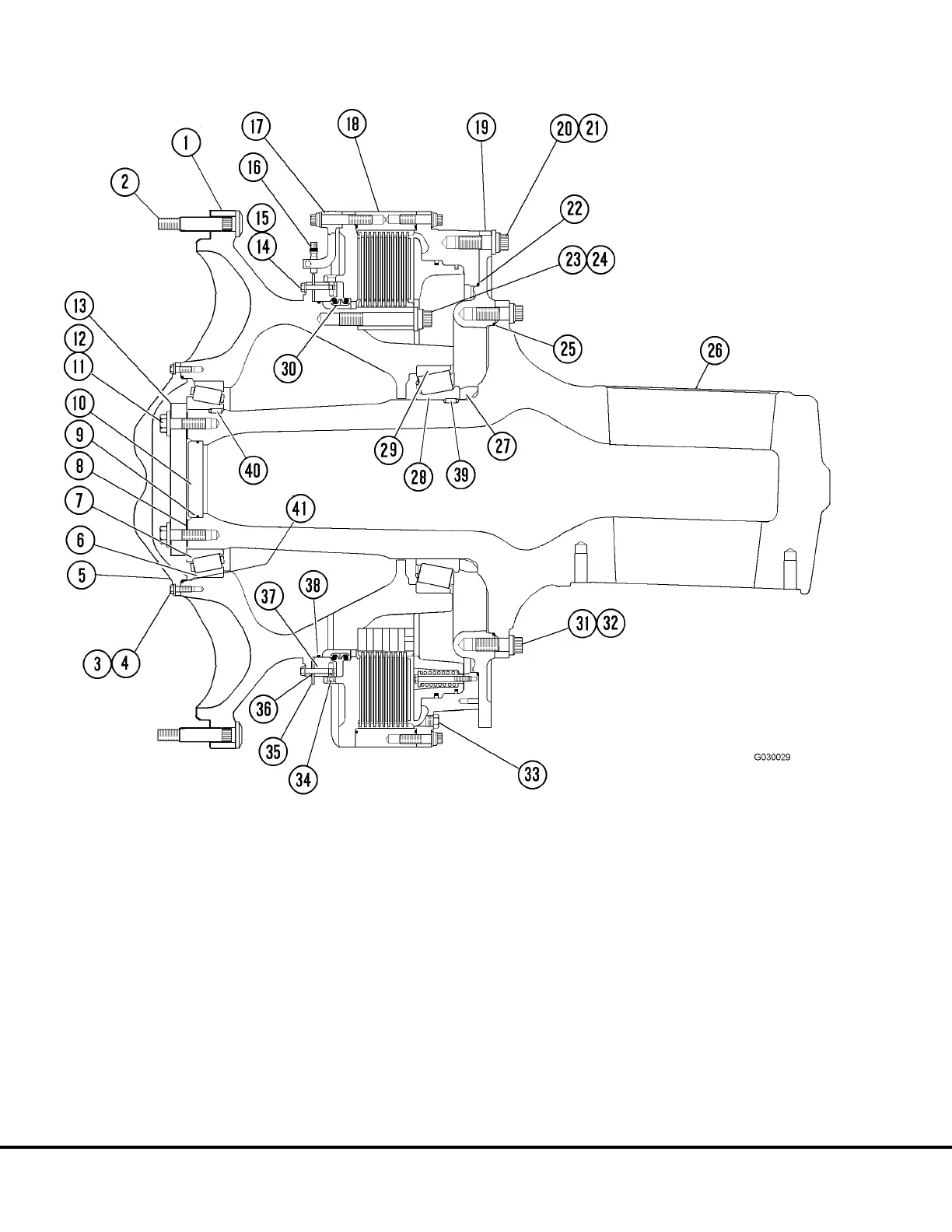

FIGURE 3-6. FRONT WHEEL SPINDLE, HUB & BRAKE ASSEMBLY
1. Wheel Hub
2. Stud
3. Capscrew
4. Washer
5. Cover
6. Outer Bearing Cup
7. Outer Bearing Cone
8. Shims
9. O-ring
10. Spindle Cap
11. Capscrew
12. Hardened Washer
13. Bearing Retainer
14. Capscrew
29. Inner Bearing Cup
30. Seal Assembly
31. Capscrew
32. Hardened Washer
33. Drain Plug
34. Socket Head Capscrew (Temporary)
35. Speed Sensor Gear
36. Shims
37. Seal Carrier
38. O-ring
39. Bearing Retainer Pin
40. Bearing Retainer Pin
41. O-ring
15. Washer
16. Speed Sensor
17. Sensor Bracket
18. Disc Brake Assembly
19. Brake Adaptor
20. Capscrew
21. Hardened Washer
22. O-ring
23. Capscrew
24. Hardened Washer
25. O-ring
26. Spindle
27. Bearing Spacer
28. Inner Bearing Cone
G3-6 Front Wheel Hub and Spindle G03017 02/01
