Installation
1. Insert wiper arm pivot shaft (5, Figure 3-2) through
hole in windshield frame and install nut (6) and
washer (7).
2. Install cap (4). Attach linkage to pivot arm by
pressing over retainer (8) and turning retainer
clockwise until locked.
3. Install wiper arm (1) in location noted during
removal and install spring washer (3) and retain-
ing nut (2). Tighten nut to 13 ft. lbs. (17 N.m)
torque.
4. Connect windshield washer hose.
5. Install access panel machine screws.
6. Verify proper operation and arc of wiper arm.
Reposition arm on pivot splines if blade contacts
windshield weatherstrip.
WINDSHIELD WASHER
Operation
The windshield washer, mounted on the right side of
the hydraulic components cabinet behind the cab, has
a 3.8 liter (1 gal) plastic reservoir (1, Figure 3-3) with
a 24 volt electric pump (2).
The washer is controlled by the windshield wiper
switch mounted on the instrument panel and is acti-
vated by pressing the knob. When the switch is acti-
vated, washing solution is pumped through the outlet
hose (3) and fed to a jet located in each of the wind-
shield wiper arms.
Service
If windshield washer maintenance is required, check
the strainer opening for obstructions and inspect the
hoses for damage. Check the voltage to the pump from
the control switch. If the pump is inoperable, replace it
with a new pump assembly.
Note: The pump is only available as an assembly and
cannot be repaired.

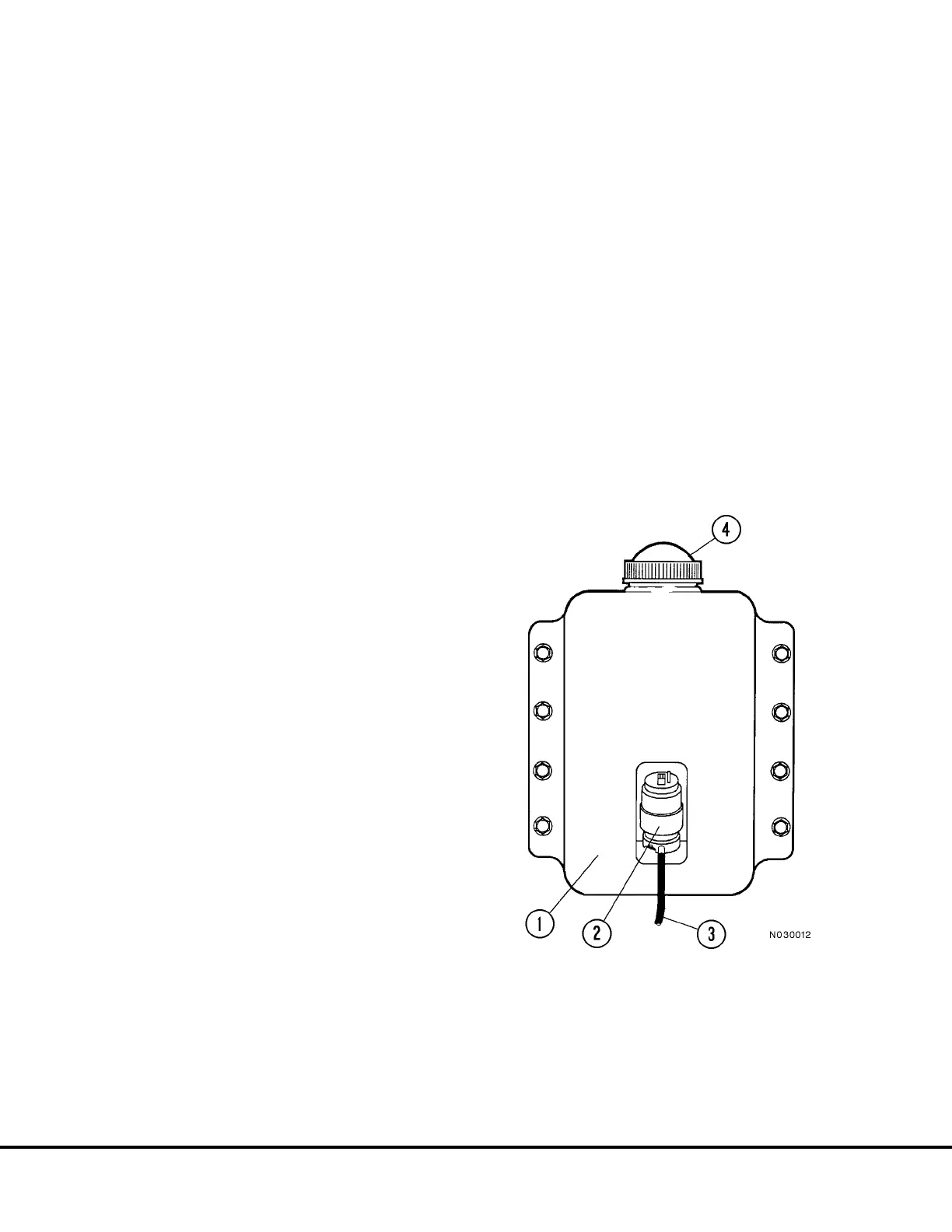

FIGURE 3-3. WINDSHIELD WASHER FLUID
RESERVOIR AND PUMP
1. Reservoir
2. Pump
3. Outlet Hose
4. Filler Cap
N3-2 Cab Components N03011 7/98
