Be sure the one channel (5, Figure 2-14) which is next
to the door latch passes to the inside of the latch
assembly (4).
14. Lower glass in frame and support it as seen in
Figure 2-9.
15. Reinstall window frame screws which holds it to
the door frame.
Screws along the bottom of window frame may be
shorter than the ones along the sides and top. These
screws must be used in this area to prevent the window
glass from being scratched or cracked.
See Figure 2-11.
16. Install trim material over the top of screws that
holds the window frame to the door. Use a flat
blade screwdriver to assist with installing the trim
material. See Figure 2-15. Be careful not to cut the
retainer lip on the trim material.
17. Install the 2 screws removed in step 8. Be sure the
rubber felt insert is back in place after installing the
screws.
18. Reinstall window regulator track bracket as seen
in Figure 2-7. Be sure nylon bushings and gaskets
are installed properly to prevent damage to the
glass.
19. Lift window glass in frame and install window
regulator roller track to bracket installed in step 18.
See Figure 2-8.
20. Holding window glass as seen in Figure 2-9 (a few
inches from the top.) install lower and upper regu-
lator rollers in their tracks. Start by moving door
panel (with window regulator) away from cab just
far enough to allow the rollers to enter their tracks.
Then with the rollers in the tracks slide the panel
toward the cab. Move the panel just far enough to
allow the upper regulator roller to go into the track
on the bottom of the glass.

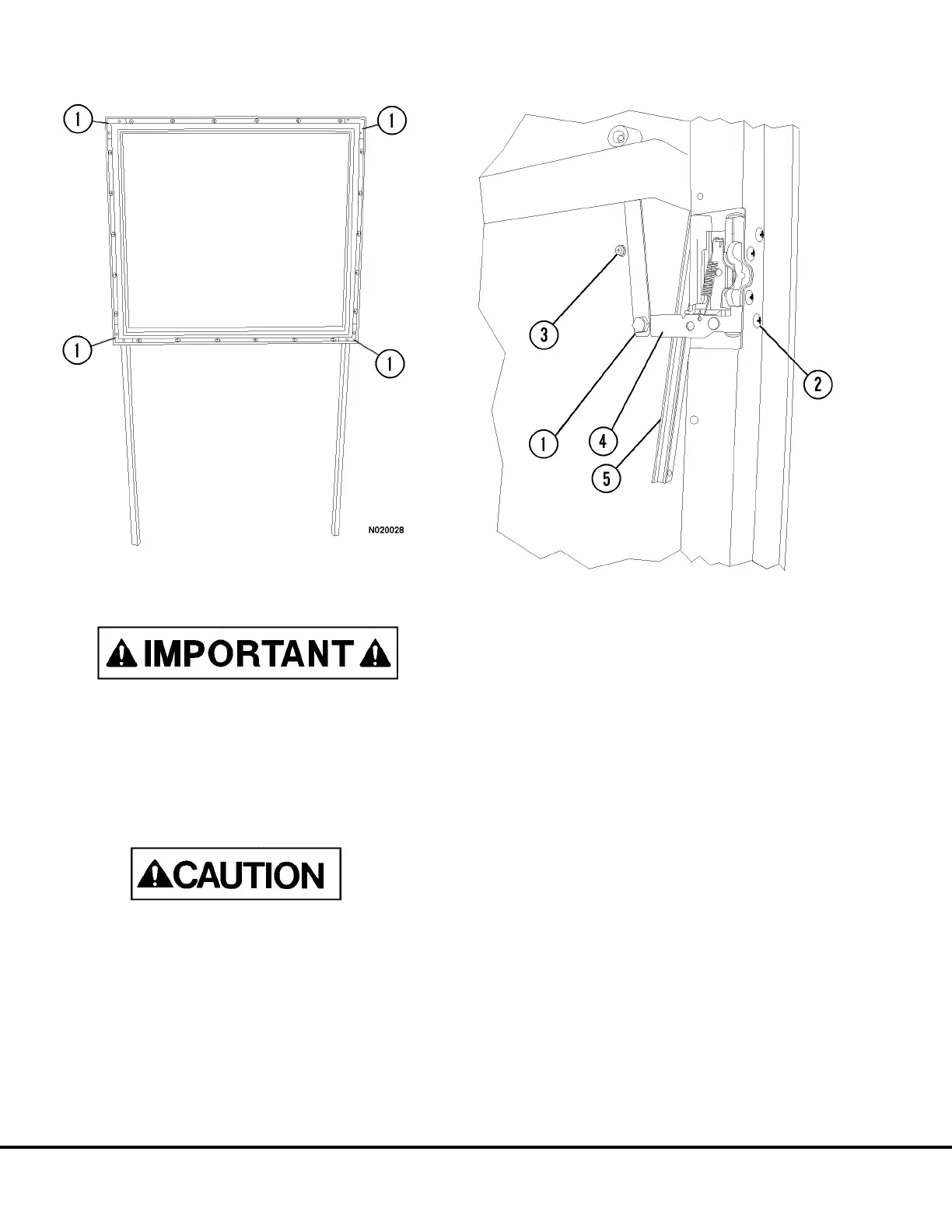

FIGURE 2-13.
1. "L" Shaped Brackets
FIGURE 2-14.
1. Capscrew & Nut 3. Mounting Screw -
2. Mounting Screws - Outside Door Handle
Latch 4. Latch Assembly
5. Window Frame
N2-10 Truck Cab N02015 4/00
