Lenze i55 Series User Manual

4.2 Mains connecon
4.2.1 1-phase mains connecon 120 V
4.2.1.1 Connecon plan
The connecon plan is valid for the inverters I55AExxxA.
Inverters I55AExxxA do not have an integrated RFI lter in the AC mains supply.
In order to meet the EMC requirements according to EN 61800−3, an external
EMC lter according to IEC EN 60939 must be used.
The user must verify that the conformity with EN 61800−3 is fullled.
X287 X286
POWERLINK
X277 X276
Modbus TCP
X267 X266
EtherNet/IP
OUT
X257
IN
X256
PROFINET
OUT
X247
IN
X246
EtherCAT
X226
PROFIBUS
TB
COM
TA
X216
Modbus RTU
CL
CG
CH
X216
CANopen
Safety STO
X1
SIA
GS
SIB
DC SELV PELV 24 V /
(+19.2 … +28.8 V)
"
1k ... 10k
0 ... 10 V
S1
DI3 DI4
100 mA
4.4k
+24 V +10 V
4.4k 4.4k 4.4k
4.4k
10 mA
Standard I/O
GND
1 DO
1 DI 2 DI 3 DI 4 DI 5 DI
24E
GND
1 AI 2 AI
10V
GND
1 AO
24V
24E
X3
24V
4.4k
7 DI
4.4k
2 AO
1 DI
2 DO
GND
GND
6 DI
Application I/O
X105
U
V
W
Rb1 Rb2
+
X109
T1 T2
""
M
3~
+
J
J
NC
NO
COM
X9
AC 240 V
3 A
F1
Q1
X100
L1
L2/N
1/ N/PE
90 V ... 132 VAC
45 Hz ... 65 Hz
+
+
F1
Q1
X100
L1
L2/N
1/N/ PE
90 V ... 132 VAC
45 Hz ... 65 Hz
PE
N
L2
L1
2/N/ PE
208 V ... 240 VAC
PE
N
L3
L2
L1
3/N/ PE
208 VAC

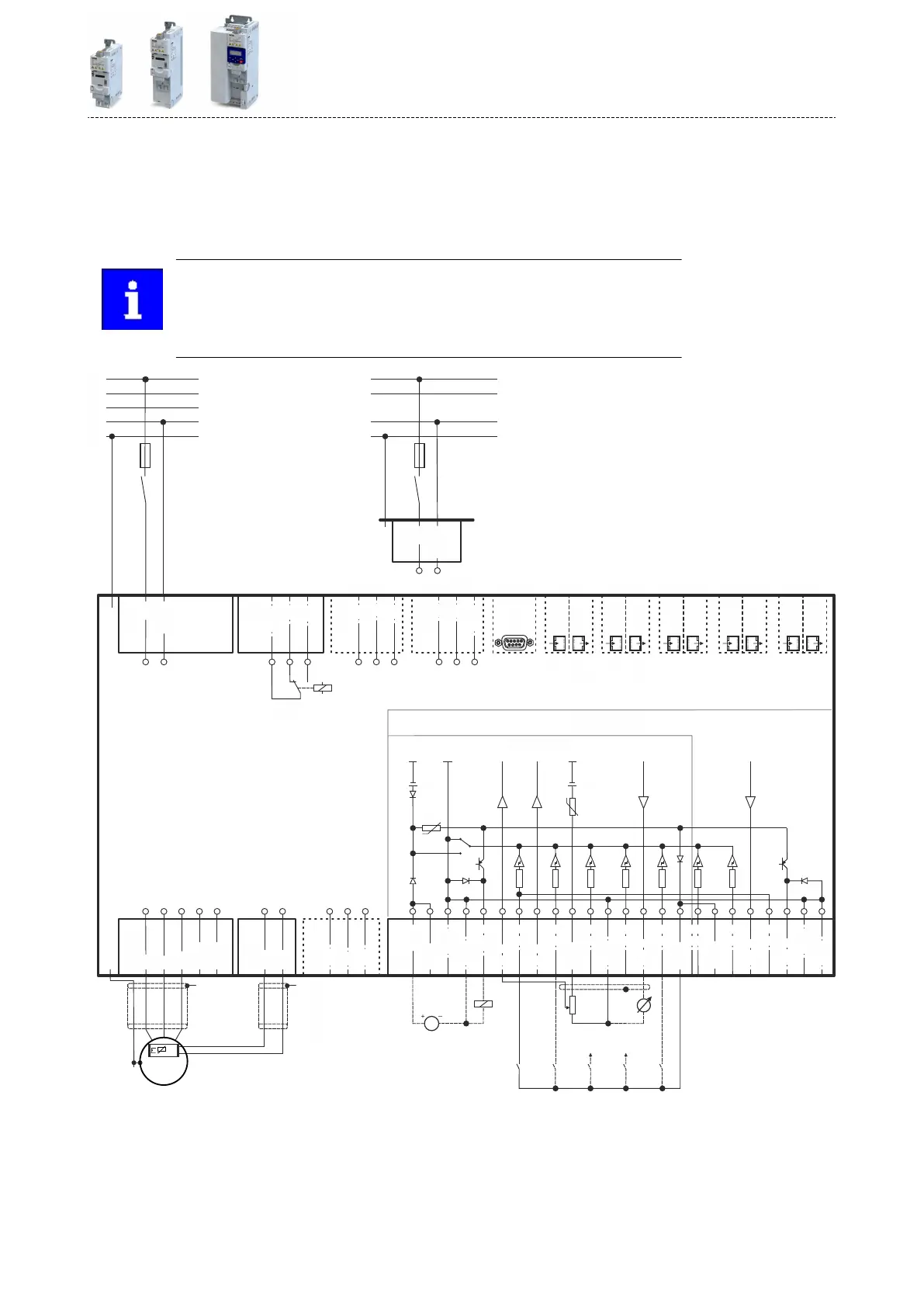

Fig. 1: Wiring example
S1 Start/Stop
Fx Fuses
Q1 Mains contactor
--- Dashed line = opons
Electrical installaon
Mains connecon
1-phase mains connecon 120 V
29
