120 Matrix SETU ATA211 V1 System Manual
Static Routing Table
• This feature helps you routing the calls between point to point sites (connected through MPLS, Frame
Relay etc) and to public internet at the same time.
• Thus you can call to ATA211 at different locations through Multiple Gateway application. Refer topic
“Multiple Gateway Application” in chapter 'Using SETU ATA211' for more details.
How to program?

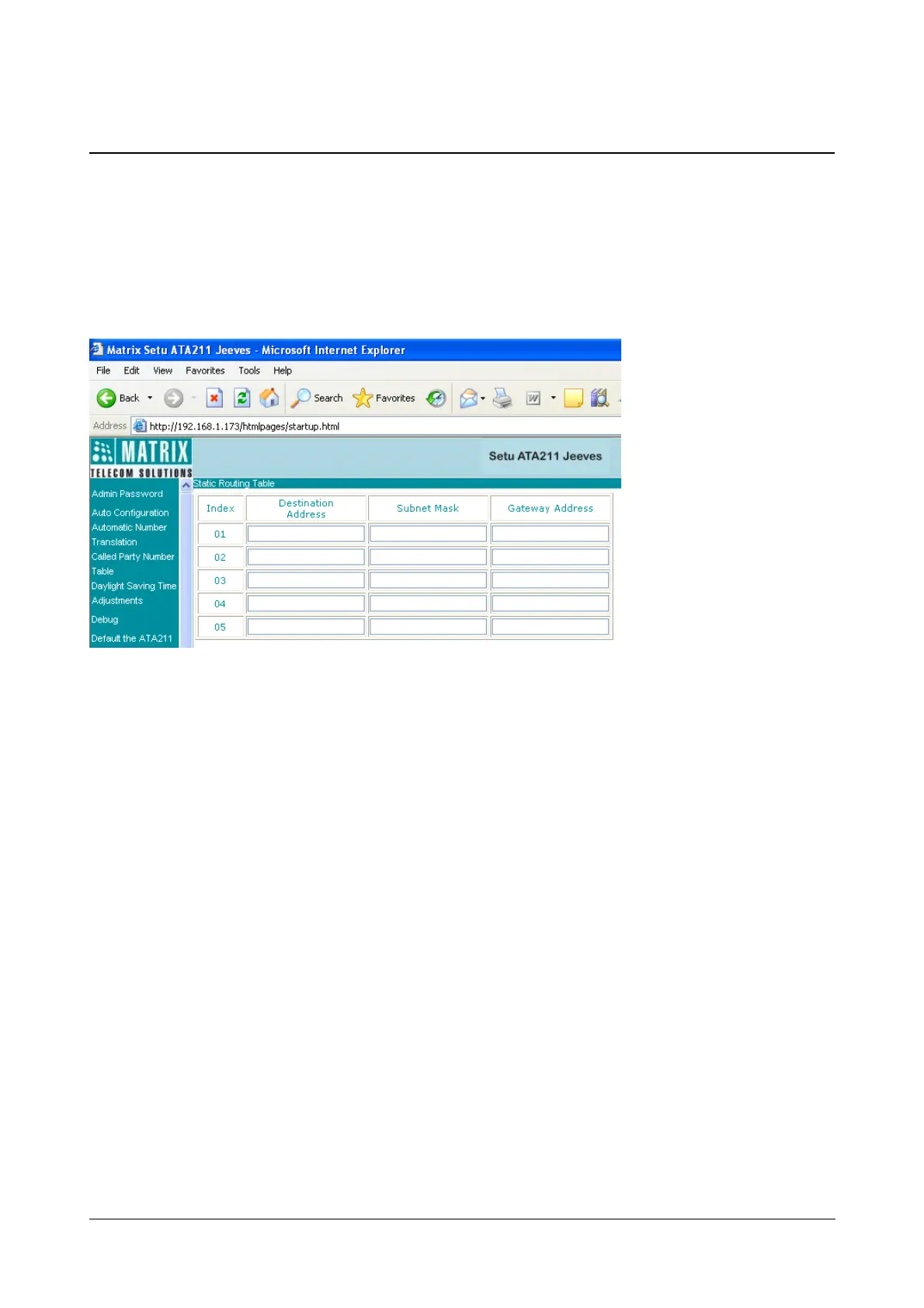

Open the Web Jeeves and click on 'Static Routing Table' link. (Only Admin can access this Webpage). The
Webpage will be as shown below:
'Static Routing Table' parameters can be configured as follow:
• Index: This is the number at which entry is done. Total 5 entries can be made in the Static Routing table
from 1 to 5.
• Destination Address: It is the network address where SIP device resides.
• Subnet Mask: It is the mask to be applied on destination address. It can be of maximum 15 characters.
• Gateway Address: It is the IP address of LAN interface of your router from where you want to route the
call for specific destination.
Relevant Topic:
1. “Using SETU ATA211” 35
