Matrix SETU ATA211 V1 System Manual 21
5. Login as 'Admin' into the Jeeves of ATA211 using the Admin Password (default 1234). You will reach the
Home Page.
6. Click on 'WAN port' link and program parameters such as IP address, Subnet mask, Gateway address,
DNS address etc.ISPs generally use PPPoE or DHCP protocols to provide internet services. Enable
relevant option and configure its parameters. If your ISP provides Static IP address, then select "Enable
Static IP" option and configure the relevant parameters.
For more details, please refer topic “WAN Port” in Configuring SETU ATA211.
7. Click on the link 'SIP Accounts' and enter the values of parameters such as Registrar Settings,
Authentication, Outbound Proxy, etc. in the respective fields as provided by your ITSP.
For more details on programming SIP Account parameters, please refer topic “SIP Accounts” in
Configuring SETU ATA211.
8. Ensure that the SIP Account gets registered to the SIP server by checking the 'Status' page in the Jeeves
and respective SIP LED on the product (only for SIP1 and SIP2).
9. The set up is ready to make and receive VoIP calls. All incoming calls will land on your phone connected to
the FXS port and the calls will be made from SIP account SIP1.
It is recommended to configure your broadband modem/router in 'Bridge Mode'. If doing so, configure the
IP address, Subnet Mask, Gateway Address and DNS address provided by your ISP in WAN port of
ATA211.
Business Application (In corporate Office)
Corporate Offices use ATA211 to make low-cost calls to their overseas customers, employees, suppliers, etc.

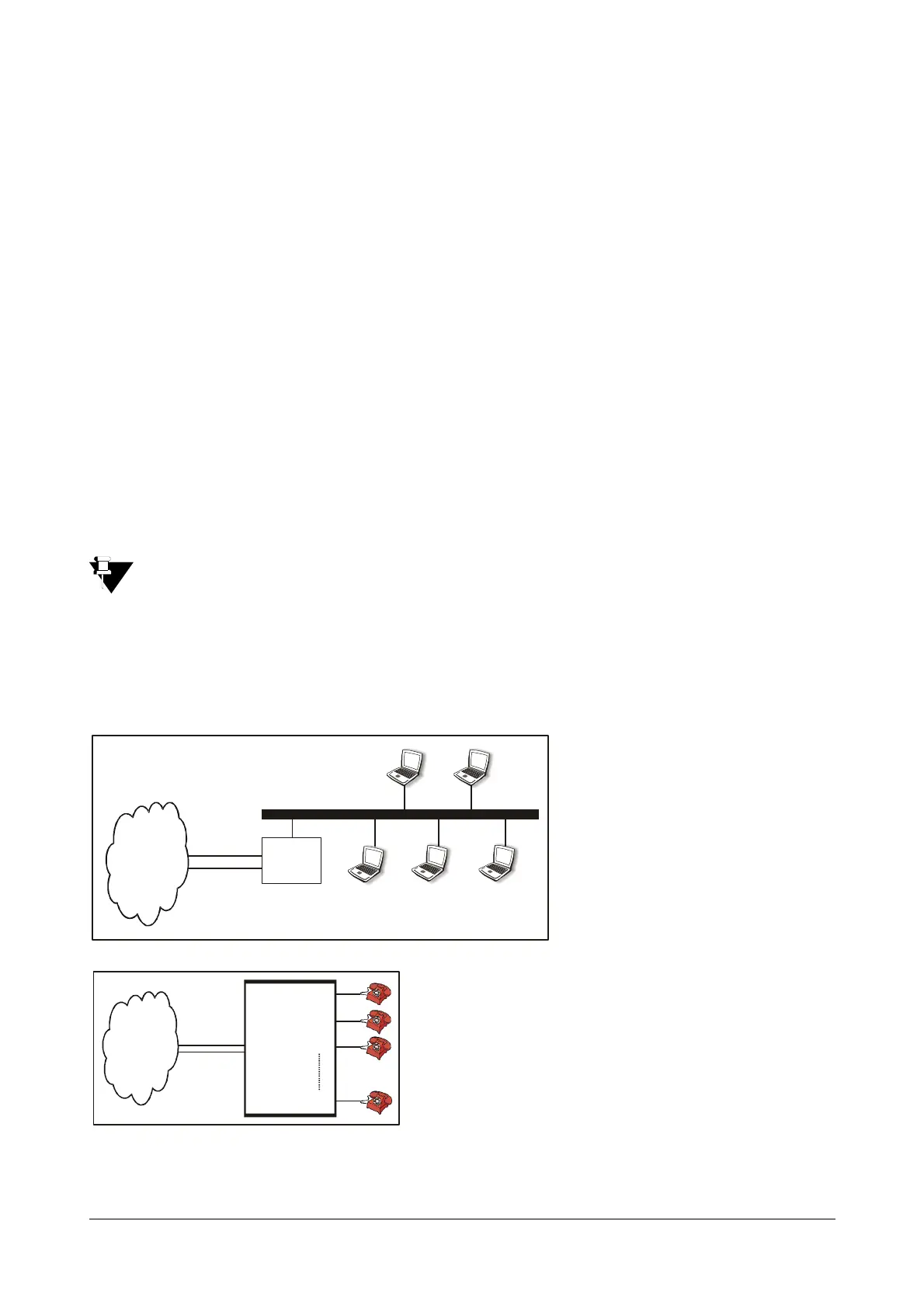

In Offices, set-up before purchasing ATA211 is generally as shown in the figure below:
How to connect?
After purchasing the ATA211, Corporate users should connect ATA211 as shown in the figure below:
PBX
FXO
FXS1
FXS2
FXS3
FXSn
To Next Page
