How to program?

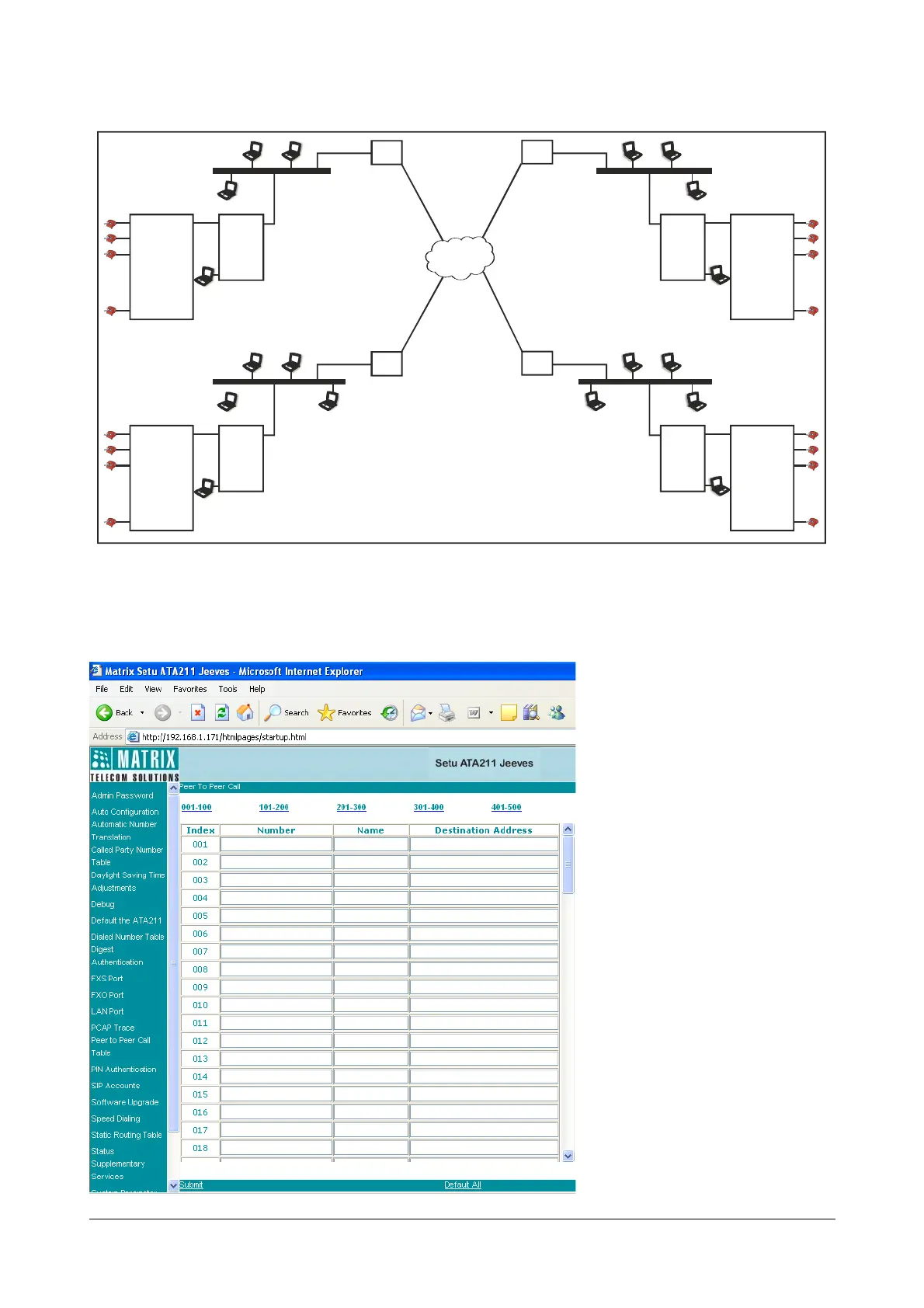

Open the Web Jeeves and click on the link 'Peer-to-Peer Call Table'. (Only Admin can access this Webpage). The
Webpage will be as shown below:
Broadband Modem,
Cable Modem, DSL
Modem, etc.
Broadband Modem,
Cable Modem, DSL
Modem, etc.
WAN
ATA 211
FXO1 FXSFXS1
FXS2
FXS3
FXSn
ATA211
FXS1WAN FXO 1 FXS1
FXS2
FXS3
FXSn
PBX PBX
IP Network
3001
4001
191.1.3.200 190.1.1.100
Broadband Modem,
Cable Modem, DSL
Modem, etc.
Broadband Modem,
Cable Modem, DSL
Modem, etc.
WAN
ATA 211
FXO1 FXSFXS1
FXS2
FXS3
FXSn
ATA211
FXSWAN FXO1 FXS1
FXS2
FXS3
FXSn
PBX PBX
2001
5001
192.1.3.5 191.1.1.1
LAN
LAN
LAN
LAN
Location C
Location D
Location A
Location B
