Matrix SETU ATA211 V1 System Manual 47
How to program?

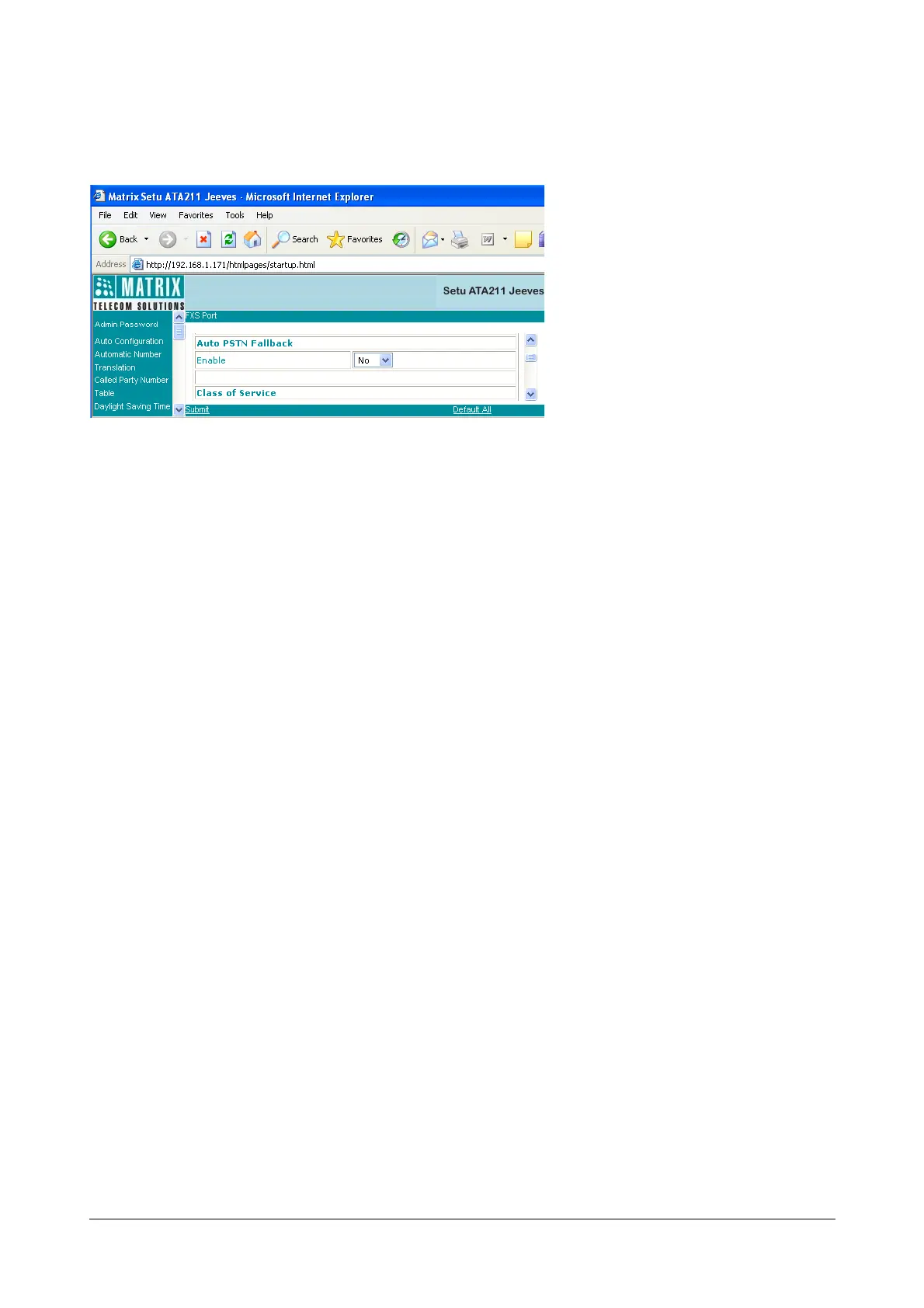

Open the Web Jeeves and click on 'FXS Port' link. (Only Admin can access this Webpage). The Webpage will be
as shown below:
• Auto PSTN Fallback: Select Yes to enable the feature or No to disable the feature. Default is disable.
Special Features
ATA211 supports following special features:
• Peer to Peer Calls
• Multi Stage Dialing through SIP and FXO
• Multiple Gateway Application
Peer to Peer Calls
Calls made between two IP clients without the intervention of a Proxy Server are defined as Peer-to-Peer Calls
(P2P calls). P2P call can be made from FXS and FXO port.
Generally, Peer-to-Peer application is used for making intra-offices calls. Maximum of 500 offices can be interfaced
using ATA211. Each office should possess ATA211 with a static IP address. The FXS port of ATA can be connected
to the FXO port of the PBX at each branch office as shown in the figure. The Peer-to-Peer table should be
programmed at each location with the number which is to be dialed and destination IP address of the gateway at
other locations, to be called.
